Toyota TIS not only can perform vehicle diagnosis,but also can program/register keys.I have written some topics about it.Here share a guide on how to register/program new key for Toyota Corolla EX 2011.



Preparations:

Toyota Corolla Key (with transponder chip) (Ask service before you making order)

Toyota TIS Techstream v12.20.024 Installation Guide

Latest Toyota TIS Techstream V13.10.019 Software Free Download

How to use Toyota TIS Techstream

Toyota TIS Techstream All Keys Programming for Toyota



Procedures:

Plug Toyota TIS Techstream Hareware (MINI VCI,VXDIAG) to vehicle

Build connection between vehicle and Toyota Corolla

Run Toyota TIS Techstream Software

Click “Connect to Vehicle”

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (1)

Select “TFTM Product,ZRE12” and “1005-”

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (2)

Select “Immobiliser”

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (3)

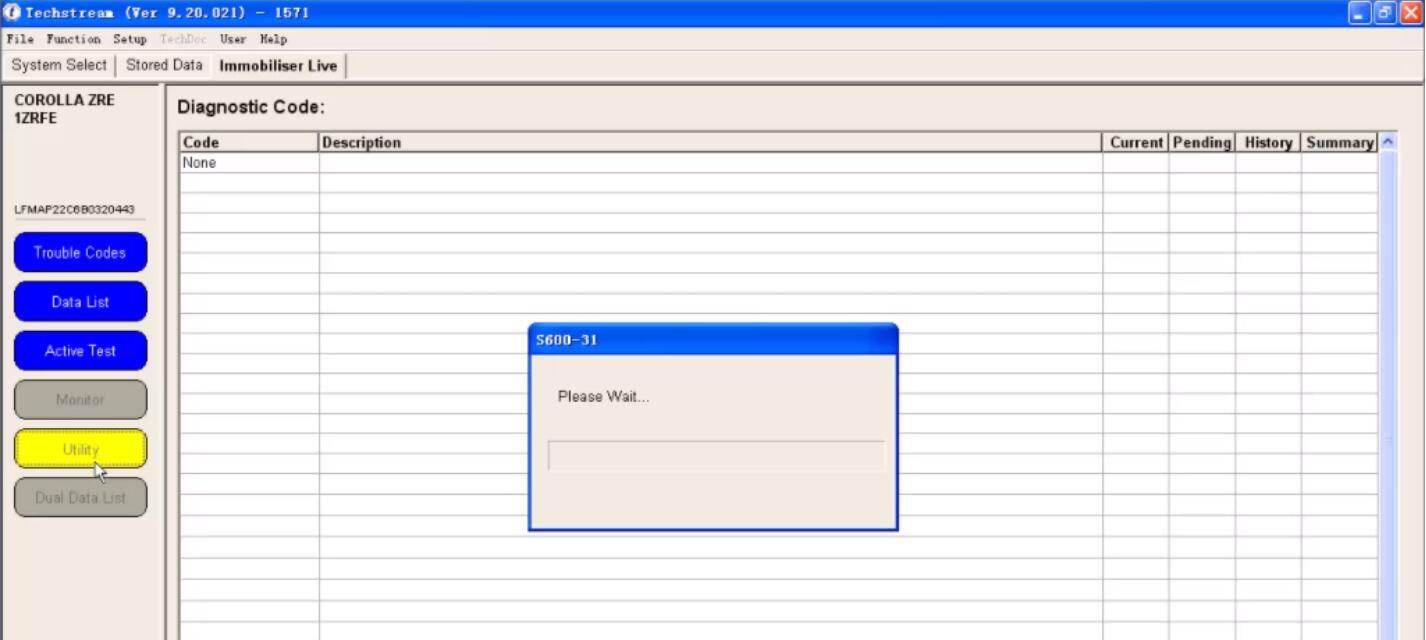

Select “Ultility”

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (4)

Select “Transponder Code Registration”

Note:

Use this function to register a new transponder code

This function registers a new transponder code by inserting a new key.

Please follow the prompt messages when you use this function

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (5)

Click arrow at lower right corner

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (6)

It will prompt with below massage:

Welcome to the transponder code registration wizard.

This function is use to register immobiliser keys

Please Next to proceed.

Click “Next” to continue

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (7)

Perform the follow operation:

*Remove the key from the key cylinder

*Insert the key back into the key cylinder

*Turn IG ON

Then click “Next” to continue

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (7)

Remove the master key from the key cylinder within 20 seconds,then press “Next”

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (9)

Insert the key you want to program within 10 seconds,then press next.

Toyota TIS Techstream RegisterPrograme New Key for Toyota Corolla EX 2011 (10)

Done!
