Toyota TIS Techstream All Keys Programming for Toyota

This article show a guide on how to perform all keys lost programming for Toyota via Toyota TIS Techstream.

The Immobilizer and Smart Key Reset is a feature that allows the registration of new keys when all master keys are lost. Once the system is reset, all previously registered keys will be erased . Follow the procedures in this bulletin to reset a vehicle Immobilizer or Smart Key system.



NOTE:

There are new security provisions required to obtain a Reset Pass-Code. It is critical that the instructions for this new process are reviewed BEFORE attempting to get a Pass-Code in the new system.



And the guide use the TIS Techstream Software version 9.10.037 or later is required.

Latest Toyota TIS Techstream V13.10.019 Software Free Download



Some Related Contents:

Toyota TIS Techstream Video+PDF Tutorial

How to use Toyota TIS Techstream

Toyota TIS Techstream v12.20.024 Installation Guide

Toyota TIS Techstream Program A New Key For Lexus ES330

Program New Key for Toyota Tundra by TIS Techstream



Toyota Vehicle Models Compatible(1998-2015):

4Runner, Avalon,Avalon HV, Camry,Camry HV, Corolla,Corolla BR-Prod, FJCruiser, Highlander,Highlander HV, LandCruiser, MR2 Spyder,Matrix, Prius, PriusC, Prius PHV, PriusV, RAV4, RAV4 EV,Sequoia, Sienna,Solara, Tacoma,Tundra, Venza, Yaris



Service Bulletin Overview

1.Review the vehicle application chart in the Technical Information System (TIS) to verify the vehicle is capable of being reset.

Refer to the Toyota I Scion Vehicle Support chart located on TIS, under Diagnostics -Immobilizer Reset – Reference Documents.

2.Review the new security authorization process and chose the option that best supports your dealer situation.

3.Follow the Techstream and TIS screenshots to obtain the Pass-Code needed to open registration for Immobilizer and Smart Key programming.



NOTE:

Some early ECM based Immobilizers cannot be reset using Techstream. For these vehicles, do the following: Identify the vehicle using the Toyota I Scion Vehicle Support noted above. Refer to the most recent PANT bulletin for instructions.



Section 1: Security Authorization for the Reset Pass-Code

An improved security measure has been implemented in TIS that requires a secondary approval by dealer management each time an Immobilizer or Smart Key Reset request is submitted. Please review the following flow chart and become familiar with the options outlined prior to attempting a vehicle reset.

Figure 1. Immobilizer Reset Process

Toyota TIS Techstream All Keys Programming for Toyota (1)

Key Points:

The Reset request can be submitted from the Techstream in the vehicle, or on TIS before the vehicle is available.A single management approval can be used multiple times for the same VIN as needed until the vehicle repair is completed.Each Reset attempt for the same VIN will generate a new Seed Number and a unique Pass-Code.The request and approval hand-off between technician and management is done on the TIS home page inbox accessed at each individual’s location (Techstream, office, etc.).



Main Steps:

1.Obtain Authorization

A.Technician Reset Approval Request

B.Manager Access TIS In-Box Message and Approve

2.Perform Reset with Techstream

A.Access Approval In-Box Message

B.Perform Reset at Vehicle



Variations:

1.Pre-approval before vehicle is accessed (as per above Main Steps)

2.Request and receive approval from Techstream after entering the reset utility

3.Repeated reset attempts with Techstream by accessing the single approval file



Approving Managers:

Once the Pass-Code Request form has been completed an approval request will be sent to all approving managers. Dealership personnel with the following job titles in “Staffmaster” are granted Pass-Code approval capability.



Dealer Principal, General Manager, Service Manager, Service Director, Service/Parts Director, Parts Manager, Parts Director, Customer Relations Manager, Customer Satisfaction Manager, Shop Foreman,Diagnostic Specialist, Team Leader Each dealer must have at least 2 enrolled managers in order to accessany Pass-Codes.



NOTE:

Once a Reset is completed, it may be necessary to enter an “Immobilizer Key Registration” or a “Smart Key Code Registration” utility to program the new keys. Early Immobilizer systems may be ready to accept keys immediately after the Reset if the security light flashes a 2-digit code (such as 21 or 22). Refer to the applicable Repair Manual for details.

Please review the Techstream and TIS screenshots in this bulletin to become familiar with the new management authorization process flow.



Section 2: Reset Approval Request (TIS Pre-Approval)

1.Open TIS and enter the Diagnostics and Immobilizer Reset tabs. Login using your password.

Figure 2.

Toyota TIS Techstream All Keys Programming for Toyota (2)

2.Enter the information requested , check all 4 boxes below Positive Identification Policy, then click Next.

Figure 3.

Toyota TIS Techstream All Keys Programming for Toyota (3)

3.A minimum of two managers are required to be selected. Once two or more managers are selected, click Submit to continue. Each request is required to be approved by one manager.Once manager approval is received , continue to Section 5, “Receipt of Pass-Code.”

Figure 4.

Toyota TIS Techstream All Keys Programming for Toyota (4)

Section 3: Techstream Reset Utility (With Request)

1.Connect Techstream to the vehicle.

Figure 5.

Toyota TIS Techstream All Keys Programming for Toyota (5)

2.Choose the appropriate vehicle model and year if the ignition cannot be turned on and the

information does not automatically populate.

Figure 6.

Toyota TIS Techstream All Keys Programming for Toyota (6)

3.Choose the Immobilizer or Smart Key system as needed.

Figure 7.

Toyota TIS Techstream All Keys Programming for Toyota (7)

4.Choose the Immobilizer or Smart Code Reset utility.

Figure 8.

Toyota TIS Techstream All Keys Programming for Toyota (8)

5.Enter the VIN if prompted.

Figure 9.

Toyota TIS Techstream All Keys Programming for Toyota (9)

6.Techstream will generate a Seed Number. Click Get Pass-Code.

Figure 10.

Toyota TIS Techstream All Keys Programming for Toyota (10)

7.Click Send to connect to TIS.

Figure 11 .

Toyota TIS Techstream All Keys Programming for Toyota (11)

NOTE:

If there is already a management approval file for this VIN, DO NOT follow the next 3 steps to resubmit a request. Open the approval file in your TIS inbox and enter the most recent Seed Number to get the Pass-Code (as outlined in Section 5, “Receipt of Pass-Code’). Then go to Section 6, ” Techstream Reset Utility (Reset Initiated).”For repeated Reset attempts after the approval is completed, follow Sect ion 3, ” Techstream Reset Utility (With Request),” and Section 6, ” Techstream Reset Utility (Reset Initiated),” using the same management approval file.



8.When the TIS window opens, enter your password to login.

Figure 12.

Toyota TIS Techstream All Keys Programming for Toyota (12)

9.Fill in the required information and select Next.

Figure 13.

Toyota TIS Techstream All Keys Programming for Toyota (13)

10.A minimum of two managers are required to be selected. Once two or more managers are selected , click Submit to continue. Each request is required to be approved by one manager.Once manager approval is received , continue to Section 5, “Receipt of Pass-Code.”

Figure 14.

Toyota TIS Techstream All Keys Programming for Toyota (14)

Section 4: Manager Approval (TIS)

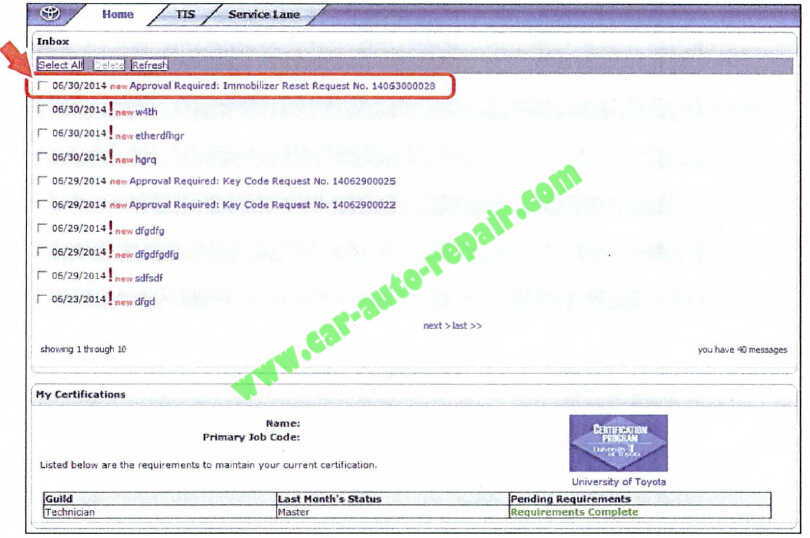

1.Once the request has been submitted, one of the authorized dealer managers will locate the technician ‘s request in their TIS home page inbox.The manager clicks the title to open the Request.

Figure 15.

Toyota TIS Techstream All Keys Programming for Toyota (15)

2.The manager checks the 3 boxes under Request Approval Policy, then selects Approve to send the approval to the technician.

Figure 16.

Toyota TIS Techstream All Keys Programming for Toyota (16)

Section 5: Receipt of Pass-Code (TIS)

1.Once approved by management, the technician opens his TIS inbox and locates the Reset request. The technician clicks the title to open the Approval.

Figure 17

Toyota TIS Techstream All Keys Programming for Toyota (17)

NOTE:

It is recommended to retrieve the Pass-Code from the Techstream connected to the vehicle as the Seed Number and Pass-Code work together.Once approved by management, multiple resets can be performed for a single VIN.Each attempt will create a new Seed Number and resultant Pass-Code.



2.Once opened, the technician clicks the Immobilizer Reset link to continue.

Figure 18.

Toyota TIS Techstream All Keys Programming for Toyota (18)

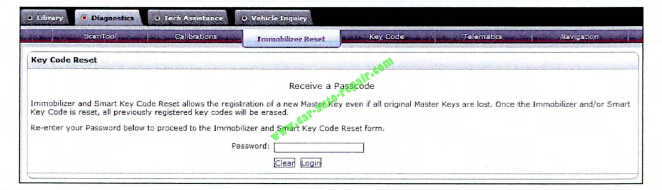

3.At this point, it is necessary for the technician to re-enter their password to login again.

Figure 19.

Toyota TIS Techstream All Keys Programming for Toyota (19)

4.The technician must enter the Techstream software version and paste in the Seed Number from Techstream, then click Next.

Figure 20.

Toyota TIS Techstream All Keys Programming for Toyota (20)

5.The Pass-Code will then be provided as shown. Continue to Section 6, “Techstream Reset Utility (Reset Initiated),” for instructions on entering the Pass-Code to initiate the Reset.

Figure 21 .

Toyota TIS Techstream All Keys Programming for Toyota (21)

Section 6: Techstream Reset Utility (Reset Initiated)

The Reset can be initiated once the management approval reply is available in the TIS home page

inbox. With this approval file, multiple Seed Numbers can be used for as many attempts as needed to repair the vehicle.



NOTE

If you have received the file from management in your TIS in box that shows the approval status for the given VIN, do NOT resubmit for another approval for this vehicle. It will not be necessary.Continue to open the approval file and enter a new Seed Number to get the unique Pass-Code for each attempt.



1.After retrieving the Pass-Code from the manager approval process in Section 4 (“Manager Approval’) and Section 5 (“Receipt of Pass-Code”), enter the Pass-Code in Techstream and click Next.

Figure 22

Toyota TIS Techstream All Keys Programming for Toyota (22)

2.Click Yes to start the process.

Figure 23.

Toyota TIS Techstream All Keys Programming for Toyota (23) Toyota TIS Techstream All Keys Programming for Toyota (24)

3.Once completed , it may be necessary to enter either the Immobilizer Key Registration or Smart Code Registration utility to program keys.

Figure 25.

Toyota TIS Techstream All Keys Programming for Toyota (25)

NOTE:

Some early Immobilizer systems go directly into programming mode. This can be confirmed by the security light blinking a 2-digit code. Refer to the applicable Repair Manual for details.
