Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011

This post show a guide on how to use Toyota TIS Techstream to Diagnose for Toyota Corolla EX 2011,and I have write many topics about Toyota TIS Techstream test cases before,if you are a freshman on Toyota TIS Techstream,you would better to read them before.



Preparations:

How to use Toyota TIS Techstream

Toyota TIS Techstream v12.20.024 Installation Guide

Latest Toyota TIS Techstream V13.10.019 Software Free Download



Procedure

Connect Toyota TIS Techstream diagnostic tool to Toyota Corolla EX and laptop.

Run Toyota TIS Techstream software.

Click “Connect to Vehicle”

This post show a guide on how to use Toyota TIS Techstream to Diagnose for Toyota Corolla EX 2011,and I have write many topics about Toyota TIS Techstream test cases before,if you are a freshman on Toyota TIS Techstream,you would better to read them before.  Preparations: How to use Toyota TIS Techstream  Toyota TIS Techstream v12.20.024 Installation Guide  Latest Toyota TIS Techstream V13.10.019 Software Free Download   Procedure Connect Toyota TIS Techstream diagnostic tool to Toyota Corolla EX and laptop. Run Toyota TIS Techstream software. Click “Connect to Vehicle” 1 It will show the “Vehicle Connection Wizard” information Select “TFTM Product,ZRE12.. 1005-”,then click “Next” 2 Then Toyota TIS Techstream will show “System Selection Menu” Here is show systems as below:Engine and ECT,ABS/VSC/TRC/EMPS/Air Conditioner/Immobiliser/SRS Airbag 3 Here I click “Immobiliser” to check: This ECU is a theft deterrent system that determines whether or not to disable starting the engine depending on a comparison of the key’s ID code and the vehicle’s pre-registered code. 4 Then click “Data List”,it will show the immobiliser system as below: 5 You can click sub menu to do immobilizer system diagnosis.  Click “Close” and then click “Air Conditioner” 6 The click “Data List” to check air conditioner system status 7 Air conditioner Active Test 8 Here is a article about Toyota TIS Techstream All Keys Lost Programming for Toyota: Toyota TIS Techstream All Keys Programming for Toyota    Engine and ECT This ECU controls fuel injection,ignition timing,knock control,idiling engine speed,self-diagnosis function,and backup function in extraordinary circumstance etc.Additionally,it controls automatic transmission. 9 Here show a trouble code “P1604”,click it,then it will show below massage You choose to clear or store this DTC 10  EMPS This ECU controls steering operation 11 Data List 12   SRS Airbag This ECU controls the detonator for airbag inflation when the crash sensor detects it. 13 Data List 14  ABS/VSC/TRC This ECU controls Antilock Brake system,vehicle stability control and brake system that controls the safety performance of the car. Note:For VSC vehicle only To ensure proper communication,be sure engine is idling. 15 Data List: 16  And you also can back to main menu to select “Generic OBDII” 17 Data List 18 Utility 19  For above data list or other options,you can click the system data to check.

It will show the “Vehicle Connection Wizard” information

Select “TFTM Product,ZRE12.. 1005-”,then click “Next”

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (2)

Then Toyota TIS Techstream will show “System Selection Menu”

Here is show systems as below:Engine and ECT,ABS/VSC/TRC/EMPS/Air Conditioner/Immobiliser/SRS Airbag

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (3)

Here I click “Immobiliser” to check:

This ECU is a theft deterrent system that determines whether or not to disable starting the engine depending on a comparison of the key’s ID code and the vehicle’s pre-registered code.

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (4)

Then click “Data List”,it will show the immobiliser system as below:

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (5)

You can click sub menu to do immobilizer system diagnosis.



Click “Close” and then click “Air Conditioner”

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (6)

The click “Data List” to check air conditioner system status

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (7)

Air conditioner Active Test

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (8)

Here is a article about Toyota TIS Techstream All Keys Lost Programming for Toyota:

Toyota TIS Techstream All Keys Programming for Toyota





Engine and ECT

This ECU controls fuel injection,ignition timing,knock control,idiling engine speed,self-diagnosis function,and backup function in extraordinary circumstance etc.Additionally,it controls automatic transmission.

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (9)

Here show a trouble code “P1604”,click it,then it will show below massage

You choose to clear or store this DTC

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (10)



EMPS

This ECU controls steering operation

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (11)

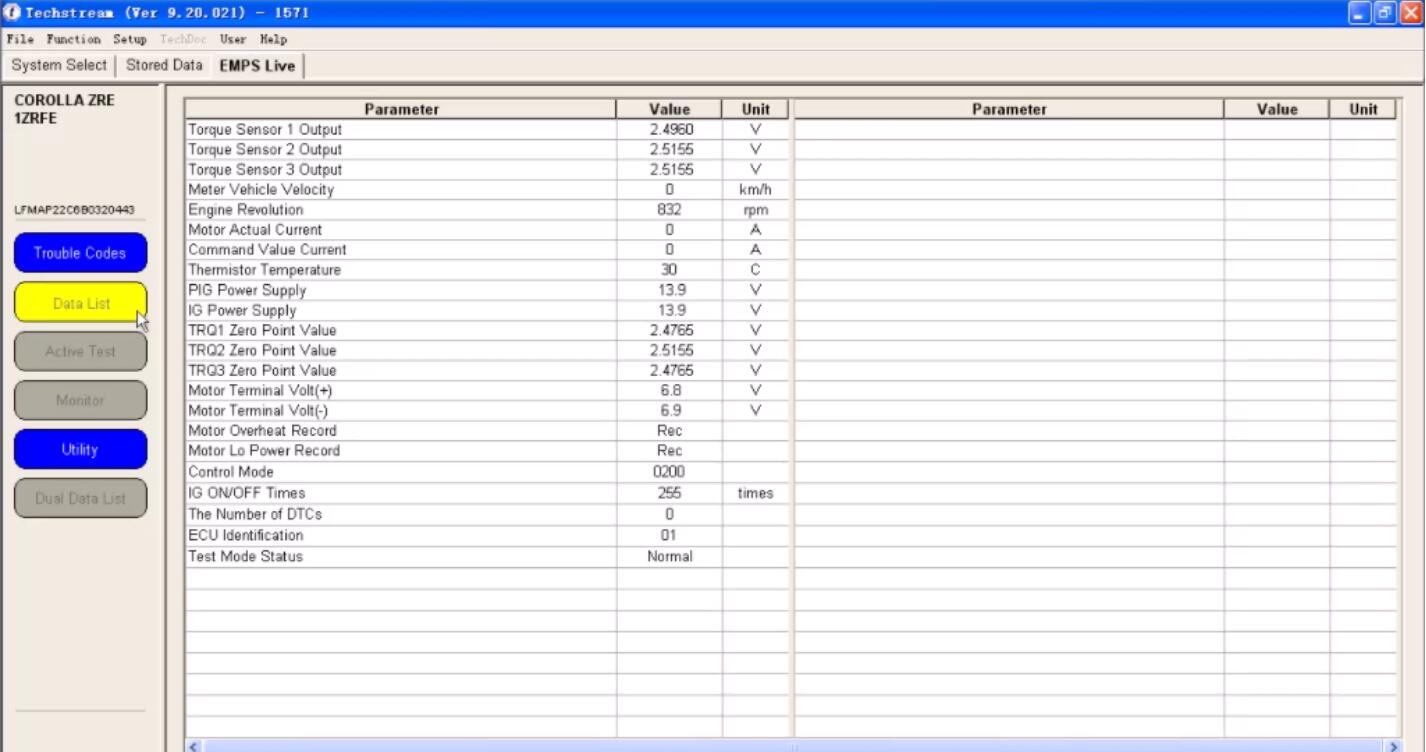

Data List

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (12)





SRS Airbag

This ECU controls the detonator for airbag inflation when the crash sensor detects it.

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (13)

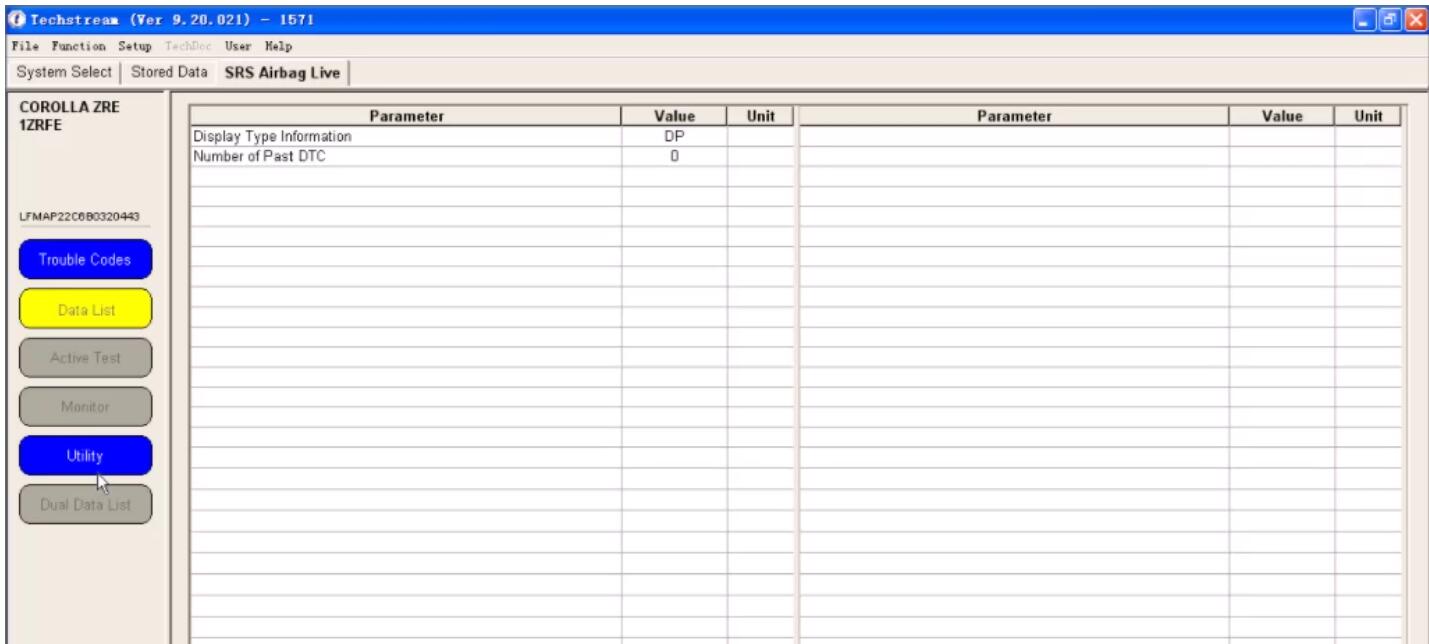

Data List

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (14)



ABS/VSC/TRC

This ECU controls Antilock Brake system,vehicle stability control and brake system that controls the safety performance of the car.

Note:For VSC vehicle only

To ensure proper communication,be sure engine is idling.

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (14)

Data List:

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (16)



And you also can back to main menu to select “Generic OBDII”

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (17)

Data List

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (18)

Utility

Toyota TIS Techstream Diagnose for Toyota Corolla EX 2011 (19)



For above data list or other options,you can click the system data to check.
