AGCO EEM5 DEF Suction Module Tank sensor (CAN)

AGCO EEM5 DEF Suction Module Tank sensor (CAN)

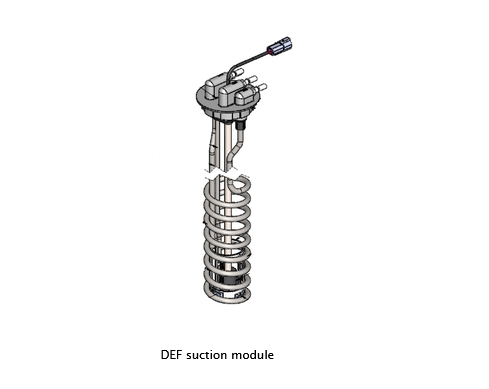

The DEF suction module with the CAN-bus communication contains a urea level and a urea quality sensor. The suction module is installed in the DEF tank. The tank sensor figure is shown in DEF suction module.

Related Contents:

AGCO 2×4 CANUSB Interface Diagnostics

2026 AGCO EDT Electronic Diagnostic Tool

AGCO WinEEM5 Power Service Tool 9.0

ECU connection

The pin numbers at the ECU:

A56     CAN High

A55     CAN Low

The pin numbers at the sensor:

Pin 1   Supply voltage

Pin 2   Ground

Pin 3   CAN High

Pin 4   CAN Low

Supply through AUX relay T31 Ground terminal

The tank sensor pinout is shown in figure Connector, tank sensor CAN.
