Bobcat Excavator Trouble Codes & How to Retrieval by Dash

This instruction show all trouble codes on Bobcat excavator machine,and share the guide on how to use dash to clear/retrieval.

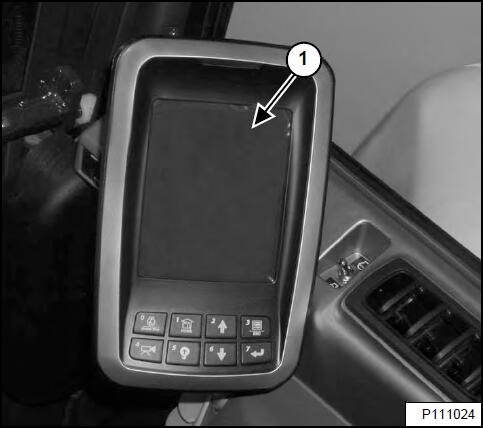

The error codes will be displayed on the instrument panel (Item 1)] under the “Real Time Failure Information” screen.

Bobcat-Excavator-Trouble-Codes-How-to-Retrieval-by-Dash-1

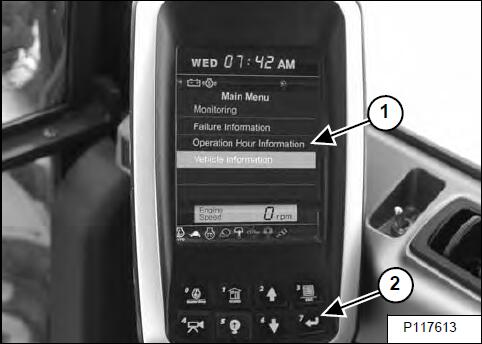

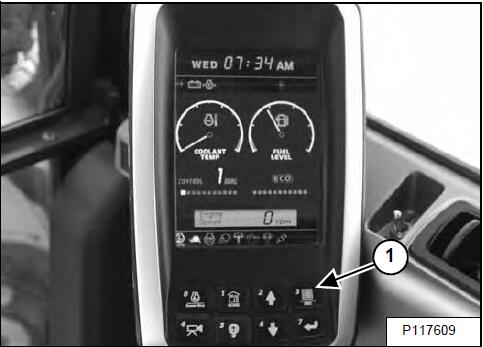

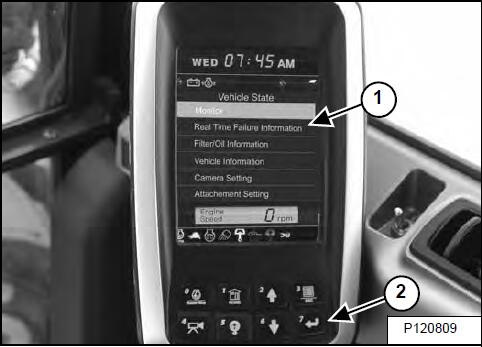

Enter the display panel REAL TIME FAILURE INFORMATION screen.

See the following chart for the codes.



Service Codes List

CODE FMI DESCRIPTION

C0001 20 CAN Communication Data Drifted High (VCU)

C0002 21 CAN Communication Data Drifted Low (VCU)

C0003 20 CAN Communication Data Drifted High (GP)

C0004 21 CAN Communication Data Drifted Low (GP)

C0005 12 CAN Communication Data Failed (ECU)

E0001 0 Engine Speed Dial Above Normal Range (ECU)

E0002 3 Rack Position Sensor Voltage Above Normal (ECU)

E0003 4 Rack Position Sensor Voltage Below Normal (ECU)

E0004 2 Coolant Sensor Incorrect Signal (ECU)

E0005 3 Coolant Sensor Voltage Above Normal (ECU)

E0006 4 Coolant Sensor Voltage Below Normal (ECU)

E0007 4 Power Voltage Below Normal (ECU)

E0008 2 Rack Actuator Relay Incorrect Signal (ECU)

E0009 3 Rack Actuator Relay Voltage Above Normal (ECU)

E0010 4 Rack Actuator Relay Voltage Below Normal (ECU)

E0011 7 Rack Actuator Relay Out Of Adjustment (ECU)

P0008 5 No Signal on both crank and cam speed sensor

P000F 16 PLV Open Valve

P0088 0 Actual Rail Pressure Rise Error

P0093 15 Rail Pressure Deviation error during the actual rail pressure Rise

P0094 18 Rail Pressure Deviation error during the actual rail pressure drop

P0112 4 New Air Temperature Sensor Fault (Low Voltage)

P0113 3 New Air Temperature Sensor Fault (High Voltage)

P0117 4 Cooling Water Temperature Sensor Fault (Low Voltage)

P0118 3 Cooling Water Temperature Sensor Fault (High Voltage)

P0122 4 Accelerator sensor 1 (Insufficient Sensor Output)

P0123 3 Accelerator sensor 1 (Excessive Sensor Output)

P0168 0 Fuel Temperature Sensor Temperature Abnormal High (Overheat)

P0182 4 Fuel Temperature Sensor Fault (Low Voltage)

P0183 3 Fuel Temperature Sensor Fault (High Voltage)

P0192 4 Rail Pressure Sensor fault (Low Voltage)

P0193 3 Rail Pressure Sensor fault (High Voltage)

P0201 5 Injector 3 (Cylinder 1: Port 2-2) Open Circuit (Inherent location of the injector)

P0202 5 Injector 2 (Cylinder 2: Port 2-1) Open Circuit (Inherent location of the injector)

P0203 5 Injector 4 (Cylinder 3: Port 1-1) Open Circuit (Inherent location of the injector)

P0204 5 Injector 1 (Cylinder 4: Port 1-2) Open Circuit (Inherent location of the injector)

P0217 0 Cooling Water Temperature Sensor Temperature Abnormal High (Overheat)

P0219 16 Over speed

P0222 4 Accelerator Sensor 2 (Insufficient Sensor Output)

P0223 3 Accelerator Sensor 2 (Excessive Sensor Output)

P0227 4 Accelerator Sensor 3 (Insufficient Sensor Output)

P0228 3 Accelerator Sensor 3 (Excessive Sensor Output)

P0236 13 EGR Low Pressure Side Sensor fault (Abnormal Learning Value)

P0237 4 EGR Low Pressure Side Sensor fault (Low Voltage)

P0238 3 EGR Low Pressure Side Sensor fault (High Voltage)

P0262 6 Injector 3 (Cylinder 1: Port 2-2) coil short circuit

P0265 6 Injector 2 (Cylinder 2: Port 2-1) coil short circuit

P0268 6 Injector 4 (Cylinder 3: Port 1-1) coil short circuit

P0271 6 Injector 1 (Cylinder 4: Port 1-2) coil short circuit

P02E8 4 Intake Throttle opening sensor fault (Low Voltage)

P02E9 3 Intake Throttle opening sensor fault (High Voltage)

P0336 2 Crank Signal Malfunction

P0337 5 No Crank Signal

P0341 2 Cam Signal Malfunction

P0342 5 No Cam Signal

P0403 12 Open circuit between the EGR motor coils

P0404 0 EGR over-voltage fault

P040C 4 Intake Manifold Temperature Sensor Fault (Low Voltage)

P040D 3 Intake Manifold Temperature Sensor Fault (High Voltage)

P041C 4 EGR Gas Temperature Sensor Fault (Low Voltage)

P041D 3 EGR Gas Temperature Sensor Fault (High Voltage)

P0420 1 DPF Intermediate Temperature Sensor Temperature Abnormal Low Temperature

P0471 13 EGR High Pressure Side Sensor fault (Abnormal Learning Value)

P0472 4 EGR High Pressure Side Sensor fault (Low Voltage)

P0473 3 EGR High Pressure Side Sensor fault (High Voltage)

P0488 12 EGR position sensor malfunction

P049D 7 EGR initialization malfunction

P0541 6 Startup Assist Relay GND Interrupted

P0543 5 Startup Assist Relay Interrupted

P0545 4 Exhaust Manifold Temperature Sensor Fault (Low Voltage)

P0546 3 Exhaust Manifold Temperature Sensor Fault (High Voltage)

P0601 12 EEPROM memory deletion error

P0611 12 Injector drive IC Error

P0627 5 High Pressure Pump Drive Circuit (Open Circuit)

P0629 3 High Pressure Pump Drive Circuit (High Side VB short-circuit)

P062A 6 High Pressure Pump Drive Circuit (Drive current (high level))

P0660 5 No-Load of throttle valve drive H bridge circuit

P068A 2 Main Relay Early Opening

P068B 7 Main Relay Contact Stuck

P1101 0 Air Cleaner Clogged Alarm

P1125 1 Accelerator Sensor 3 (Foot Pedal in close position)

P1126 0 Accelerator Sensor 3 (Foot Pedal in open position)

P1146 6 Injector Drive Circuit Bank 1 Short Circuit (Common Circuit for No. 1 and No. 4 Cylinders)

P1149 6 Injector Drive Circuit Bank 2 Short Circuit (Common Circuit for No. 2 and No. 3 Cylinders)

P1151 0 Oil/Water Separator Alarm

P1192 4 Oil Pressure Switch Open Circuit

P1198 1 Low Oil Pressure Fault Alarm

P1227 8 Pulse Sensor Failure (Pulse Communication)

P1231 10 Atmospheric Pressure Sensor Characteristic Fault

P1262 3 Injector 3 (Cylinder 1: Port 2-2) short circuit

P1265 3 Injector 2 (Cylinder 2: Port 2-1) short circuit

P1268 3 Injector 4 (Cylinder 3: Port 1-1) short circuit

P1271 3 Injector 1 (Cylinder 4: Port 1-2) short circuit

P1341 7 Angle Offset Fault

P1404 1 EGR under-voltage fault

P1405 12 Short circuit between the EGR motor coils

P1409 7 EGR feedback malfunction

P1410 1 EGR high temperature thermistor malfunction

P1411 1 EGR low temperature thermistor malfunction

P1420 0 Ash Cleaning Request 2

P1421 16 Stationary Regeneration Standby

P1424 0 Back-up Mode

P1425 14 Reset Regeneration Prohibited

P1426 0 DPF Intermediate Temperature Sensor Temperature Abnormal High (Post-injection failure)

P1427 4 DPF Inlet Temperature Sensor fault (Low Voltage)

P1428 3 DPF Inlet Temperature Sensor fault (High Voltage)

P1434 3 DPF Intermediate Temperature Sensor Fault (High Voltage)

P1435 4 DPF Intermediate Temperature Sensor Fault (Low Voltage)

P1436 0 DPF Inlet Temperature Sensor abnormal high

P1438 12 Exhaust Throttle (Voltage fault)

P1439 12 Exhaust Throttle (Motor Fault)

P1440 12 Exhaust Throttle (Sensor System Fault)

P1441 12 Exhaust Throttle (MPU Fault)

P1442 12 Exhaust Throttle (PCB Fault)

P1443 19 Exhaust Throttle (CAN Fault)

P1445 9 Recovery Regeneration Failure

P1446 7 Recovery Regeneration Prohibition

P1454 4 DPF High Pressure Side Sensor Fault (Low Voltage)

P1455 3 DPF High Pressure Side Sensor Fault (High Voltage)

P1463 0 Over accumulation (Method P)

P1467 6 Actuator Drive Circuit 3 short to ground

P1469 12 AD Converter Fault 1

P1470 12 AD Converter Fault 2

P1471 12 External Monitoring IC and CPU Fault 1

P1472 12 External Monitoring IC and CPU Fault 2

P1473 12 ROM Fault

P1474 12 Shutoff path fault 1

P1475 12 Shutoff path fault 2

P1476 12 Shutoff path fault 3

P1477 12 Shutoff path fault 4

P1478 12 Shutoff path fault 5

P1479 12 Shutoff path fault 6

P1480 12 Shutoff path fault 7

P1481 12 Shutoff path fault 8

P1482 12 Shutoff path fault 9

P1483 12 Shutoff path fault 10

P1484 0 Recognition error of engine speed

P148A 7 EGR stuck open valve malfunction

P1562 5 Charge Switch Open Circuit

P1568 1 Charge Alarm

P1608 12 Excessive voltage of supply 1

P1609 12 Sensor supply voltage error 1

P160E 12 EEPROM memory read error

P160F 12 EEPROM memory write error

P1613 12 CY 146 SPI Communication Fault

P1617 12 Insufficient voltage of Supply 1

P1618 12 Sensor supply voltage error 2

P1619 12 Sensor supply voltage error 3

P1626 4 Actuator Drive Circuit 1 short to ground

P1633 4 Actuator Drive Circuit 2 short to ground

P1641 3 High Pressure Pump Drive Circuit (Low Side VB short-circuit)

P1642 6 High Pressure Pump Drive Circuit (High Side GND short-circuit)

P1643 6 High Pressure Pump Drive Circuit (Low Side GND short-circuit)

P1645 11 High Pressure Pump Drive Circuit (Pump Overload Error)

P1646 7 Dual accelerator sensor (closed position) failure

P1647 7 Dual accelerator sensor (open position) failure

P1648 13 IQA Corrected Injection Amount for Injector 1 Error

P1649 13 IQA Corrected Injection Amount for Injector 2 Error

P1650 13 IQA Corrected Injection Amount for Injector 3 Error

P1651 13 IQA Corrected Injection Amount for Injector 4 Error

P1658 3 Power short circuit of throttle valve drive H bridge Output 1

P1659 4 GND short circuit of throttle valve drive H bridge output 1

P1660 6 Overload on the drive H bridge circuit of throttle valve

P1661 3 VB Power short circuit of throttle valve drive H bridge output 2

P1662 4 GND short circuit of throttle valve drive H bridge output 2

P1665 9 Rail pressure Fault (Controlled rail pressure error after PLV Valve Opening)

P1666 0 Rail Pressure Fault (PLV Valve opening time error)

P1667 0 Rail Pressure Fault (PLV Valve opening time error)

P1668 0 Rail Pressure Fault (The actual rail pressure is too high during PRV limp home)

P1669 0 Rail Pressure Fault (Injector B/F temperature error during PLV4 Limp Home)

P1670 7 Rail Pressure Fault (Operation time error during RPS Limp Home)

P2228 4 Atmospheric Pressure Sensor Fault (Low Voltage)

P2229 3 Atmospheric Pressure Sensor Fault (High Voltage)

P242F 16 Ash Cleaning Request 1

P2452 0 DPF Differential Pressure Sensor Differential Pressure Abnormal High

P2453 13 DPF Differential Pressure Sensor (Abnormal learning value)

P2454 4 DPF Differential Pressure Sensor Fault (Low Voltage)

P2455 3 DPF Differential Pressure Sensor Fault (High Voltage)

P2458 7 Regeneration defect (Stationary Regeneration Failure)

P2459 11 Regeneration defect (Stationary Regeneration not performed)

P2463 0 Over accumulation (Method C)

U010B 9 CAN1 (for EGR) reception time out

U0168 31 VI (CAN Message) reception time out

U0292 9 TSC1 (CAN Message) reception time out (SA1)

U0401 9 EGR ECM data fault

U1107 9 Exhaust throttle (CAN message from the exhaust throttle time out)

U1292 9 Y_ECR1(CAN Message) reception time out

U1293 9 Y_EC (CAN Message) reception time out

U1294 9 Y_RSS (CAN Message) reception time out

U1296 9 VH (CAN Message) reception time out

U1298 9 Y_ECM3 (CAN Message) reception time out

U1300 9 Y_ETCP1 (CAN Message) reception time out

U1301 9 TSC1 (CAN Message) reception time out (SA2)

U1302 9 EBC1 (CAN Message) reception time out

U1303 9 Y_DPFIF (CAN Message) reception time out

U1401 12 EGR target value out of range

U3002 13 VI (CAN Message) reception data fault

V0001 1 Engine Oil Pressure Above Normal Range (VCU)

V0002 3 Air Filter Voltage Above Normal (VCU)

V0003 3 Water Separator Voltage Above Normal (VCU)

V0004 1 Fuel Warning Switch Below Normal Range (VCU)

V0005 1 Fuel Sensor Below Normal Range (VCU)

V0006 0 Coolant Sensor Above Normal Range (VCU)

V0008 1 Power Voltage Below Normal Range (VCU)

V0009 0 Overload Sensor Above Normal Range (VCU)

V0010 3 Fuel Sensor Voltage Above Normal (VCU)

V0011 3 Coolant Sensor Voltage Above Normal (VCU)

V0012 4 Coolant Sensor Voltage Below Normal (VCU)

V0013 0 Power Voltage Above Normal Range (VCU)

V0014 3 Overload Sensor Voltage Above Normal (VCU)

V0015 4 Overload Sensor Voltage Below Normal (VCU)

V0016 3 Engine Speed Dial Voltage Above Normal (VCU)

V0017 4 Engine Speed Dial Voltage Below Normal (VCU)

V0022 3 Work Light Relay Voltage Above Normal (VCU)

V0023 2 Thumb Wheel Switch (R.H.) Incorrect Signal (VCU)

V0024 2 Thumb Wheel Switch (L.H.) Incorrect Signal (VCU)



More repair topic for Bobcat,please refer to:Bobcat Excavator Repair



Failure Mode Indicator Information

FMI (FAILURE MODE INDICATOR) DESCRIPTION

0 Above Normal Range

1 Below Normal Range

2 Incorrect Signal

3 Voltage Above Normal

4 Voltage Below Normal

5 Current Below Normal

6 Current Above Normal

7 Mechanical System Not Responding Or Out Of Adjustment

8 Abnormal Signal

9 Abnormal Update

10 Abnormal Rate Of Change

11 Failure Mode Not Identifiable

12 Failed

13 Out Of Calibration

14 Special Instructions

15 Data Valid But Above Normal Operating Range Least Severe Level

16 Data Valid But Above Normal Operating Range Moderately Severe Level

17 Data Valid But Below Normal Operating Range Least Severe Level

18 Data Valid But Below Normal Operating Range Moderately Severe Level

19 Received Network Data In Error

20 Data Drifted High

21 Data Drifted Low

31 Condition Exists



Code Retrieval Through The Dash

Real Time Failure

Use the following procedure to access the Real Time Failure Codes.

Bobcat-Excavator-Trouble-Codes-How-to-Retrieval-by-Dash-2

With the engine OFF and the key switch in the ON position, press 3 (Item 1)

Bobcat-Excavator-Trouble-Codes-How-to-Retrieval-by-Dash-3

Use 2 or 6 (Item 1) to select vehicle state (Item 2). Press 7 (Item 3)

Bobcat-Excavator-Trouble-Codes-How-to-Retrieval-by-Dash-4

Scroll down through the menu to Real Time Failure info (Item 1) and press 7 (Item 2).

The codes will be displayed



Failure Information

Use the following procedure to access the Failure Information (stored codes).

Bobcat-Excavator-Trouble-Codes-How-to-Retrieval-by-Dash-5

With the engine OFF and the key switch in the ON position, press and hold 3 (Item 1) for five seconds

Bobcat-Excavator-Trouble-Codes-How-to-Retrieval-by-Dash-6

The main menu will open. Scroll down to Failure Information (Item 1) and press 7 (Item 2) The codes will be displayed.



(Visited 39 times, 1 visits today)
