How to use Toyota TIS Techstream

Here is a mini guide on how to use Toyota TIS Techstream software.I have written some Toyota TIS Techstream use cases before:

Toyota TIS Techstream Program A New Key For Lexus ES330

Program New Key for Toyota Tundra by TIS Techstream

How to Reset Toyota Password/Immo code with Techstream

Erase transmitter ID2 Code C2122 by Toyota Teachstream

How to Program New Key For Camry Hybrid By Youself

Techstream Program TPMS Sensor for Toyota Tacoma 2015



You would better to read them,if you want to perform same operations.Now,I want to write a guide for the fleshmens.



Preparation:

Toyota TIS Techsteram Software Download

Toyota Techstream TIS Cable Hardware

Install Toyota TIS Techstream



How to use Toyota TIS Techstream

After installation completing,connect Techstream cable to vehicle by OBD port and your laptop via USB port.

How to use Toyota TIS Techstream

Put ignition on,but not start it,just put it in the on position.

Run the Toyota TIS Techstream,then in upper left corner.

Click the button “Connect to Vehicle”

How to use Toyota TIS Techstream (2)

Then computer will start communicating with the vehicle

Then Teachstream will automatically recognizes the vehicle info:

Toyota Tacoma 2014 2TR-FE

How to use Toyota TIS Techstream (3)

Click “Next” button

Finally,the Techstream show the “System Selection Menu”,and the menu marked with yellow which you can choose to scan.And the blue are some function as a health check and so on.

How to use Toyota TIS Techstream (4) How to use Toyota TIS Techstream (5)

Here I click the “Health Check” button.

How to use Toyota TIS Techstream (6)

It will scan all functions and all computers located in this vehicle .And the it prompt as below window massage:

Please select system areas to include in the Health Check.Fewer ECUs reduce delay and allows Health Check to run faster…..

How to use Toyota TIS Techstream (7)

Click the “OK” button

Next it will be reading the system and in this case there will be 8 computers,it normally takes about 10-15 seconds.It depends how many computers are there.

How to use Toyota TIS Techstream (8)

After all computers scanned completing,the Techstream will display like this:

It prompt you that Health Check Complete!

Click “Continue”

How to use Toyota TIS Techstream (9)

Then you will get this result:

On the top,you can actually see the tire pressures,so this is awesome.

And there are the computers and functions which well scanned and as we can see and as we expect it.No codes stored in the history,they are not pending codes or there are no current codes.At the right side of list,you can see a list of possible calibrations.

How to use Toyota TIS Techstream (10)

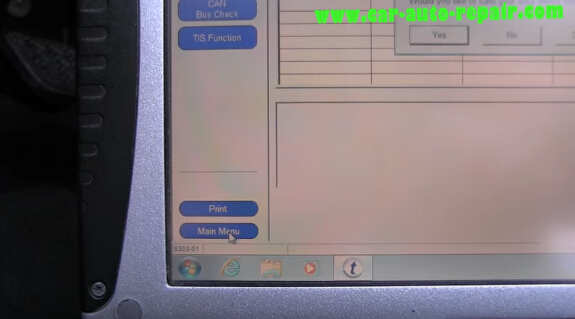

At left bottom,you can click “Main Menu” to go back to “Main Menu“

How to use Toyota TIS Techstream (11)

Here you can of courage to go very many custom options.

And switch the ignition off, and disconnect the Techstream cable to end up your work.



How to use Toyota TIS Techstream Video Guide
