How to Reset Service Oil and Inspection via ODIS for 2017 AUDI Q3

This instruction will show you guide on how to reset service oil and inspection by ODIS for 2017 AUDI Q3.



Preparation:

Newest ODIS-E Engineering 12.1.1 & 9.0.4 Free Download

How to Install ODIS-Engineering 12.1.0 Diagnostic Software

Procedures:

Connect ODIS to vehicle OBD port, then running software.

Click “Start Diagnosis”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-1

Select correct basic vehicle characteristics, click “Adopt”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-2

Click “Without Job”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-3

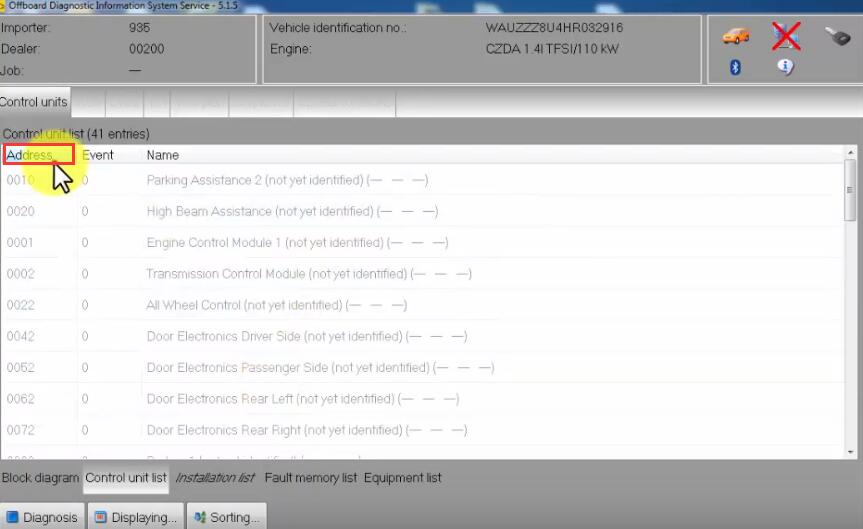

Click “Address”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-4

Click “Fault Memory list”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-5

Click “Information Control Unit”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-6

Click “Done/Continue”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-7

Still click “Done/Continue”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-8

Click “Done/Continue”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-9

Click “Special functions”–>”17-Inspection with oil change-10000KM”–>”Perform test”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-10

Click “Yes”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-11

Click “Done/Continue”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-12

Inspection service was successfully, Click “Done/Continue”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-13

Test finished, click “Done/Continue”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-14

Click “Control units”–>”Control unit list”–>”0017 Dash Board “–>”self-diagnosis”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-15

Select “0017-Dash Board”–>”Adaption”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-16

Input “sia” for Filter, then input “180”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-17

Click “Yes”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-18

Click “0017 Dash Board”–>”Diagnosis”–>”Save”–>”OK”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-19

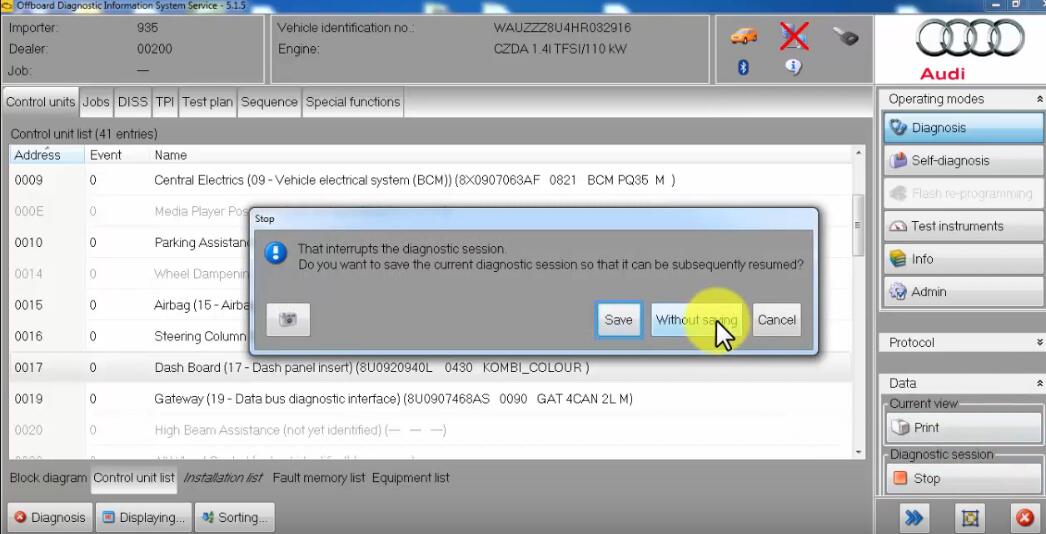

After saving, click “Data”–>“Stop”–>”Without saving”

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-20

Function is ready

How-to-Reset-Service-Oil-and-Inspection-via-ODIS-for-2017-AUDI-Q3-21



More case about AUDI, please refer to AUDI TROUBLE REPAIR.
