How to Install ODIS-Engineering 12.1.0 Diagnostic Software

This instruction show you the procedure on how to install Volkswagen ODIS-Engineering 12.1.0 software.



Procedures:

Newest ODIS-E Engineering 17.0.1/12.2.0/9.0.1 Free Download

08.2023 VW ODIS 23.0.5 & 7.2.1 & 5.2.7 Diagnostic Software Free Download



ODIS-E 12.1.0 Installation Procedures:

Before Installation

Disable/exit your anti-virus software,please diable your Windows 10 Defender

Extract rar or zip files



Step 1:

Run “ODIS-Engineering 12.1.exe” as administration to install

It show you with Diagnostic interface 6154 on Windows 10,just ignore it click “Next” to continue

Select installation folder to install it,then it will ask you to load license file

Click “Search” button to select license file in “Launcer+license” folder

Then wait installation progress done

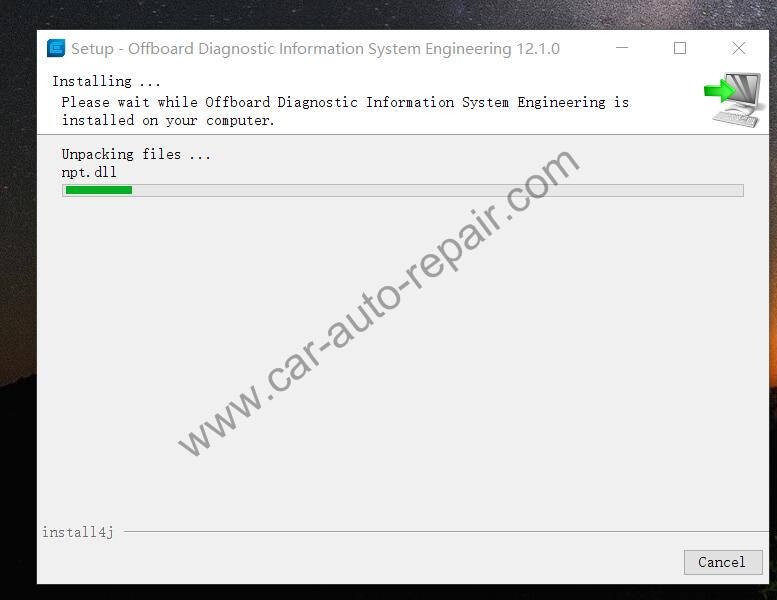

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-1 How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-2





Step 2:

Open “Launcer+license+plugin” folder to copy “offboarddiaglauncher.exe” to “C:\Program Files (x86)\Offboard_Diagnostic_Information_System_Engineering” replace original one

Open “Launcer+license+plugin” folder to copy “license.dat” to “C:\ProgramData\Offboard_Diagnostic_Information_System_Engineering\license” replace original

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-3



Then go to “C:\Program Files (x86)\Offboard_Diagnostic_Information_System_Engineering” to run “modify_certificate_loc.exe”,and click “OK”

33



Run “OffboardDiagLauncher.exe” icon on desktop,it will show you a Hardware ID,sent this Hardware ID to “[email protected]”,our tech team will sent name and key to you

Input name and key,then click “Register”

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-4



Step 3:

At step 2,after clicking “Register” button,it will ask you to configuration PostSetup data

Click “Select local directory” button to open “Postsetup” folder to select “DAV” folder

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-5

Click “Next” arrow to continue

Select language you want,then click “Next” arrow to continue

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-6

Just click “Next” arrow to continue

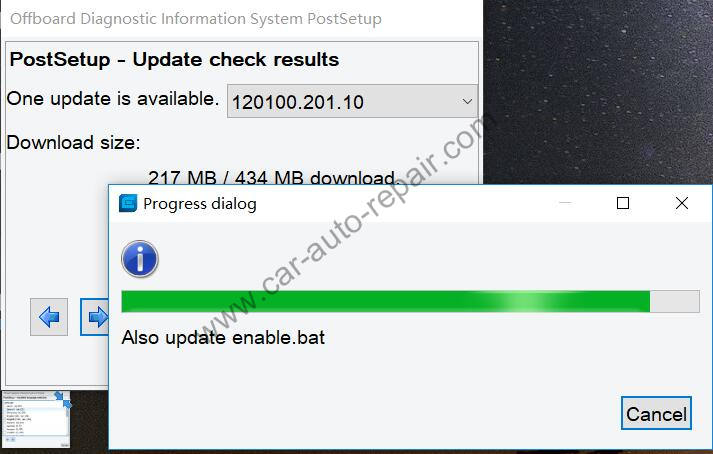

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-7 How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-8



Then it will download ODIS data,please wait progress,if it give the error,just repeat data configuration.

After finishing,it will ask you to restart PC,just click to Restart PC

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-9



Step 4:(only Windows 10 need perform this Step for VAS5054)

Open “D-PDU_APISetup” folder to install “D-PDU_APISetup.exe”,just click “Next” to finish installation

How-to-Install-ODIS-Engineering-12.1.0-Diagnostic-Software-10

Then double click “D-PDU_API-ODIS-E.bat” to run it

Copy “DSVR-ProdiMCD” folder to “C:\ProgramData\Offboard_Diagnostic_Information_System_Engineering\MCD-PROJECTS-Engineering” replace
