BMW S1000R Motorbike All Key Lost Programming by AVDI

This instruction show you guide on how to use AVDI Diagnostics to do all key lost programming for BMW S1000R motorbike.

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-1



Procedures:

Connect AVDI programmer to BMW S1000R motorbike,you need use additional power supply

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-2

Run ABRITES Tag Key Tool,select “Production” in drop-down menu

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-3

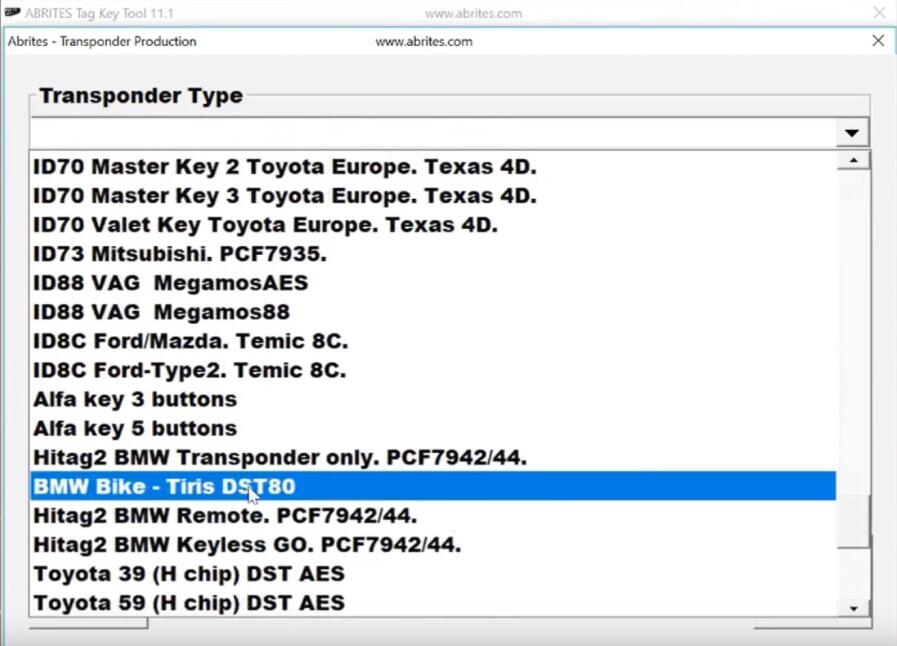

Then select “BMW Bike-Tiris DST80”,then click “Program” and insert the blank key into the ProTag programmer.

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-4 BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-5

Programming completed successfully

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-6

Start the ABRITES Diagnostics for BMW Online software

Wait for the bike protocol to be identified

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-7

BMW motorbike detected,click “Continue”

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-8

Click “Key & Start Synchronization”

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-9

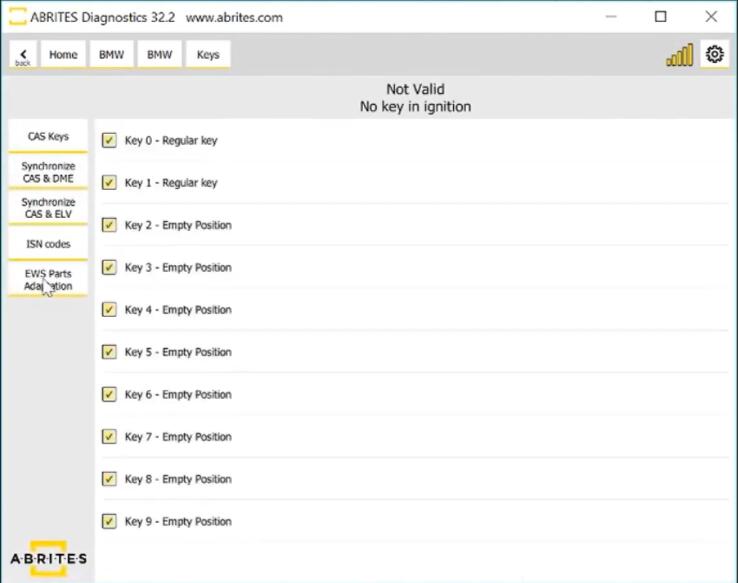

Click “EWS Parts Adaptation”

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-10

Select “Bike key Learning by OBD”

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-11

Make sure all the prerequisites are met,then click “Next”

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-12

Select the free position for the new key

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-13

Hold the new key against the ring aerial,then click “write”

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-14

Key learned completely

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-15

Now you will find the position 2 have been enabled for new key

BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-16 BMW-S1000R-Motorbike-All-Key-Lost-Programming-by-AVDI-17

Done!
