How to Reset ECU Learned Values for Hino Truck by HINO DX3

HINO DX3 allows you to reset HINO truck ECU learned values.This instruction show you guide on how to do that.



Related Contents:

Nexiq USB2 Diagnostic Adapter

2024.01 HINO Diagnostic Explorer DX3/DX2 Diagnostic Software Free Download

HINO Trucks EPC Electronic Parts Catalog 2018 2016 Free Download



Procedures:

1 Select Learned Values on the System selection screen.
(System selection screen)

How to Read and Write Values to HINO Truck by HINO DX3 (5)

2 When you select a system, a list of Learned Values set for the device is displayed.
(Learned Values screen)

How to Reset ECU Learned Values for Hino Truck by HINO DX3 (2)

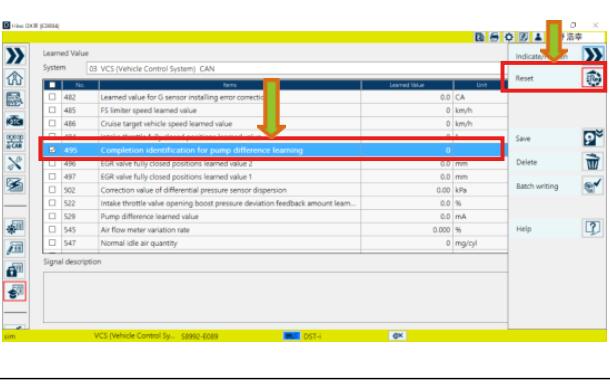

3 You can reset the Learned Values by checking the items you would like to reset and pressing the [Reset] button.
(Learning Values screen)
[Reference]
The value to be reset is the preset initial value.

How to Reset ECU Learned Values for Hino Truck by HINO DX3 (3)

4 A confirmation screen will be displayed. Check the contents and click or press the [OK] button.
(Reset Confirmation screen)
[Reference]
Click or press the [Cancel] button to return to the Learned Values screen.

How to Reset ECU Learned Values for Hino Truck by HINO DX3 (4)

5 A message is displayed when writing to the device is complete.
(Reset Completion screen)
[Reference]
• This message is displayed regardless of whether the reset was successful or not.
• Items that have been successfully reset are displayed as

Successful in the ECU writing field.
• Items for which reset has failed are displayed as Failed in the ECU writing field.

How to Reset ECU Learned Values for Hino Truck by HINO DX3 (5)

More HINO DX3 User Guide,please refer to:How to Use HINO DX3
