How to Change Contant Speed for Deutz Engine by SerDia2010

This instruction show you guide on how to change constant speed for Deutz engine with EDC17 by SerDia2010 diagnostic software. To use this function, the engine has to be in fixspeed mode or
the setting allows to activate the fixspeed mode.

How to Change Contant Speed for Deutz Engine by SerDia2010 (1)



Related Contents:

Deutz Diagnostic Kit DECOM for Deutz Engine

2023 Deutz Serdia2010 v14.1.9.1 Diagnostic Software Free Download

Deutz Serpic EPC Parts Catalogue 2014 2012 Free Download

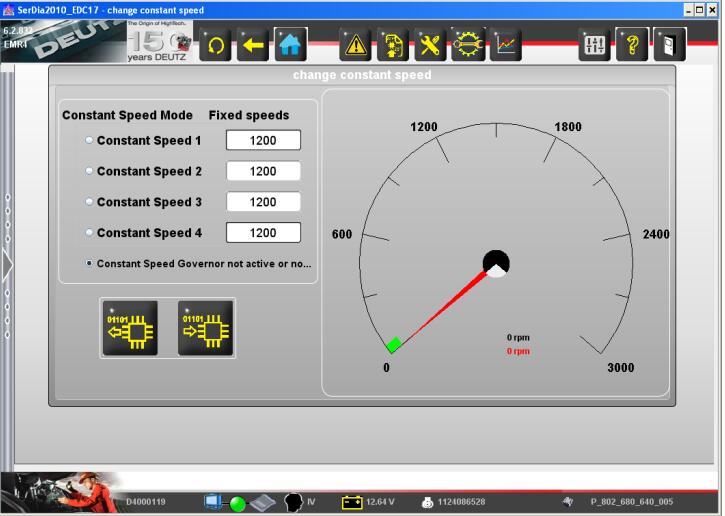

Screen change constant speed
The actual setting for the fixspeed values are shown on the left upper part of the screen.
The setting of the switch is marked, too
Additionally the actual engine speed and the speed setpoint is shown as value and tachometer
on the right side inclusive hysteresis to have a qualitative feedback.



Button “read from ECU”:

How to Change Contant Speed for Deutz Engine by SerDia2010 (2)

Button “write values to ECU”:

How to Change Contant Speed for Deutz Engine by SerDia2010 (3)

Values shown on the screen for fixspeed 2 (first intermediate speed)
and fixspeed 3 (2. intermediate speed) are flashed to the ECU.
If the engine is still running while activation of this procedure, SerDia will ask to stop
engine automatically

Textbox “Constant Speed 2″,”Constant Speed 3”:

How to Change Contant Speed for Deutz Engine by SerDia2010 (4)

Changes in these textboxes have to be confirmed with ENTER.
After confirmation the new value will get active, if switched on (see marking point at fixspeed).
It is not possible to install a speed below fixspeed one or above fixspeed four.
The fixspeeds 1 and 4 are not changeable in this screen (see hints above).
