AGCO EEM Dosing module
Description
The dosing module (DM) is installed in the exhaust line between the diesel particulate filter (DPF) and the selective catalytic reduction (SCR) catalyst. The DM contains an electrically operated solenoid valve, which injects diesel exhaust fluid (DEF) to the exhaust line.
ECU connection
Related Contents:
AGCO 2×4 CANUSB Interface Diagnostics
2026 AGCO EDT Electronic Diagnostic Tool
AGCO WinEEM5 Power Service Tool 9.0
The pin numbers at the ECU:
K10 Dosing valve (HS)
K9 Dosing valve (LS)
Characteristics
Common information:
Nominal operation voltage = 14,8V or 28,5V
Electrical resistance = 11,4 ohm – 12,6 ohm

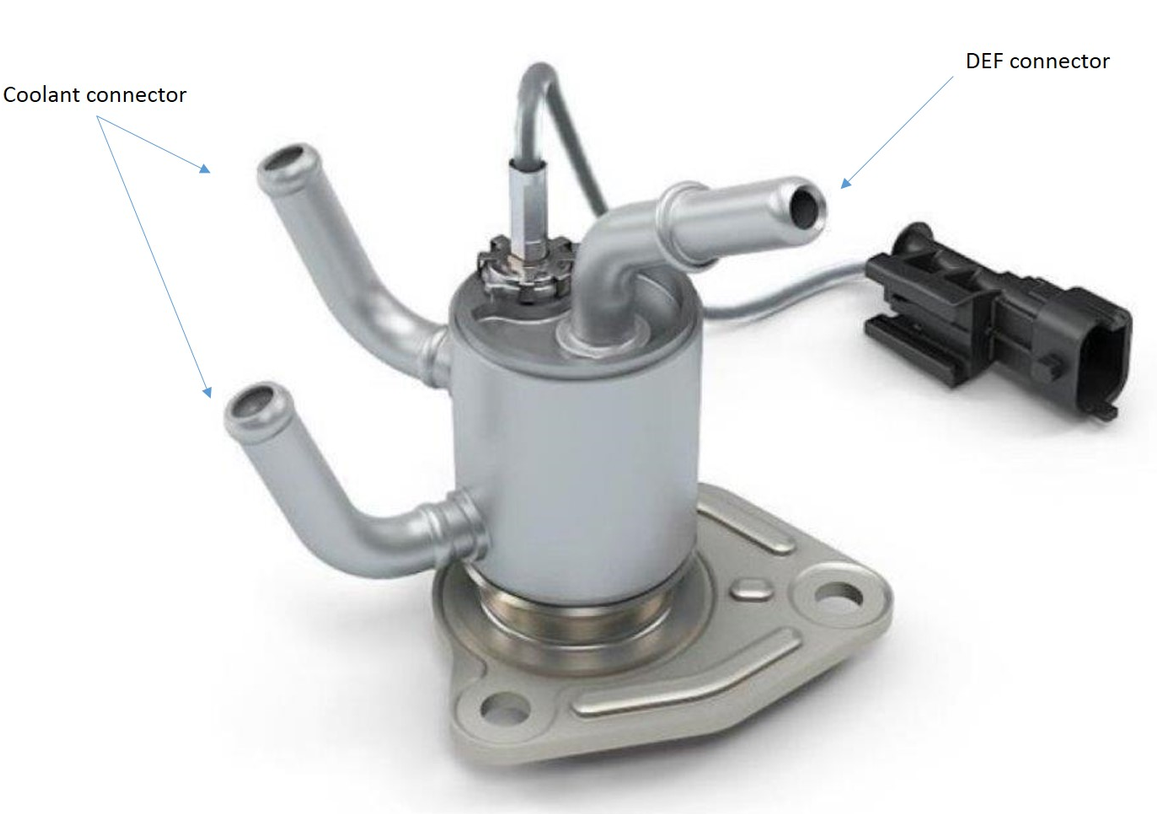

The DEF dosing module picture is shown in figure Dosing module.
