Ford IDS Configure Parameter for Ford Mondeo

Here I want to introduce the steps of Ford Mondeo Parameter Configuration by Ford IDS diagnostic software.





Preparations:

Ford IDS Software Installation Guide (Original & Crack)

Latest Ford IDS V111 V108 V107 Software Free Download

Ford IDS Calibration Files v81 Free Download



Procedures of Ford IDS Configure Parameter for Ford Mendeo:

Run Ford IDS software,then follow below picture to select “Start New Session”à”All other”

Ford IDS Configure Parameter for Ford Mondeo (1)

Select “Vehicle Specification”à”MY07.25”

Ford IDS Configure Parameter for Ford Mondeo (2)

Here it prompt me with massage “Is this vehicle fitted with a monochrome navigation system”

Default “No”,click yes to continue

Ford IDS Configure Parameter for Ford Mondeo (3)

After then it will show the vehicle information as below

Vehicle:Mondeo

Enigne Type:DURATEC-HE/14

Capacity:2.3L

Transmission:Automatic

Fuel Type:Gasoline

Is thiss correct?

Click “Yes” to continue

Ford IDS Configure Parameter for Ford Mondeo (4)

It will show the VIN as below

Ford IDS Configure Parameter for Ford Mondeo (5)

Click menu to select “Module Programming” as below

Ford IDS Configure Parameter for Ford Mondeo (6)

The select “Programming Parameters”à”Car Configuration Parameter(s)”

Ford IDS Configure Parameter for Ford Mondeo (7)

During Module Programming this module goes through a VIN verification process.

This process compares the VIN in this module with the VIN in other modules on the vehihcle.You may see the VIN verification screen more than once depending upon your response to the question.



Enter the VIN using the keyboard.Make sure that all VIN characters are entered.

Ford IDS Configure Parameter for Ford Mondeo (8)

Select “Vehicle configuration”à”Retrieve the vehicle configuration data”

Click tick to continue

Ford IDS Configure Parameter for Ford Mondeo (9)

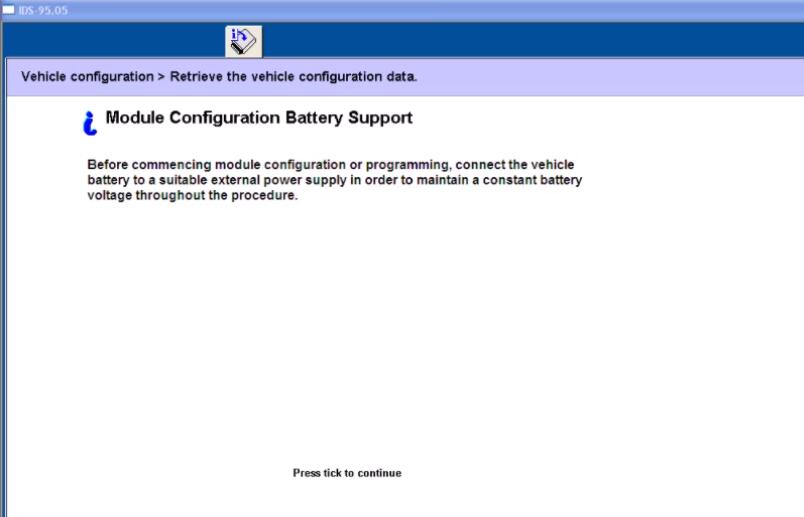

It will prompt you with the “Module Configuration Battery Support” information

Ford IDS Configure Parameter for Ford Mondeo (10)

Press tick to continue

Follow the Ford IDS prompt to set the ignition switch to ON

Ford IDS Configure Parameter for Ford Mondeo (11)

Operator question

Click tick to continue

Ford IDS Configure Parameter for Ford Mondeo (11)

Set ignition switch to OFF (Position 0)

Ford IDS Configure Parameter for Ford Mondeo (13)

Operator Action

Switch the ignition ON

Ford IDS Configure Parameter for Ford Mondeo (13)

Switch the ignition to off

Press tick to continue

Ford IDS Configure Parameter for Ford Mondeo (14)

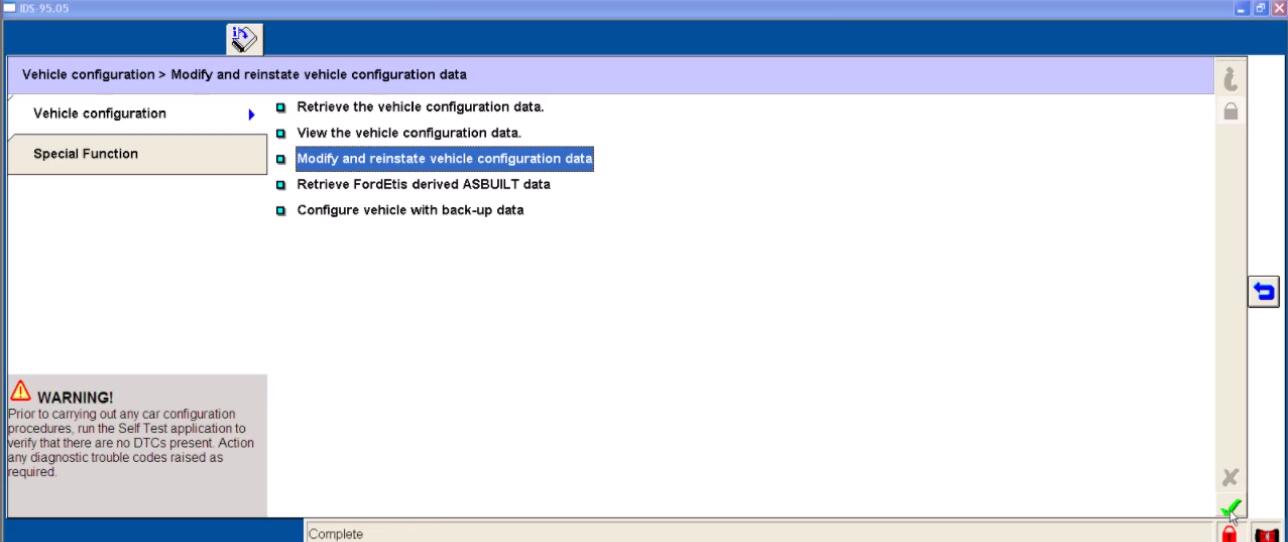

Back to select “Modify and reinstate vehicle configuration data”

Ford IDS Configure Parameter for Ford Mondeo (16)

Here you can view vehicle configuration data from BCMii(CCF Master module)

Ford IDS Configure Parameter for Ford Mondeo (17)

And before you modify the configuration data,you would better to download the data fiel to make a backup.

Select the system data file you want and then click the tick to download

Ford IDS Configure Parameter for Ford Mondeo (18) Ford IDS Configure Parameter for Ford Mondeo (19)



Set the ignition switch to ON

Ford IDSFord IDS Configure Parameter for Ford Mondeo (19) Configure Parameter for Ford Mondeo (20)

It will prompt you with below massage,click tick to continue

Ford IDS Configure Parameter for Ford Mondeo (21)

Set ignition switch to OFF(Position 0)

Ford IDS Configure Parameter for Ford Mondeo (22)

Switch the ignition ON

Ford IDS Configure Parameter for Ford Mondeo (22) Ford IDS Configure Parameter for Ford Mondeo (24)



Download complete

Ford IDS Configure Parameter for Ford Mondeo (25)

Switch the ignition Off

Ford IDS Configure Parameter for Ford Mondeo (26)

You can view the vehicle configuration data here

Ford IDS Configure Parameter for Ford Mondeo (27)

Done!
