Ford Focus PCM Reprogramming by Ford IDS Software

This instruction show you guide on how to use Ford IDS software to do PCM reprogramming for Ford Focus after PCM replacement.

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-1

Preparations:

Latest Ford IDS V118 V117 V113 Software Free Download



Procedures:

Connect your Ford diagnostic tool (VCM2) to car obd port,then run software

Select “Start New Session”–>” All other”

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-2

Then wait establishing communication to PCM

It will show you the vehicle information as below,click “Yes” to continue

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-3

Input odometer value,then click “OK” icon at lower right corner

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-4

Select “Module Programming”

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-5

Select “Programmable Module Installation”–>”PCM”

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-6

Wait for the process..

Set ignition switch to OFF

Install a new module in vehicle

Click “OK” icon

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-7

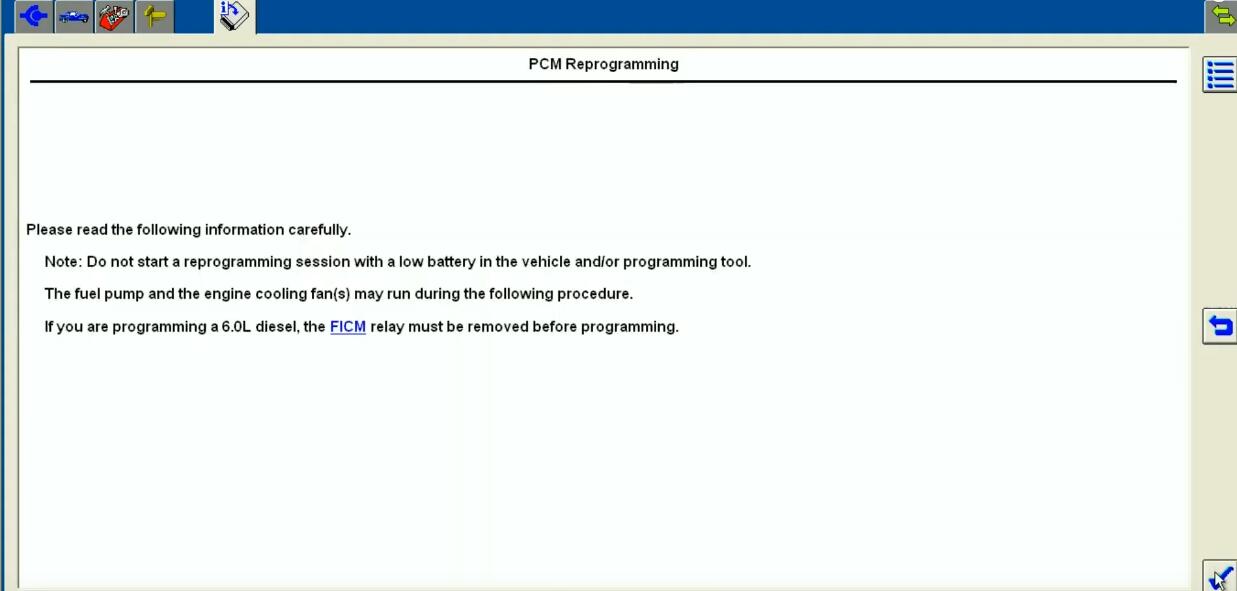

Please read the follow information carefully:

Note:Do not start a reprogramming session with a low battery in the vehicle and/or programming tool.

The fuel pump and the engine cooling fan(s) may run during the following procedure

If you are programming a 6.0L diesel,the FICM relay must be removed before programming.

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-8

The Ford IDS will prompt you to set the ignition switch to ON

PCM reprogramming..

Please wait

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-9

When PCM reprogramming process done,follow the prompt to set ignition switch to OFF

Then set the ignition switch to ON again

Set ignition switch to OFF

Here are some repeat steps,just follow prompt

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-10

Calibration has been loaded and checked

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-11

If you programmed a 6.0L diesel please reinstall the FICM relay

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-12

If required,obtain a PCM reprogramming label and complete with the following data:

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-13

Start engine

Note:Do not depress the throttle pedal

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-14

Set ignition switch to OFF

Set ignition switch to ON

Now here clear DTCs

Ford-Focus-PCM-Reprogramming-by-Ford-IDS-Software-15

Done!
