Key Programming by AVDI and TN011 for Toyota Corolla/Camry 2020

This instruction will show you guide on how to use TN011,TA64 and CB012 program a key for 2020 Corolla Hybrid Toyota. The specific thing that we had to do is take out the glove compartment so we can gain access to the back side of the smart system where the connectors are located and where we connect the CB012 Can H and Can L pinch connector cables.

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-1



The TN011 function defines itself by the following:

Does the all keys lost on the EU and US models

No need to be connected to the Toyota servers

Smart System reset is not required

EU models are supported only by AVDI

Supports Corolla/Camry 2018+ and all related models



For key programming we need:

AVDI

CB012 cable set which is connected to the CB100 OBD cable

TA64 Master key Emulator

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-2

Below articles are similar topic for your reference:

Toyota Corolla 2013+ Keyless Go All Keys Lost Programming by Zed-Full

Toyota Corolla 2016 8A Transponder All Key Lost Programming





Procedures:

The CB012 cable is connected to the internal CAN BUS, the easiest method is to connect to the Smart System Connector which is to be found behind the glove compartment.

Remove the glove compartment to gain access.

In this case, CAN H is the first pin(Yellow) from right to left, and CAN L is the white one nest to the yellow cable.

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-3

The Toyota manufacturer does not have cable color standards and the differ

Connecting CB100 to the OBD plug and starting the Toyota software

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-4

Make sure the AMS for the interface is valid,click “Key Learning”

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-5

Make sure all of the mentioned conditions are correct, click “OK”

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-6

Click “Yes”,confirming that the TA64 will be used as a Master Key Emulator

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-7

Confirm all the conditions showed

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-8

Using TA64 to touch the Start button as per the software instructions, TA64 did its job and it is time now to program the key.

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-9

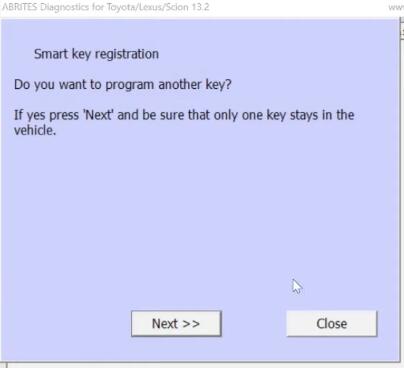

Leaning the key to the car, then click “Close”

Key-Programming-by-AVDI-and-TN011-for-Toyota-CorollaCamry-2020-10

The key is learned, function is ready.



More cases about Toyota key lost, please refer to Toyota All Key Lost Programming.
