AVDI Diagnostics All Keys Lost Programming for Ford Transit Custom 2016

In this instruction,car-auto-repair.com will show you guide on how to use AVDI diagnostics to do all keys lost programming for van-2016 Ford Transit Custom, this van uses mechanical keys.

The whole procedure takes less than 5 minutes and is very easy to be performed. All that it requires in this case is two blank keys for the van and the FR008 special function for Ford. Ford cars require a minimum set of two keys to be stored into the immobilizer memory, I want to insert this here as a reminder.



Software used:

Abrites Diagnostics for Ford

FR008-Key manager, Advanced diagnostic functionality for Ford/Mazda

AMS-Annual Maintenance Subscription



Hardware used:

AVDI-Abrites Vehicle Diagnostic Interface

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-1

Procedures:

Connect AVDI to OBDII port and laptop usb port

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-2

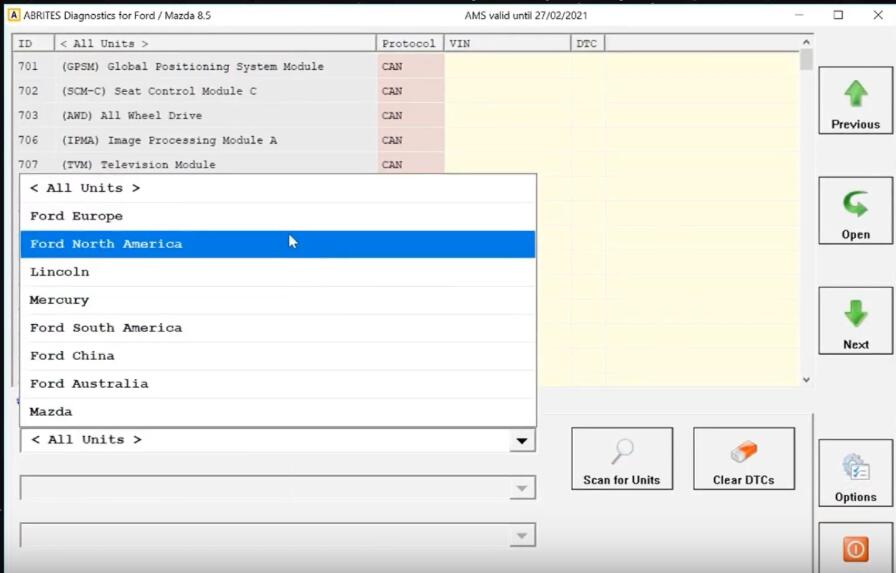

Start the Abrites Diagnostic for Ford software, select the appropriate model.

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-3

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-4

Then open “Key Learning” in the “Special Functions”tab

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-5

Select “Ignition Key Code Erase” then click “Execute”

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-6

A minimum set of two keys is required for the van to run

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-7

Internet connection and active AMS are a prerequisite

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-8-1

Click “Yes”

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-9

The key stored are now deleted and new ones can be programmed.

The key in the IGN slot has now been programmed.

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-10

Inserting the 2nd key in the IGN slot

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-11

Clicking “No” will finalize the procedure

Then click “Yes”

AVDI-Diagnostics-All-Keys-Lost-Programming-for-Ford-Transit-Custom-2016-12

Operation successful, Time to test both keys now
