What is the Meaning of Honda HDS HIM Indicator Lights

Different Honda HDS lights flashing state indicate different meaning of Honda HDS HIM system.It is usually occur when you use Honda HDS HIM to diagnose Honda vehicle.So here I will write this article to explain to the meaning of Honda HDS HIM indicator light state.



Newest Honda HDS V3.102.038 Free Download

Aftermarket Honda HDS Multiplatform Software Installation

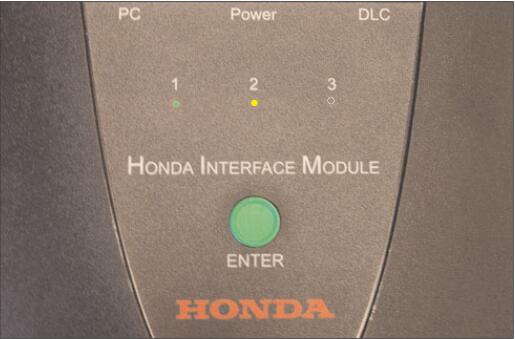

The HIM tool indicator lights 1, 2, or 3 will flash a specific color sequence to indicate the state of the system.For example, the (1) green and (2) yellow lights flashing together indicate the system is in Idle state.

What is the Meaning of Honda HDS HIM Indicator Lights (1)

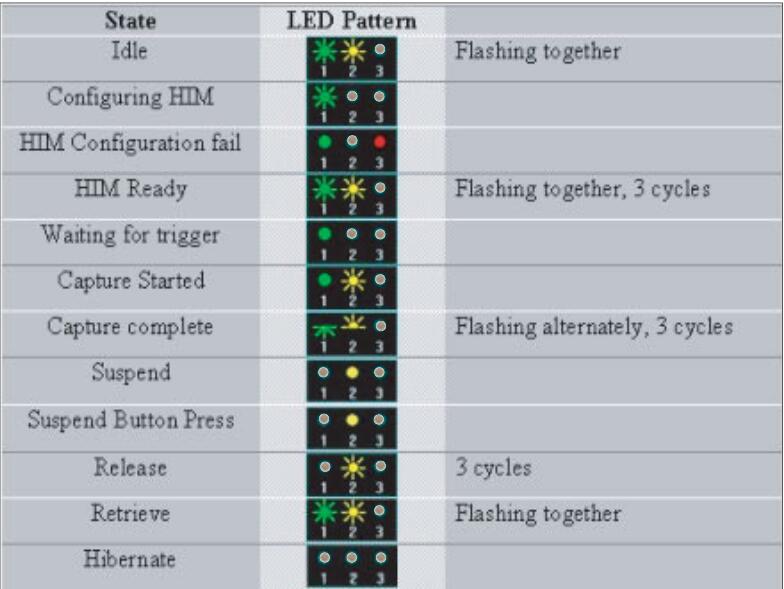

Honda HDS HIM Light Sequence Chart

What is the Meaning of Honda HDS HIM Indicator Lights (2)
