Honda HDS HIM All Key Lost Programming for Accord V6 2007

Most people believe the Honda HDS HIM is special diagnostic software for Honda vehicle model,but it not only a diagnostic tool,but also a key programmer for Honda.So here I want to share this Honda HDS HIM Key Programming guide to you.



Preparation:

Newest Honda HDS V3.102.038 Free Download

Aftermarket Honda HDS Multiplatform Software Installation

How to Install Honda HDS Software for DIY

V3.102.004 HDS HIM Honda With Double Board($99)

TOOGOO(R) Honda HDS HIM V3.012.023 from Amazon($120.87)



Honda HDS HIM Key Programming Guide:

Connect Honda HDS HIM device to your vehicle by OBD port.

Run the Honda Honda HDS HIM software and enter “System Selection Menu”

Select “IMMOBI”

Note:Not all system may be available on this vehicle.Refer to the Service Manual for further information

Honda HDS HIM All Key Lost Programming (1)

Keep ignition ON until the tester directs you to turn the ignition off.

Press[Enter] to continue

Honda HDS HIM All Key Lost Programming (2)

The tester cannot program keys with T5 stamped on the blade of the key or with the word ILCO on the plastic head.These keys can only be programmed with the ILCO key duplicator.

Press[Enter] to continue

Honda HDS HIM All Key Lost Programming (3)

Determining immobilizer system type.Please wait.

Honda HDS HIM All Key Lost Programming (4)

Select “Immobilizer Setup”

IMPORTANT:

For vehicle equipped with keyless Access System,use the actual immobilizer key in the remote to register and diagnose the system

Honda HDS HIM All Key Lost Programming (5)

Then you will see there are 5 options as below picture:

Before programming new keys,you would better to check the number of key.Select “System Check,Number of Keys and Status Log”à”Number Of Keys”

Honda HDS HIM All Key Lost Programming (6) Honda HDS HIM All Key Lost Programming (7)



It show there is 1 key registered

Honda HDS HIM All Key Lost Programming (8)

Then Exit the selection and select “Add and Delete Keys”

This function does the necessary registration for registering new keys or deleting registered keys

Honda HDS HIM All Key Lost Programming (9)

Select “All Key Lost”

Honda HDS HIM All Key Lost Programming (10)

It prompt “Obtain PCM-code(IMMOBILIZER PCM CODE) for In

This vehihcle’s VIN will be required to obtain the password”

Check this article: How to Get PIN Code When Programming Key

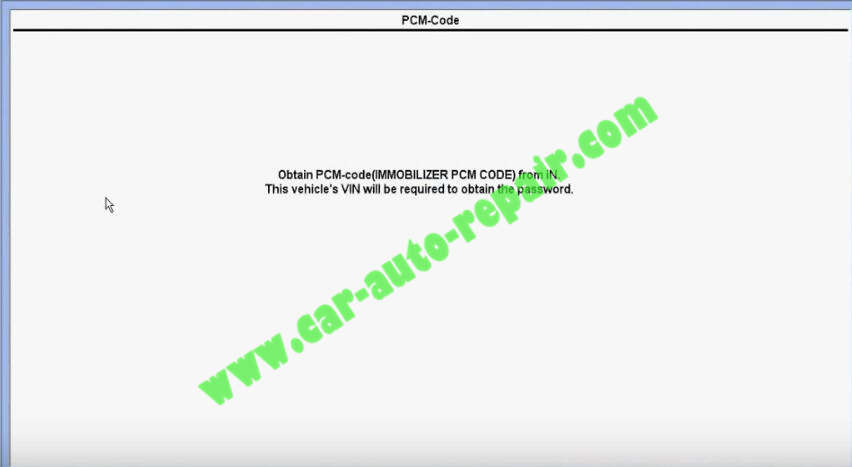

Honda HDS HIM All Key Lost Programming (11)

Enter PCM-Code

Honda HDS HIM All Key Lost Programming (12)

After input the PCM code,it prompt you to enter the key number you want to register.

Here enter “1”

Honda HDS HIM All Key Lost Programming (13)

Then follow the Honda HDS HIM software operations:

Turn the ignition switch off

Honda HDS HIM All Key Lost Programming (14)

Then turn the ignition switch on

Honda HDS HIM All Key Lost Programming (15)

Turn the ignition switch off within 16 seconds

Honda HDS HIM All Key Lost Programming (16)

Turn the ignition switch to on within 20 seconds,without changing the key

Honda HDS HIM All Key Lost Programming (17)

Turn the ignition switch off

Then turn the ignition switch on

It prompt that “Is the immobilizer indicator light turned off?”

Click “Yes” to continue

Honda HDS HIM All Key Lost Programming (18)

Turn the ignition switch off

Turn the ignition switch on

Turn the ignition switch off

Turn the ignition switch on again

The registration of keys has been completed.

Turn the ignition switch off

Honda HDS HIM All Key Lost Programming (18)

Check All Keys to ensure each will start the engine

Honda HDS HIM All Key Lost Programming (20)

Done!
