VXDIAG Device USB/LAN/WIF Connection Configuration Guide

This instruction show you guide on how to set/configure VXDIAG diagnostic device USB/LAN/WIFI connection.



Related Contents:

Latest Ford IDS V126 V121 V118 V117 Software Free Download

Newest JLR SDD V162 V159 +PATCH Software Free Download



Procedures:

VXDIAG USB/LAN Connection

Connect OBDII cable to the vehicle 16pin diagnostic port, and usb/LAN cable to the computer.

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-1



After device boot complete, the power led will flash, and the buzzer will prompt.

Install USB driver for Windows 7/8/8.1/10

The first time to connect USB cable to the computer, Windows will prompt [Installing device driver] . Windows automatically complete driver installation.

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-2

Install USB Driver for Windows XP

The first time to connect USB cable to the computer, Windows will prompt [Found New Hardware]

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-3

Please follow these steps to complete USB driver installation.

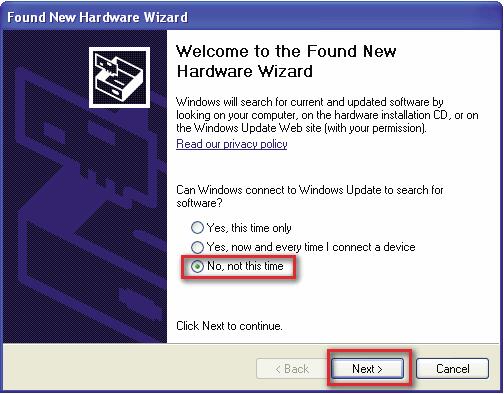

1.Select [No, not this time], then click [Next]

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-4

2.Select [Install Driver Automatically], then click [Next]

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-5

3.Please wait while the wizard installs the software

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-6

4.Complete Found New Hardware Wizard, click [Finish]

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-7

5.Thereafter, it will pop up the second time [Found New Hardware Wizard], same as above.

6.The USB Driver installed completed.

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-8



After USB driver is successfully installed,PC LED will flashing.

7.Start VX Manager program,select [Device],then click [Configure], Connection Type select [Auto],click [Save],Restart VX Manager program

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-9

Please make sure the device is connected.

Run VX Manager, The information of device will be displayed in “Device Manager”

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-10



VXDIAG WiFi Connection

Connect OBDII cable to the vehicle 16pin diagnostic port, and computer connect to the device through WiFi.

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-11

1.Click VCX-WiFi, and check [Connect automatically] ,then click [Connect]

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-12

2.Setting obtain an IP address automatically

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-13

3.Start VX Manager program,select [Device],then click [Configure], Connection Type select [WLAN],click [Save

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-14 VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-15



4.Restart VX Manager program,computer have been connected to the device through WiFi

VXDIAG-Device-USBLANWIF-Connection-Configuration-Guide-1

After the device is connected, you can License Update、VXDIAG Firmware Update、OEM Driver Installation
