How to Use VVDI Prog Read/Write BMW XEQ384 FRM

When you repair a BMW FRM data damaged problem,you need to read and write data for BMW FRM.Here is a example on how to use VVDI Prog to read/write data.



VVDI Prog Read/Write BMW XEQ384 FRM Steps:

Run VVDI Prog software,then select:

Type:8-OTHER

Brand:BMW

Chip:FRM-E-SERIES-XEQ384-READ

Then click “Connection diagram”

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-1

It show you the diagram connection on BMW FRM PCB

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-2 How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-3



Click “Read” button

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-4

After data reading finish,click “Save” button to save BMW FRM data on your PC

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-5

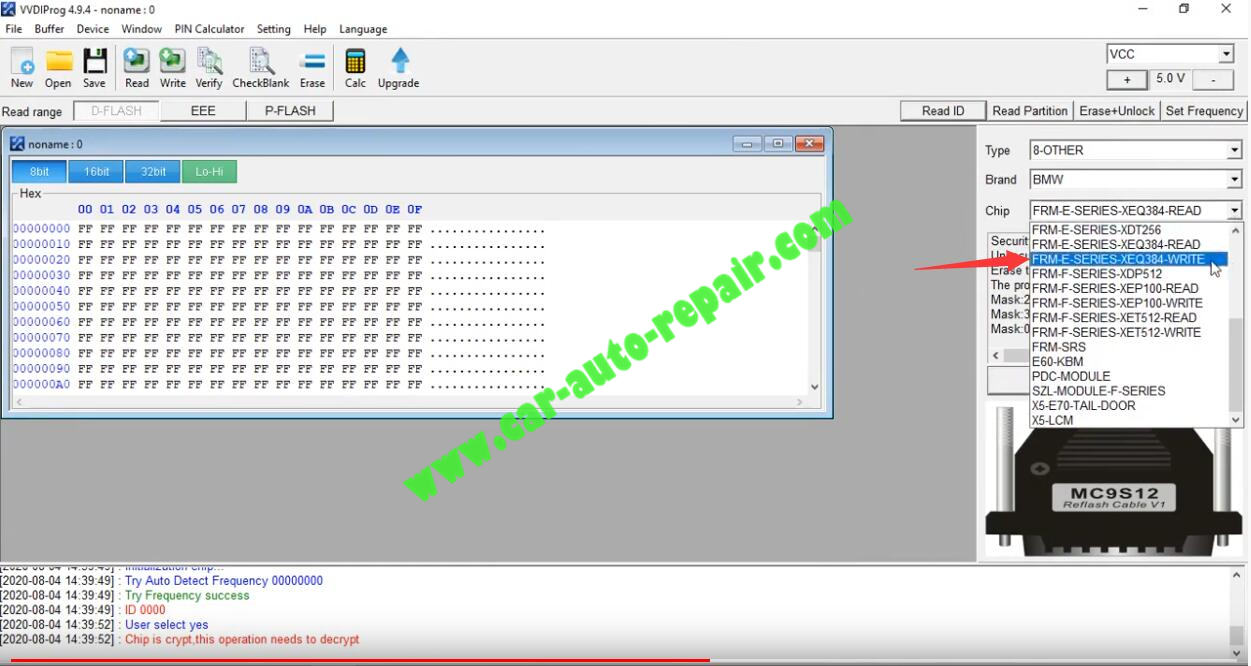

Now select “FRM-E-SERIES-XEQ384-WRITE”

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-6

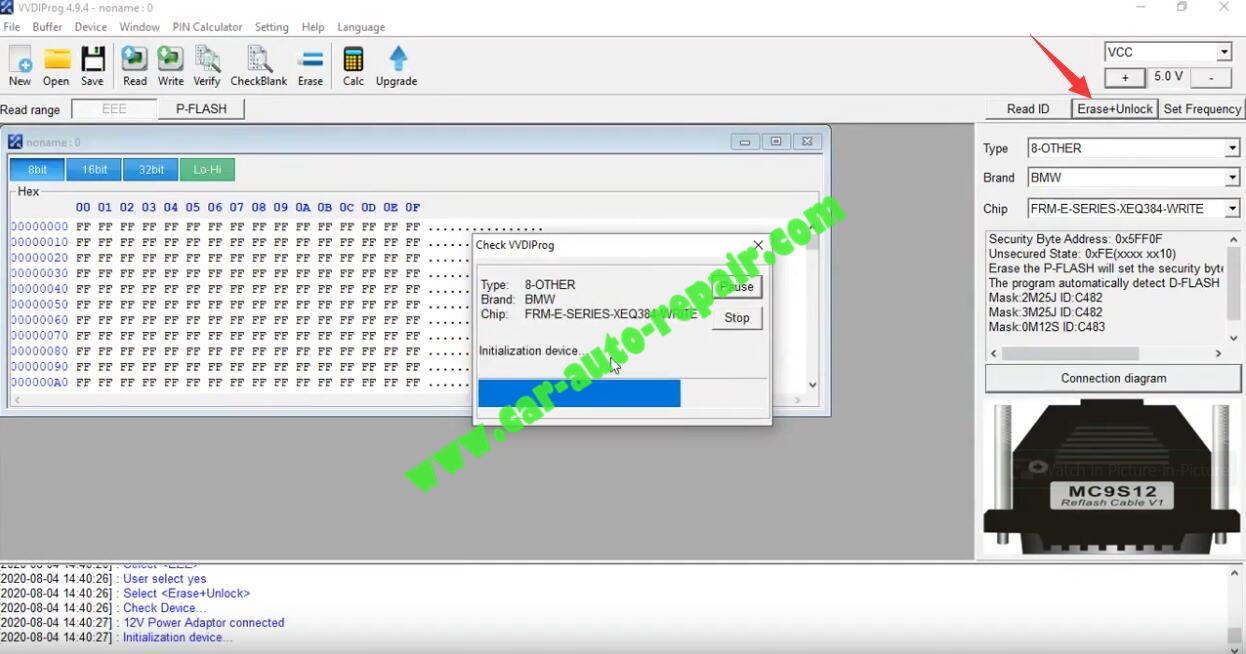

Click “Erase+Unlock”,it will erase data on BMW FRM

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-7

Click “Open” button to open working data file,then click “Write”

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-8 How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-9



Writing data

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-10

When it finish,it will prompt you with operation success

How-to-Use-VVDI-Prog-ReadWrite-BMW-XEQ384-FRM-11
