Carparog Read & Write Motorla MCU Data for Benz Sprinter

May 7, 2020 auto ECU Chip Tuning 0

This post show you procedures on how to use Carprog programmer to read & write Motorla MCU data for Mercedes Benz Sprinter.

Carparog-Read-Write-Motorla-MCU-Data-for-Benz-Sprinter-1

Preparations:

Latest Carprog Programmer Software Free Download

Carprog and A10 adapter



Procedures:

Step 1:Build connection between Motorola HC08,solder harness on HC08 chip,please refer to : Carprog Read Motorola MC68HC08xx Series Gudie (HC08AZ32)

Carparog-Read-Write-Motorla-MCU-Data-for-Benz-Sprinter-2

Step 2:Connect A10 adapter to Carprog mani unit,and run Carprog software to select “MCU”–>”MOTOROLA”–>”HC08 v0.5″

Carparog-Read-Write-Motorla-MCU-Data-for-Benz-Sprinter-3

Step 3:Click Setting icon

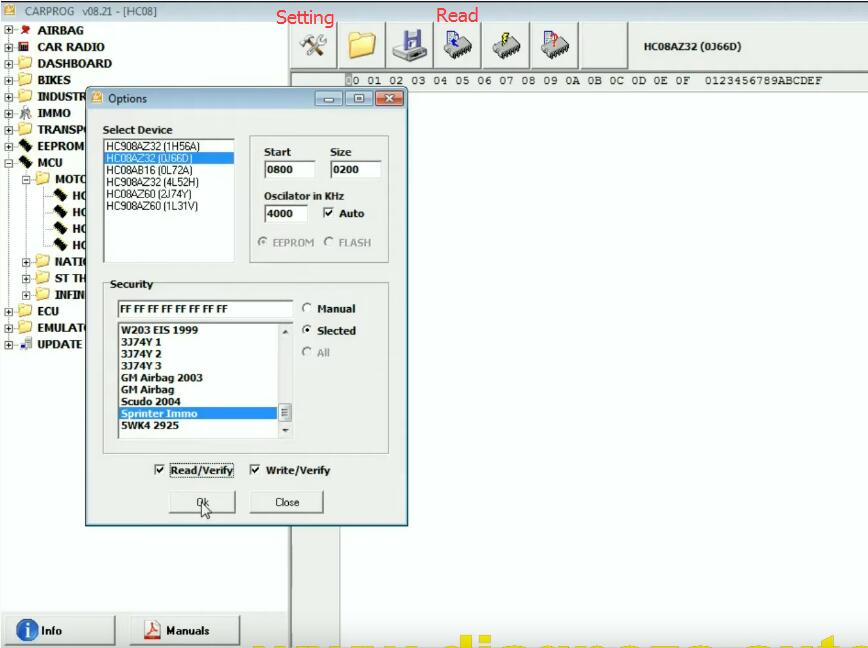

Select “HC08AZ32(0U66D)”–>”Sprinter Immo”,click “OK” to continue–>”Read”

Carparog-Read-Write-Motorla-MCU-Data-for-Benz-Sprinter-4

Read data show as below

Carparog-Read-Write-Motorla-MCU-Data-for-Benz-Sprinter-5

You are available to modify data,then write new data back.
