How to Install Volvo Premium Tech Tool PTT Software

This article show the guide on how to install Volvo Premium Tech Tool PTT diagnostic software.





Before install Volvo PTT software,click: Volvo PTT Premium Tech Tool All Version Free Download

To download the Volvo Premium Tech Tool software,the article include:

Volvo Premium Tech Tool v2.05.20

Volvo Premium Tech Tool v2.04.87

Volvo Premium Tech Tool v2.04.55



Volvo Premium Tech Tool Installation Guide:

Volvo PTT Installation Minimum Hardware Requirement:

Computer/Processor: Intel Core 2 Duo(1.6GHz) or equivalent AMD Athlon64*2
 Memory(RAM):  3GB,more memory improves performance
 Hard Disk:  20GB of free hard disk space
 Optical Drive:  Internal/external DVD x8 drive
 Display:  XGA(1024*768 PIXELS) or higher resolution monitor with 16 bit color settings
 Input device:  Keyboard and mouse or compatible pointing device
 Internet connection:  Network using 10 Mbps or higher speed network adapter and/or WLAN and/or 33.6 Kbps or higher speed moderm(not supported for Win7/8 clients)
 Miscellaneous:  USB interface required.A battery-pack that may provide 500 mA via USB.



Volvo Premium Tech Tool PTT 2.04.87

1/ open in admin setClientID.exe, set ID: 190430

2/ TechToolInstaller_Dev.reg

3/ TT204-Prerequisites.cmd (client update ID: 190430)

4/ TT204-MainInstallationPackages.cmd

5/ TT204-MainInstallationPackages2.cmd

6/ TT204-Patches.cmd

(Don’t open tech tool)

Open client update and make all update 2.04.87(it is very long)

Copy and Replace APCIPLUSDATA.DLL

C:\Program Files (x86)\Tech Tool\Tech Tool\Apciplus

(Replace the file APCIPLUSDATA.DLL thas is on M151124 user)

BaldoLocal.Data.dll >>

C:\Program Files (x86)\Tech Tool\Tech Tool\BaldoLocal

VolvoIt.Waf.Login.Ui.dll >>

C:\Program Files (x86)\Tech Tool\Tech Tool\Login

BaldoLocal.sdf >>

C:\ProgramData\Tech Tool

Copy and replace apci+ update / in these paths:

C:\ProgramData\Tech Tool\Waf\DtR

and C:\ProgramData\Tech Tool\Waf\OtD

Open tech tool

Tech Tool and Update Product Information



Volvo ptt 2.04.55 installation guide:

Volvo ptt2.04.55 needs the updated operating system

disable antivirus and firewall

mount the image file with Daemon tools ….
start the setup as an administrator ..

Click OK

Click Next

Click Install

Click Finish

Click Next

Client id:123456,click next

Click Install

Click Finish

Wait…installation….continue

Click Next

Click Next

Click Install

Click Finish

Wait…installation…continue…

Finish installing all applications… restart pc

After reboot…Open client update

Search update

Install all update

No other update available…close this window

Open folder.. Patches, open folder.. 05

install in order of appearance the various applications

when you have this warning, click on .. no.
continue installing all other applications ….. finished installing all … reboot the pc

After reboot… open folder 06….. install all

Folder 15.. install all

Folder 30.. install all

when you have this warning, click on .. no.
continue installing all other applications ….. finished installing all … reboot the pc

After reboot… open folder..31   install all

Folder..32.. install all

when you have this warning, click on .. no.
continue installing all other applications ….. finished installing all … reboot the pc

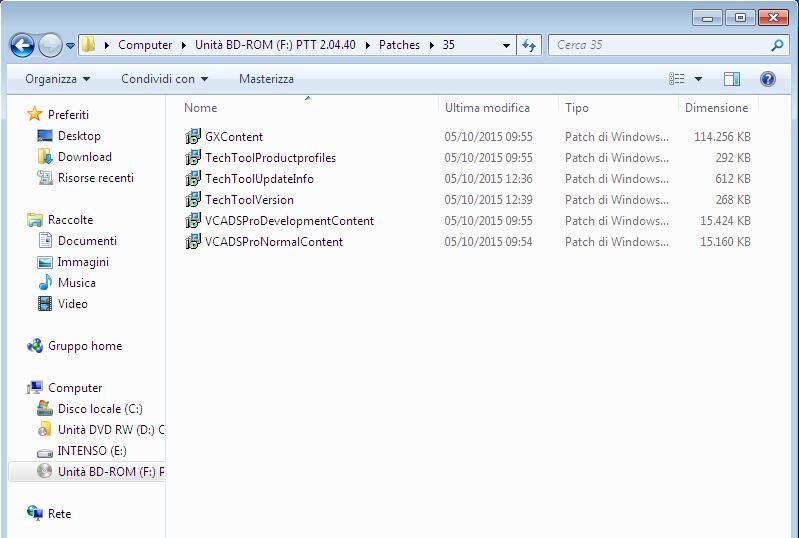

After reboot  open folder   35.. install all

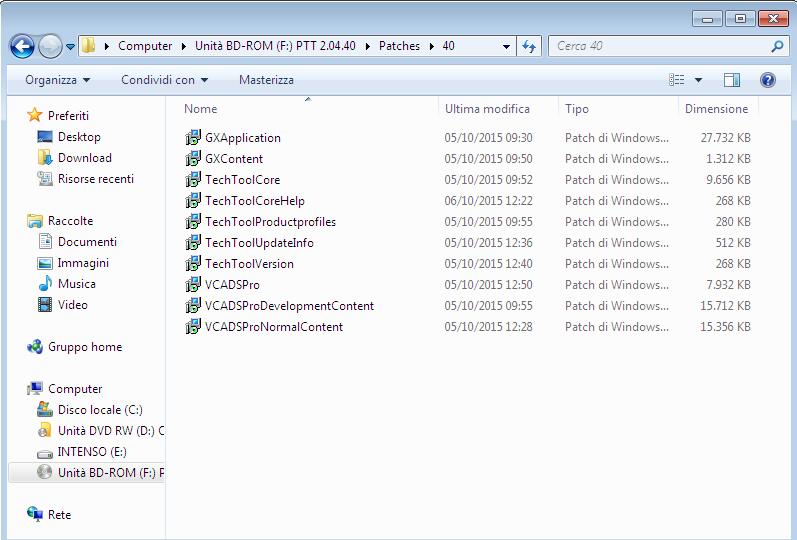

Folder.. 40 install all

..same for all….to the folder 55

when you have this warning, click on .. no.
continue installing all other applications ….. finished installing all … reboot the pc

After reboot… click.. Start->all program->Tech tool->Log Manager…. run as administrator

Click on… stop baf service..wait stop service…..

Ok… do not close the page.. ( minimize)

Open folder ..activator , copy this file

Paste in: C:\programdata\techtool   replace

From folder activator… copy this file

Paste in: C:\ program files\tech tool\tech tool\baldolocal   replace

From folder activator 2.04.40, copy this file

Paste in : C:\ program files\tech tool\ tech tool\ login   replace

Click start baf service

Wait message

Click Ok

Close all

TechTool start from the desktop as administrator … to start … more

Select.. work offline

User ID: xx40645   ok



Work



Tech tool installation success!
