Benz W204 Rear Led Lights Retrofit code with DAS

This instruction is about Benz W204 Rear Led Lights retrofit code with DAS.



1Start DAS and do a quick test

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-1

2Open rear sam and go to development data

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-2

3Select control unit adaption

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-3

4Go to the Control unit adaptions(Variant Coding)

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-4

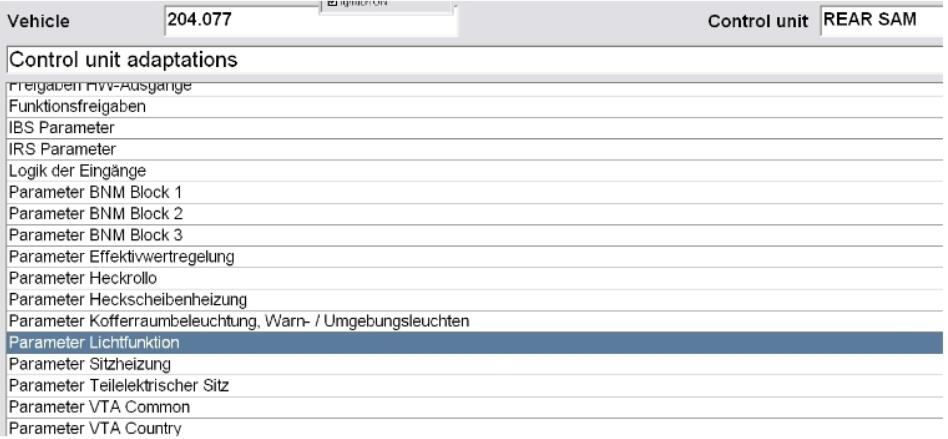

5Go to the Parameter Lichtfunction:

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-5

6Change the coding according to the below screenshots:

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-6

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-7

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-8

7Save the config

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-9

8Select yes

Benz-W204-Rear-Led-Lights-Retrofit-code-with-DAS-10

Now shut down DAS, shut down the car and lock it, now start the car again and everything should be working correctly.
