BMW F18 Coding for Full LCD Instrument 6WB Retrofit by E-sys

Here show the how to use BMW E-sys to do coding on BMW configuration.In this example i show you on BMW F18 NBT full LCD instrument retrofit,it include reverse image 3AG.



Full LCD Code:6WB

NBT Unit:609,6NL,6NR

Reverse Image:3AG



Preparations:

BMW E-sys 3.33.0/3.32.1/3.30.01 Coding Software Free Download

E-sys Launcher Pro & E-sys Launch Premium Free Download

2024.03 BMW Rheingold ISTA+ 4.46.14 4.23.14 ISTA-P 3.71 Free Download



Procedures:

Read out original FA

Click “Read” and save it

After then click “Edit”

BMW-F18-Coding-for-Full-LCD-Instrument-6WB-Retrofit-by-E-sys-1

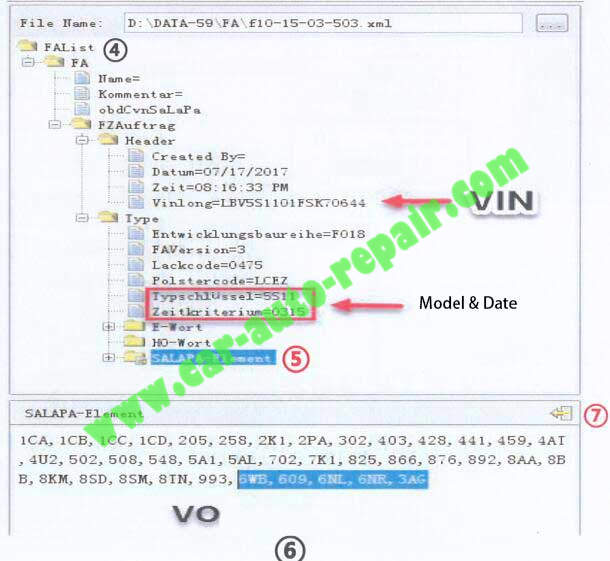

Click 4 to show detail

Click 5 “SALAPA”,it will show VO detail

Add new code into VO

BMW-F18-Coding-for-Full-LCD-Instrument-6WB-Retrofit-by-E-sys-2

Click 8 “Save”

Then click 9 “Back”

BMW-F18-Coding-for-Full-LCD-Instrument-6WB-Retrofit-by-E-sys-3

Right click FA to activate coding for NBT,PDC and instrument.4

BMW-F18-Coding-for-Full-LCD-Instrument-6WB-Retrofit-by-E-sys-4

Note:This method would not change original gateway configuration,the retrofit coding above will restore if you use ISTA to do flashing/programming.
