How to Use BMW E-sys Flash BMW F11 ECU

This guide aim at BMW F11 ECU flashing by BMW E-sys.Thanks everyone help to modify the guide,especially shawnsheridan.And before starting Flash BMW F11 ECU,please know the risk that you need to take responsibility if you break something as a consequence of following this guide.

Preparation:

BMW E-sys Download

How to Install BMW E-sys

BMW Coding/Flashing/Progrmming PDF+Video Guide

2024.03 BMW Rheingold ISTA+ 4.46.21 4.23.14 ISTA-P 3.71 Free Download



Remember always to create a backups before starting an endeavour like this!

All this could not have been done without primarily shawnsheridan and a bunch of other users.

Prerequisites: ENET cable (BMW ICOM better if programming needed), E-Sys & PsdZData files (data 54.0 is used in this guide). It’s important that the PsdZData files are the FULL version as the Lite version does not include all necessities for flashing. And last prerequisite: a BMW F10 or F11. I’m doing this on my F11 520d. This guide should work for all Fxx chassis.



E-Sys 3.26.0 is used for screen dumps. Other versions may differ slightly.

In this document, I’ll be upgrading these ECU’s:

CMB_MEDIA

HU_CIC

KOMBI

ZGW



The steps for upgrading other ECU’s should be the same as doing these four. Just remember to identify the dependencies and select appropriately in step 15 in the below procedure.

When flashing involves ZGW it is widely said that the ZGW module should be updated BEFORE other modules. The TAL (transaction list) generated by E-Sys should take care of this. But if you want, you could flash the ZGW all by itself and then restart and do the rest. The steps remain the same.

Flashing all modules at once is also as easy as flashing individual modules. Just select all the modules in step 15 (still blFlash, swDeploy, cdDeploy, and ibaDeploy columns)

HU_CIC Depends (PreRequisites) on: 38 + 14 (BOTH ZGW)

KOMBI Depends on: 38 + 10 + 14 + 53 + 57 (ZGW + HU_CIC + ZGW + CMB_MEDIA + HU_CIC)

CMB_MEDIA Depends on: 57 (HU_CIC)

ZGW does not have dependencies.



How to identify dependencies in E-SYS:

Open TAL IN TAL Editor, and it will show you under ECU (TalLine_ID) if it has any PreRequisite ECU (TalLine_ID’s).

As you can see here, TalLine_ID=13 (Kombi) has a PreRequisite of TalLine_ID=11 (HU_CHAMP):

BMW E-sys Flash BMW F11 ECU (1)

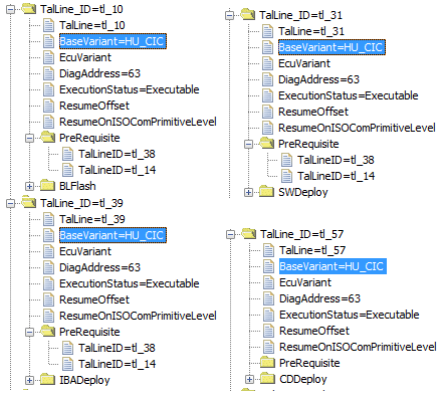

HU_CIC:

BMW E-sys Flash BMW F11 ECU (3)

KOMBI

BMW E-sys Flash BMW F11 ECU (4)

CMB_MEDIA:

BMW E-sys Flash BMW F11 ECU (5)

ZGW:

BMW E-sys Flash BMW F11 ECU (6)

Here are the basic steps:
Go to Comfort Mode => TAL-Calculating
– Read and Save FA
– Activate FA
– Read and Save SVT Actual as SVT_ist
– Create an SVT Target
Under KIS/SVT Target Calculation Strategy, select Complete Flash
Select I-Step (shipm.) to match your original I-Level as read and shown in VCM I-Step (Shipment)
I-Step (target.) will be unselectable as it is fixed based on current PSdZData I-Level
Do a KIS/SVT Target Calculation and Save as SVT_soll
– Do a TAL Calculation and Save as SVT_tal

Go to Expert Mode => TAL-Processing
Load TAL (SVT_tal)
Load SVT Target (SVT_soll)
Select “Read FA” button.
Check radio button for “read VIN out of FA”
On ECU Tab, uncheck let top box in column “All” (All checked boxes should toggle to unchecked)
On ID Base Row for Kombi, make check boxes in blFlash, swDeploy, cdDeploy, and ibaDeploy columns.
Press Check software availability
Press Start and it will proceed with processing TAL to flash Kombi with new firmware.



Please go on your reading for details.

1.Connect external charger (at least 50AMPs, preferably 70AMPs) to the car battery. Connect laptopto power supply. This step is essential!

2.Turn lamp switch to parking light – this will keep the ignition on beyond 20 minutes.

Turn light switch to Parking Lamp On – first position/stop to the right.

Please refer to Appendix B(at end of article) for further info regarding the light switch and the 20 minutes.

3.Connect via “Connection via Gateway URL”

In the Connection window, select the ‘Connection via gateway URL’ instead of via VIN, and use the car’s IP address with the default port number 6801.
Passed with flying colors (else flashing ZGW will fail)

BMW E-sys Flash BMW F11 ECU (7)

4.Select Comfort Mode à TAL Calculating

bmw-esys-flash-f11-ecu-6



5.Read and save FA

BMW E-sys Flash BMW F11 ECU (8)

6.Activate FA

BMW E-sys Flash BMW F11 ECU (9)

7.Read and save SVT Actual as “SVT_ist”

BMW E-sys Flash BMW F11 ECU (10)

8.Create an SVT Target:

a.Select Complete Flash

BMW E-sys Flash BMW F11 ECU (11)

b.Select I-Step (shipm.) to match vehicles shipment I-Step level

i.Select Expert Mode VCM button

ii.On the right bottom box, select “Master” tab

iii.In I-Steps box, click on “Read” button.

iv.Integration Steps boxes above will be populated with the data. Note down the IStep (Shipment).

c.I-Step (target.) will be unselectable as it is fixed based on current PSdZData I-Level. Select the appropriate level in I-Step (shipm.) as obtained in step above

d.Do a KIS/SVT Target Calculation and Save as “SVT_soll”

e.Do a TAL Calculation and Save as “SVT_tal”

9.Go to Expert Mode à TAL-Processing

10.Load TAL [SVT_tal) created in step 8.e

11.Load SVT Target (“SVT_soll”) created in step 8.d

12.Click the “Read FA” button

this will result in the FA_aus_VCM.xml file:

13.Check radio button for “read VIN out of FA” and click the “Read VIN” button

14.On ECU Tab, uncheck let top box in column “All” (All checked boxes should toggle to unchecked)

15.On ID Base Row for HU_CIC, CMB_MEDIA, KOMBI and ZGW check the boxes in blFlash, swDeploy,cdDeploy, and ibaDeploy (please see Appendix C) columns.

16.Press Check software availability (this, among other, ensures that you have the correct PSdZdata and the FULL version of them)

17.Press Start and it will proceed with processing TAL to flash Kombi with new firmware

18.Cross your fingers and watch it work



Troubleshooting

If coding ACSM, the airbag needs be locked. This can be done by using the following procedure. If one does not have ISTA/D (Rheingold), it can be done with E-Sys or Tool32:

E-Sys Transmitter:

1) Click “External Applications” in the left menu.

2) Click “External Application”

3) Double-click “Transmitter”

4) Double-click “ACSM verriegelung_schreiben”



Tool32:

1) Launch C:\EDIABAS\Bin\TOOL32.EXE

2) Hit F3

3) Load C:\EDIABAS\Ecu\ACSM4.prg

4) In the “Select Job: F01” window, select steuern_verriegelung_schreiben

5) Hit F5

6) “Results” window should show “JOB_STATUS = OKAY”

Appendix A – list of ECU’s

Thanks to shawnsheridan on bimmerfest.com for compiling this list.

AAG – Trailer Hitch Module

ACC – Active Cruise Control

ACSM – Advanced Crash and Safety Management

AHM – Trailer module

AMP – Amplifier

AMPH – HiFi Amplifier

AMP_TOPHB – Top HiFi Amplifier/System

AMP – Amplifier/System

AMP_TOPHB – Top HiFi Amplifier/System

ASA – Active steering

ASD – Active Sound

BDC – Body Domain Controller (ZGW, FEM, REM, SZL, IHKA, TCB, CAS, JBBF Combined)

CAS – Car Access System

CID – Central Information Display

CMB_ECALL – Combox Emergency Caller

CMB_MEDIA – Combox Media

CVM – Soft top module (Convertable Top)

DKOMBI – MFID Instrument cluster (6WB)

DDE – Digiatl Diesel Electronics

DME – Digital Motor Electronics

DSC – Dynamic Stability Control

DWA – Immobilizer (Alarm)

DVDC – DVD Changer

EGS – Electronic Transmission Control Unit

EHA – Electronic ride-height control

EHC – Electronic ride-height control

EKPM – Electronic fuel pump control

EMF – Electromechanical parking brake

EPS – Electronic power steering

FEM_BODY – Front electronics module (ZGW, FRM, CAS, and JBBF Combined)

FEM_GW – Front electronics module gateway

FKA – Rear-cabin automatic A/C

FLA – Automatic High Beam Camera Only

FRM – Footwell module (Lighting)

FRR – Active cruise control

FZD – Function unit roof

GWS – Gear selection switch

HKFM – Rear Lift-Lid (Trunk)

HKL – Rear Lift-Lid (Trunk)

HU_ENTRY – Head Unit Entry Level (no iDrive System)

HU_CHAMP (Head Unit CIC Mid) (iDrive system)

HU_CIC – Head Unit CIC High (iDrive system)

HU_NBT – Head Unit NBT (iDrive system)

HC2 – Lane Change Warning

HUD – Heads-Up Display

ICM_QL – Integrated Chassis Management

ICM_V – Integrated Chassis Management Vertical (Vertical dynamics management)

IHKA – Integrated automatic heating/air conditioning system

JBBF – Junction box electronics

JBE – Junction box electronics

KAFAS – Cameras System (LDW, AHB, SLI)

KOMBI – Instrument cluster

LHM – LED Headlights main light modules (fan and LEDs for the cornering light, low-beam and high-beam headlights).

NIVI – Night Vision Camera

PDC – Park distance control

PMA2 – Parking Assist

RDC – Tyre pressure control

REM – Rear Electronics Module

RSE – Rear Seat Entertainment

SM – Seat module / Seat Memory

SME – Accumulator-management electronics

SMBF – Seat module / Seat Memory Passenger

SZL_LWS – Steering column control unit

SVT – Servotronic

TCB – Telematics Communications Box (BMW Assist)

TMS – LED Headlights (stepper motors for the Adaptive LED Headlights and LEDs for the side marker light,

the positioning light and the turn indicator)

TRSVC -All around view camera

TBX – iDrive Controller Touch Handwriting Module

VDM – Vertical dynamics Management

ZBE – iDrive Controller

ZGW – Central gateway module



Appendix B

On new cars (7/2014 F30) the ignition will not stay on even if you turn light switch. After 15 minutes or so ignition will turn off. This is not a problem though, just remember to cycle ignition before svt soll calculation and before starting TAL processing (actual flash). Ignition will stay on as long as the TAL is running.

Thank you ap90500



Appendix C

ibadeploy is needed only if you are flashing a headunit that has IBA (electronic user manual). It doesn’t do any damage if it is selected without a reason though.

Thank you ap90500

Again, BIG THANKS to all contributors here!!!!!!!!!!
