BMW E90 iDrive Legal Disclaimer Disable by NCS Expert

In this tutorial I am going to disable the Legal Disclaimer that pops up on the iDrive unit of an E90.This excercise is purely for example and can be adapter for different modules and different changes.



Preparation:

NCS Expert BMW Coding Software Download

NCS Expert program and coding guide

CS Expert Change BMW Vehicle Order (VO)



Here is another article about BMW iDrive Legal Disclaimer Disable:

How to disable remove BMW F Series iDrive legal disclaimer screen



BMW E90 iDrive Legal Disclaimer Disable Procedures:

Run the INPA software,once NCS is open Choose File from the top menu

BMW E90 iDrive Legal Disclaimer Disable (1)

Select Load Profil

BMW E90 iDrive Legal Disclaimer Disable (2)

Choose Fister profile if you have obtained it or new_expertmode / car/key memory.

BMW E90 iDrive Legal Disclaimer Disable (3)

Then Press F1 or choose VIN/ZCS/FA

BMW E90 iDrive Legal Disclaimer Disable (4)

Now press F3 or choose ZCS/FA f. Ecu

BMW E90 iDrive Legal Disclaimer Disable (5)

Select the model car, In this case E89 which is for the E90

BMW E90 iDrive Legal Disclaimer Disable (6)

Chose the Module in which to read the ZCS/FA, In this case we chose CAS.

BMW E90 iDrive Legal Disclaimer Disable (7)

Upon seeing the above screen with the FG and FA Values displayed simply hit F6 or Back.

BMW E90 iDrive Legal Disclaimer Disable (8)

You will now get a list of installed modules that were identified when communication with the chosen module as before.Choose Process ECU to work with a single module.

BMW E90 iDrive Legal Disclaimer Disable (9)

Select the Module/ECU you would like to work with, In this case the CAPPL. (CCC Unit)

BMW E90 iDrive Legal Disclaimer Disable (10)

Press OK on the following screen.

BMW E90 iDrive Legal Disclaimer Disable (11)

Now you can choose READ ECU to perform a read out of the module.

BMW E90 iDrive Legal Disclaimer Disable (12)

You will get a NETTODAT.TRC file popup simply close it.

BMW E90 iDrive Legal Disclaimer Disable (12)

Navigate to the Work folder which resides in your NCSEXPER directory. You will locate a file FSW_PSW.TRC

This file was created when READ ECU was performed and contains the coding values for that module.

Rememeber this file is overwritten each time a readout of a module is performed. It would be advised to make a backup of this file in the event you need to restore coding settings.

Once you have made a backup, Right click and rename the file to FSW_PSW.MAN

BMW E90 iDrive Legal Disclaimer Disable (14)

Yes to make the change.

BMW E90 iDrive Legal Disclaimer Disable (15)

Now right click and choose Open With…

BMW E90 iDrive Legal Disclaimer Disable (16)

Select Notepad and tick Always use the selected program to open this kind of file. Then Press OK.

BMW E90 iDrive Legal Disclaimer Disable (17)

Now we can make changes to the coding file. In this case we are changing LEGAL_DISCL

BMW E90 iDrive Legal Disclaimer Disable (18)

As you can see from the screen above we have changed this to nicht_aktiv which will now disable the Idrive warning.

BMW E90 iDrive Legal Disclaimer Disable (19)

Choose file and click save.

BMW E90 iDrive Legal Disclaimer Disable (20)

Now switch back to NCSExper and choose file and click Load Profil

BMW E90 iDrive Legal Disclaimer Disable (21)

Choose the Manual PSW_FSW and hit ok.

BMW E90 iDrive Legal Disclaimer Disable (22)

Now press Process ECU so we can tell NCSExper what module we would like to code to.

BMW E90 iDrive Legal Disclaimer Disable (23)

Choose the CAPPL modules and press ok.

BMW E90 iDrive Legal Disclaimer Disable (24)

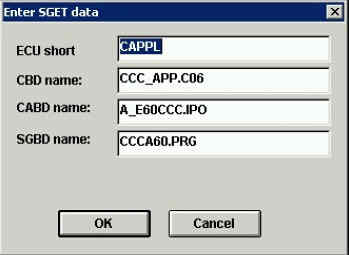

Press Ok.

BMW E90 iDrive Legal Disclaimer Disable (25)

Now we are ready to code the PSW_FSW.man to our CAPPL (CCC) unit. Make sure the JOBNAME is set to SG_CODIEREN.If it is not simply choose Job and choose SG_CODIEREN. Make sure the get coded: is CAPPL (Or the unit you will be working with)

Hit Execute Job to perform coding.

Underneath CAPPL a status will appear intially saying CODING ACTIV and then CODING ENDED.

Once this is disabled you may power off the car wait 10 seconds and repower up to identify whether your coding changes have taken.

BMW E90 iDrive Legal Disclaimer Disable (26)
