Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD(OBDSTAR Key Master)

This post test OBDSTAR X300 key master on Toyota Hilux VIGO 2010 G chip 72 all key programming.

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (1)



And here are some related content:

Toyota All Key Lost Programming

Toyota G Chip Programmig

Toyota Reiz 2010 G Chip All Key Lost Programming



Procedures:

Toyota G chip key have G stamped on key

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (2)

Connect OBDSTAR Key Master to vehicle via OBD port,and enter system menu to select “TOYOTA/LEXUS”à”TOYOTA/LEXUS V31.09”

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (3)

For all key lost,when you insert the new key the security light don’t off

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (4)

Turn on the ignition with new key

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (5)

Operate the OBDSTAR Key master to select “Immobiliser”

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (6)

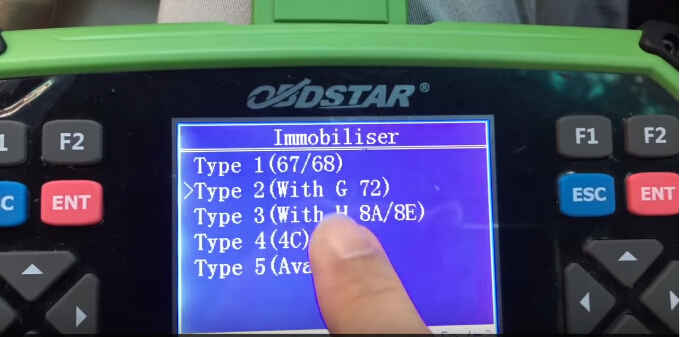

Select “Type 2(With G 72)”

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (7)

Select “Reset immobiliser” (All keys lost)

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (8)

Follow the prompt to switch ignition off

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (9)

Then it will prompt to switch ignition on.

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (10)

Switch the ignition off and remove the key,the press the “ENT” button to continue

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (11)

Switch ignition on

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (12)

Now the security light steady prompt

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (13)

Switch ignition off and remove the key

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (11)

Then OBDSTAR Key Master will show you below options:

Program keys as the following steps within 120 seconds:

A:Program 2 master keys and 1 sub keys.

1.Insert the first master key,turn on the ignition,and wait for seconds

2.Insert the second master key,turn on the ignition,and wait for 5 seconds.

3.Insert the third sub key,turn on the ignition switch,and wait for 5 seconds.Security light turn off,and programming is finished

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (14) Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (15) Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (16)

B:Program 1 master key and 1 sub key:

1.Insert the first master key,turn on the ignition ,and wait for 5 seconds

2.Inser the second sub key,turn on the ignition switch,and wait for 5 seconds.

3.Turn on the ignition on switch quickly for 5 times.Security light turns off,and programming is finished.



C:Program 1 master key:

1.Insert the master key,turn on the ignition,and wait for second.

2.Turn on the ignition switch quickly for 5 times.Security light turns off,and programming is finished.



Now the security light is off when you turn on ignition,and it can start the engine.

Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (17) Toyota Hilux 2010 G Chip 72 All Key Lost Program by OBD (18)
