Toyota RAV4 G Chip All Key Lost Programming via OBDII

Many auto locksmiths want to get the high-efficient method of Toyota G chip all key lost programming, no need removing parts.So here comes a guide on Toyota RAV4 G chip all key lost programming by OBDSTAR X300 DP PAD via OBD.



Device: X300 DP tablet key programmer full version

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-1

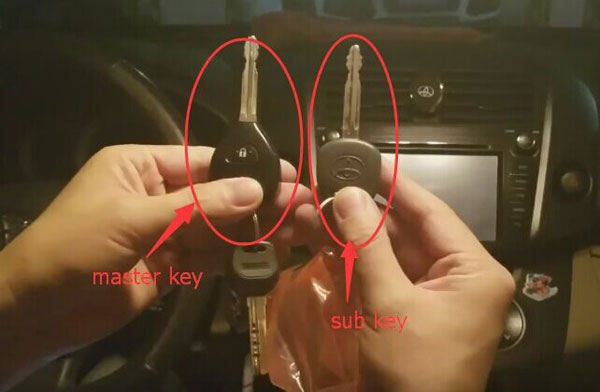

Master key and sub (G) key

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-2

G chip key

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-3



Connect X300DP with your vehicel through OBDII Port

Click “Diag Program” on the main menu

Choose “Type 2(with G72)”

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-4

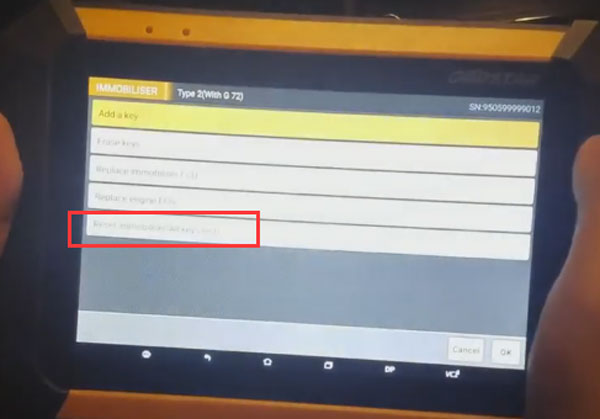

Choose “Remote immobilizer(All key lost)”

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-5

Then switch ignitino off

Click OK to continue

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-6

Switch ignition on

Click OK to continue

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-7

It will prompt you to switch ignition off and remove the key

After doing that, click OK

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-8

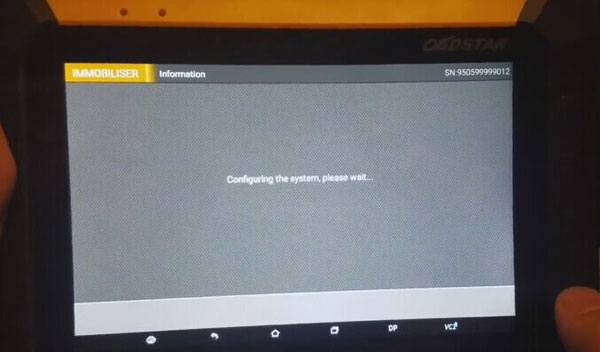

It is configuring the system, wait for a while…

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-8



Then insert the removed key and switch ignition on

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-10

It is configuring the system, wait…

Switch ignition off and remove the key again

Then you should program keys as the following steps within 120 seconds:

 A Program 2 master keys and 1 sub keys

1 Insert the first master key,turn on the ignition,and wait for 5 seconds.

2 Insert the second master key,turn on the ignition,and wait for 5 seconds.

3 Insert the third sub key,turn on the ignition switch,and wait for 5 seconds.Security light turn off,and programming is finished.

B Program 1 master key and 1 sub key.

1 Insert the first master key,turn ono the igniton,and wait for 5 seconds.

2 Insert the second sub key,turn on the ignition switch,and wait for 5 seconds.

3 Turn ono the ignition switch quickly for 5 times.Security light turns off,and programming is finished.

C Program 1 master key

1 Insert the master key,turn on the ignition switch,and wait for 5 seconds.

2 Turn on the ignition switch quickly for 5 times.Security light turns off,and programming is finished.

OBDSTAR-X300-DP-all-key-lost-2013-toyota-RAV4-with-G-11

Here we program 1 master key and 1sub key.

Click OK to begin program keys

Step1: Insert the first master key, turn on the ignition and wait for 5 seconds…

Step2: insert the second sub key (the G chip key), turn on the ignition switch and wait for 5 seconds

Step3: turn on the ignition switch quickly for 5 times, the security light will turn off, the programming is finished.

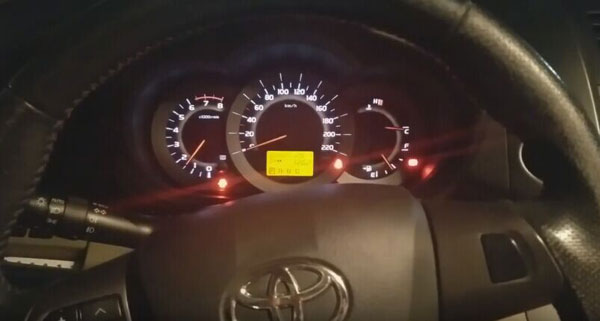

Done! Program key for 2013 toyota RAV4 with G successfully!
