This instruction show you guide on how to perform Paccar EPA10 to EPA13 MX Engine a new or cleaned DPF installation Test by JPRO.
Related Contents:
2024 JPRO Noregon Commercial Fleet Diagnostics Free Download
Install DPF is supported on:
✓ Paccar EPA 10 to EPA 13 all MX engines.
The Install DPF test is for installing either a new or cleaned DPF. The Install Cleaned/New DPF procedure must only be performed after a cleaned or new diesel particulate filter has been installed.
This procedure will reset the vehicle’s ash level to reflect that status of the DPF.
1 Select Install DPF and press Enter or click Start button.
2 The Install DPF dialog will be displayed.
3 Select either Install New DPF or Install Cleaned DPF from the Test Selection. Test specific information will be displayed depending on which test is selected.

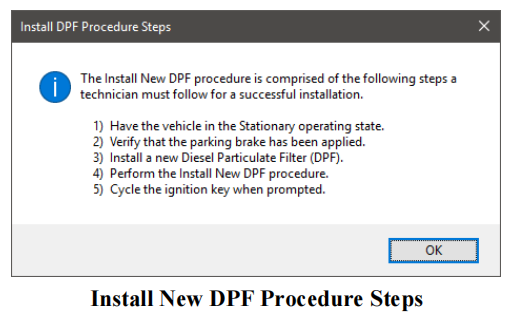

4 Select the Procedure Steps to view detailed instructions for a successful installation.
5 Ensure all preconditions are met.
6 Click the Install button to begin the procedure.
7 When the procedure has completed, instructions to key off the engine will be displayed.
8 After engine has been keyed off, a countdown will begin on the Install DPF dialog.
9 At the end of the countdown, instructions to key on the engine will be displayed.
10 After engine has been keyed on, Procedure Successfully Completed will be displayed.
11 Click the Exit button to return to test selection.
