Mercedes Benz W204 ESL Unlock and Renew Guide

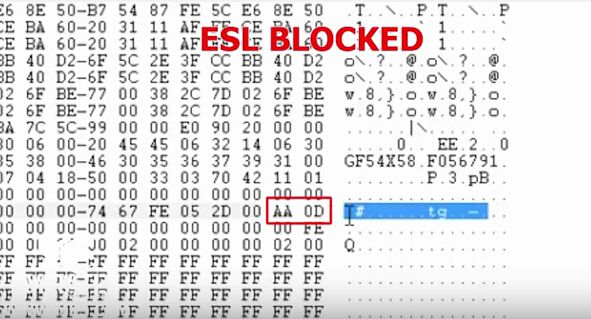

Mercedes Benz W204 ESL get broken easily,and if you go to stealer to replace a new one,it will cost more than $500.So is there a better method solve this problem?Here I share the method of how to unlock and renew W204 ESL.You can provide a better price for your customers.

vvdi-mb-tool-renew-blocked-w204-esl-1

What you need for unlocking and renewing the W204 ESL:

VVDI MB BGA Tool

vvdi-mb-tool-renew-blocked-w204-esl-2

VVDI MB NEC ELV adaptor

vvdi-mb-tool-nec-elv-adaptor-3

2 Ways To Repair Benz ELV/ESL Steer Lock Problem

How to repair Mercedes ESL(Motor Trouble)

Procedure of Mercedes Benz W204 ESL unlock & renew:

Step 1: Open ESL emulator and take out the PCB. Desolder the IC chip form PCB and solder it to VVDI MB ELV adaptor.

vvdi-mb-tool-renew-blocked-w204-esl-4 vvdi-mb-tool-renew-blocked-w204-esl-5

Fix ELV adaptor to VVDI MB Tool.

vvdi-mb-tool-renew-blocked-w204-esl-6

Step 2: Open VVDI MB software, choose “ESL Function: Adaptor” and “Chassis: W204, W207, W212” and click “Read ESL data”.

vvdi-mb-tool-renew-blocked-w204-esl-7

It will show ESL is locked, click OK to continue.



Step 3: Click “Unlock W204 ESL”. Now VVDI MB Tool with NEC ELV adaptor is trying to unlock ESL. (This process may cost about 2~3 hours)

vvdi-mb-tool-renew-blocked-w204-esl-8



Step 4: After that click “Read ESL data” then click “Check ESL damage”.

vvdi-mb-tool-renew-blocked-w204-esl-9

It will show ESL is unlocked (normal status), click OK and “Save ESL data”. Save this new bin file and rename it to distinguish it from the old one.

vvdi-mb-tool-renew-blocked-w204-esl-10



Step 5:Now solder the IC chip back to ESL and connect ESL to VVDI. Click “ESL Tests”, set “ESL Function: OBD” and click “Read ESL data”, you can see ESL is renewed to normal status successfully!

vvdi-mb-tool-renew-blocked-w204-esl-11
