Mercedes Benz ELV Repair by CGDI MB (OBD Method)

I wrote a article on Benz ELV repair guide before: 2 Ways To Repair Benz ELV/ESL Steer Lock Problem.You need to remove the NEC chip then use VVDI MB Tool to restore the damaged data.Now here I introduce another device (CGDI MB Prog) to repair Benz ELV trouble by OBD port.



Vehicle Models Apply:

Benz W204,W207,W212



Step 1:Determine if the ELV motor work correctly.

Remove the ELV control module from vehicle with wire connector connecting.And connect the clip on the yellow line of the OBD line to the K-line (K-line is the thinnest) of ELV

Mercedes Benz ELV Repair by CGDI MB (1)

Connect CGDI MB to vehicle via OBD port,then run the software and click”Read ELV Data”

Mercedes Benz ELV Repair by CGDI MB (2)

The software will show the ELV information after data reading successfully.

Mercedes Benz ELV Repair by CGDI MB (3)

Then click “Check ELV”,if the ELV is work,it will prompt “ELV is OK!”.If the ELV is damaged (motor trouble),you need to replace a ELV motor or replace it by ELV emulator.

Mercedes Benz ELV Repair by CGDI MB (4)



Step 2:Erase ELV

Click “Get” to calculate the “Erase password”,then it will show “Erase password calculated successfully”

Mercedes Benz ELV Repair by CGDI MB (5)

Click “Erase ELV”,software will prompt you “Erase the ELV success”

Mercedes Benz ELV Repair by CGDI MB (6)

Then click “Read ELV Data” again,it show the ELV information as below

Mercedes Benz ELV Repair by CGDI MB (7)



Step 3:Calculate IMMO Password

Click “Read EIS Data”

Mercedes Benz ELV Repair by CGDI MB (8)

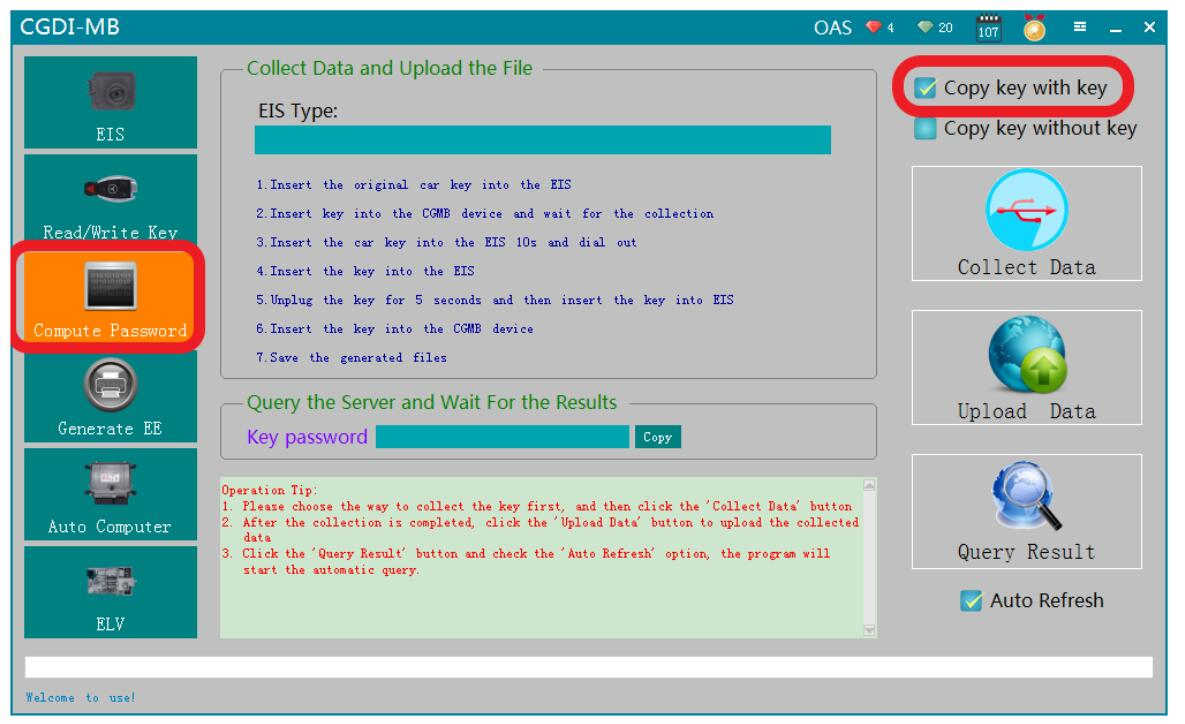

Select “Compute Password”àCheck “Copy key with key”(If all keys lost,choose copy key without key)

Mercedes Benz ELV Repair by CGDI MB (9)

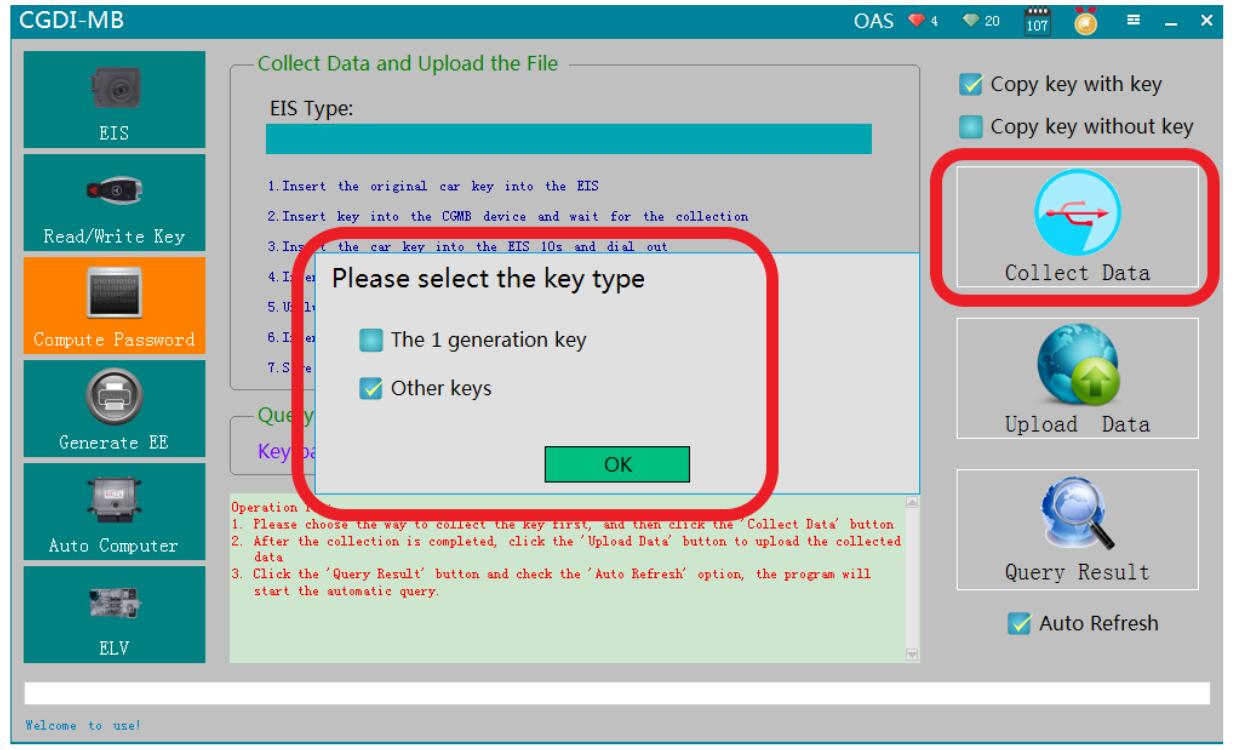

Default “other key s “, click OK

Mercedes Benz ELV Repair by CGDI MB (10)

Then according to the software to operate,you will get the IMMO password.

Mercedes Benz ELV Repair by CGDI MB (11)

Click “Copy”,then select “EIS” menu to paste the password

Mercedes Benz ELV Repair by CGDI MB (12)

Then click “Save EIS Data” (Please use default file name)

Mercedes Benz ELV Repair by CGDI MB (13)

Insert the simulation key into the EIS about 30 seconds

Mercedes Benz ELV Repair by CGDI MB (14)

Then click “Wipe the EIS”

Mercedes Benz ELV Repair by CGDI MB (15)

Erase the EIS success!

Mercedes Benz ELV Repair by CGDI MB (16)

Read the EIS data again,

Mercedes Benz ELV Repair by CGDI MB (17)

Then click “Load EIS Data” to load the EIS data you save before.

Mercedes Benz ELV Repair by CGDI MB (18)

Click “Write EIS Data”

Mercedes Benz ELV Repair by CGDI MB (19)

Follow the software to insert the simulation key into the EIS about 30 seconds.

Mercedes Benz ELV Repair by CGDI MB (20)

Write EIS data successfully.

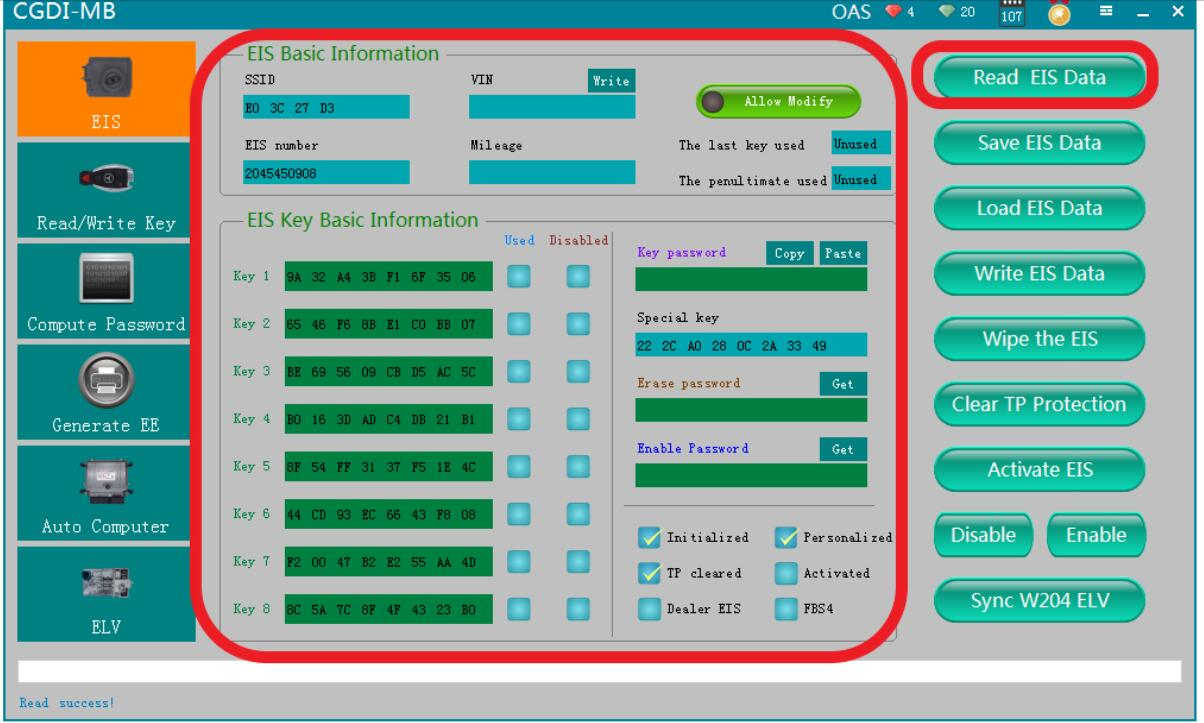

Read EIS Data again to check information

Click “Sync W204 ELV”,it will prompt “Sycn W204 ELV success,please insert key into EIS for activation”



After activation successfully,the ELV will work correctly.
