Mercedes Benz Airbag Reset by Carprog

Mercedes Benz airbag sensor after car crash and airbag deployment can by locked (Control unit faulty) and must be replaced. Even after small accident Airbag sensor will write in internal memory special error message “crash data stored” or “computer fault” and after you need to exchange very expensive sensor to new one. With our MB Airbag Reset Tool you can reset and repair airbag computer in your office in 1 minute.

Mercedes Benz Airbag Reset by Carprog (1)

We are glad to present new device for MB Airbag repair. You can see some differences between

old and new devices bellow:

Link to PC Read DTC Error Clear DTC Error Clear Crash Data EEPROM Read/Write
Old Tool Serial +/- + +/-
New Tool USB + + + +





Carprog Software:

Latest Carprog Crack v10.93 Free Download

How to Install Original & Crack Carpog Full V10.93 Software





ECU types supported by MB Airbag Rest Tool:

Benz Airbag Reset by Carprog (2)



No need to remove from car!

EEPROM read/write, Crash Data clear,

Error Memory read/erase.

Pin 9 – K line

Pin 5 – +12V

Pin 6 – GND



Benz Airbag Reset by Carprog (3)



No need to remove from car!

EEPROM read/write, Crash Data clear, Error

Memory read/erase.

Pin 9 – K line

Pin 5 – +12V

Pin 6 – GND



Benz Airbag Reset by Carprog (4)



No need to remove from car!

EEPROM read/write, Crash Data clear, Error

Memory read/erase.

Pin 9 – K line

Pin 5 – +12V

Pin 6 – GND

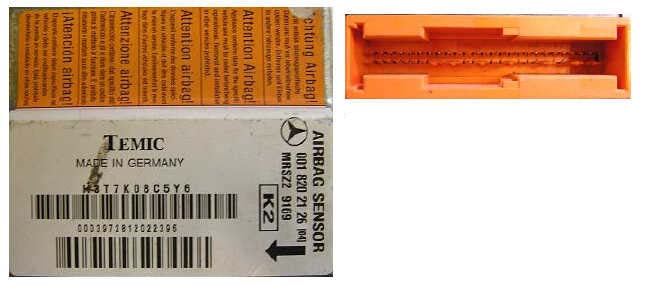

Benz Airbag Reset by Carprog (5)



No need to remove from car!

EEPROM read/write, Crash Data clear,

Error Memory read/erase.

Pin 9 – K line

Pin 5 – +12V

Pin 6 – GND



Benz Airbag Reset by Carprog (6)



No need to remove from car!

EEPROM read/write, Crash Data clear,

Error Memory read/erase.

Pin 32 – K line

Pin 1 – +12V

Pin 56 – GND



Benz Airbag Reset by Carprog (7)



No need to remove from car!

EEPROM read/write, Crash Data clear,

Error Memory read/erase.

Pin 32 – K line

Pin 1 – +12V

Pin 56 – GND



Using these pictures you can erase airbag “on the table” – you must connect GND, +12V,And Diagnostic line between airbag sensor and MB Airbag Eraser, connect power supply to GND and +12V and use Eraser like in the car. After erasing don’t connect power supply again – MB airbag sensor is very sensitive and can write “controller malfunction” error after connection on the table without car.



OBDII – MB 38 pin connection diagram :

Mercedes Benz Airbag Reset by Carprog (8) Mercedes Benz Airbag Reset by Carprog (9)

Mercedes Benz Connector Mercedes Benz 38 Pins Connector
7 30(Diagnostic)
13 30(Diagnostic)
16 3(+12V)
4 1(GND)
5 1(GND)
