JLR SDD Datalogger Function Operations Guide

This article show a guide on how to use JLR SDD Datalogger function to diagnose vehicle trouble.



Preparations:

How to Install JLR SDD Diagnostic Software

Newest JLR SDD V154 Software Free Download



Procedures:

Connect JLR SDD device to vehicle,run JLR SDD software.

JLR SDD Datalogger Function Operations Guide (1)

Click SDD

JLR SDD Datalogger Function Operations Guide (2)

Click[Auto VIN Read]

JLR SDD Datalogger Function Operations Guide (3)

Reading VIN…

JLR SDD Datalogger Function Operations Guide (4)

Click [Diagnosis]

JLR SDD Datalogger Function Operations Guide (4)

Symptom Selection and click [Continue]

JLR SDD Datalogger Function Operations Guide (6)

Click [Recommendations]

JLR SDD Datalogger Function Operations Guide (7)

Click [Run]

Complete vehicle – Datalogger

JLR SDD Datalogger Function Operations Guide (8)

Select signals Select [Control module supply voltage]

JLR SDD Datalogger Function Operations Guide (9)

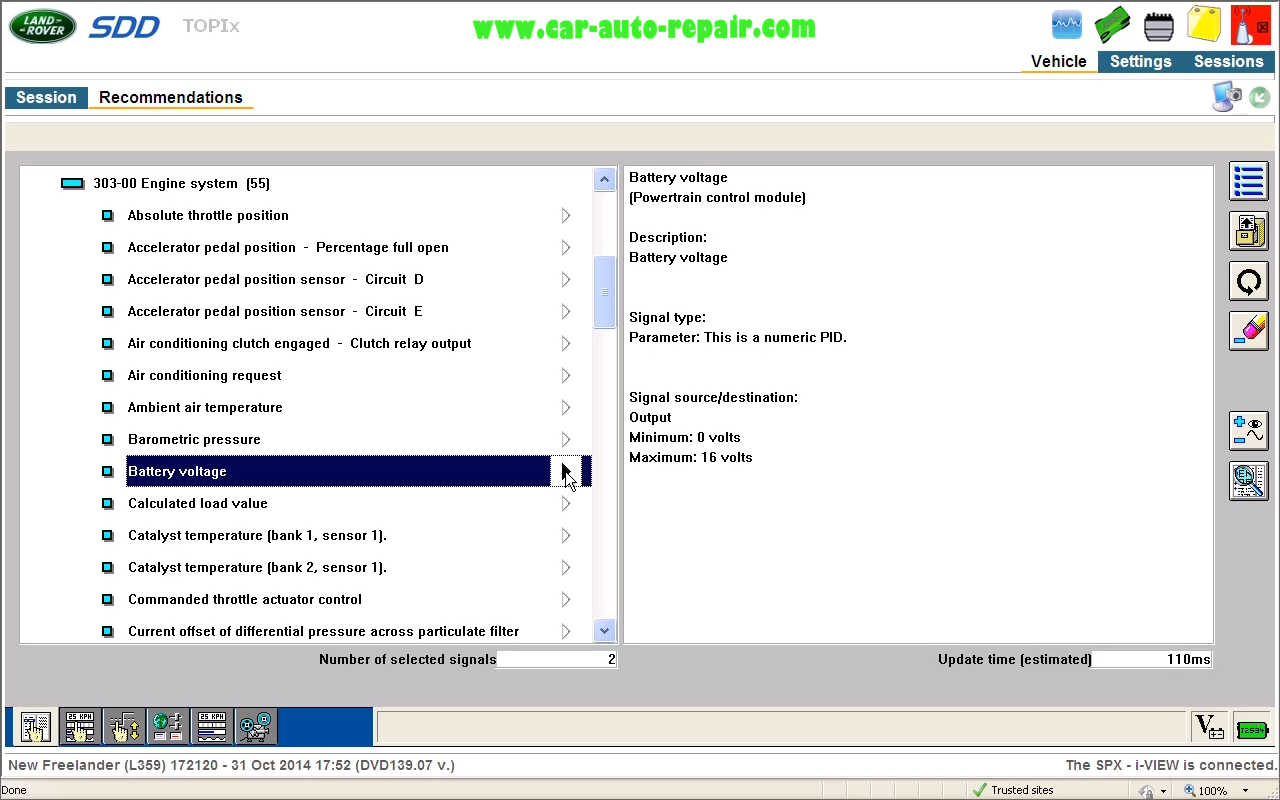

Select [Battery voltage]

JLR SDD Datalogger Function Operations Guide (10)

Select [Lighting status – Puddle lamp]

JLR SDD Datalogger Function Operations Guide (11)

Select [Mirrors motor outputs – Mirror heat output]

JLR SDD Datalogger Function Operations Guide (12)

Click JLR SDD Datalogger Function Operations Guide (13) icon

JLR SDD Datalogger Function Operations Guide (14)

Click play JLR SDD Datalogger Function Operations Guide (15)

JLR SDD Datalogger Function Operations Guide (16)

Set the ignition switch to ignition on. Press tick to continue

JLR SDD Datalogger Function Operations Guide (17)

PCM and SASM

JLR SDD Datalogger Function Operations Guide (18)

Click Select JLR SDD Datalogger Function Operations Guide (19)

JLR SDD Datalogger Function Operations Guide (20)

Select [Exit]. Press tick to exit

JLR SDD Datalogger Function Operations Guide (21)
