Hydraulic Power System Charge Pressure Test for New Holland T6030 Tractor

This instruction show you guide on how to perform hydraulic power system charge pressure test for New Holland T6030 tractors.



Related Contents:

2022 New Holland Electronic Service Tools 9.6 9.2 CNH EST Software Free Download

New Holland Agricultural & Construction Parts+Service Manual Free Download



Apply to Below Models:

T6030 / T6050 / T6070 / T6080 / T6090 Power Command,T6030 / T6050 / T6070 / T6080 / T6090  Range Command Tractor



Procedures:

1.Remove the charge pressure switch.

Hydraulic-Power-System-Charge-Pressure-Test-for-New-Holland-T6030-Tractor-1

2.Install special tool 380200015 in place of the charge pressure switch.

Hydraulic-Power-System-Charge-Pressure-Test-for-New-Holland-T6030-Tractor-2

3.Install 27 bar( 300 lbf.in2) gauge 297167 using hose 292246 and quick release coupler 291924.

Hydraulic-Power-System-Charge-Pressure-Test-for-New-Holland-T6030-Tractor-3

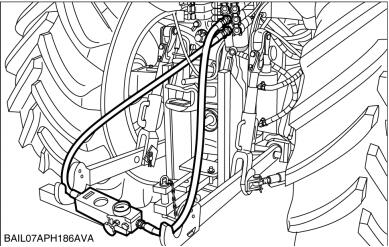

4.Install a 180 ltr/min flow meter between remote control valves 1 and 2. Ensure the inlet hose of the flow meter is installed into the extend port of valve No. 1.

Fully open the load valve on the flow meter.

Set the remote control valve flow control to 100 % flow.

Hydraulic-Power-System-Charge-Pressure-Test-for-New-Holland-T6030-Tractor-4

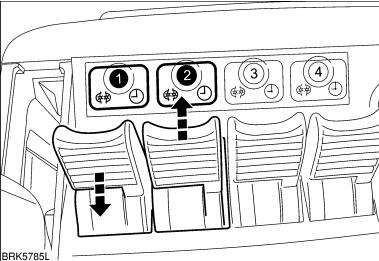

5.Set the remote control valve lever No. 2 to the ‘Float’ position.
