How Use G-Scan3 Calibrate FFCM for Jeep Renegade/Compass 2017

FFCM is abbreviate for Forward Facing Camera Module,it monitors the Forward Facing Camera.If you JEEP is equipment with Forward Facing Camera Module,you need to perform FFCM calibration using a scan tool after replacing a windshield.So here car-auto-repair.com show you guide on how to use G-Scan3 to do calibration for Jeep Renegade/Compass FFCM.

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-1



Procedures:

Connect G-scan3 to Jeep Renegade obd port,then enter menu to select “JEEP”–>”RENEGADE”–>”2017”–>”HALF(Haptical Lane Feedback)”

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-2

Select “Special Function”–>”FFCM Calibration”

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-3

This procedure will calibrate the FFCM and should be performed whenever the FFCM and/or the windshield has been replaced.

Click “Continue”

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-4

Before starting to drive the vehicle confirm the following:

Tire pressure at correct PSI

No additional items in vehicle that increase vehicle weight

Windshield is clean

Confirm that camera has unobstructed view

Press “CONTINUE”

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-5

Read the description carefully and make sure to satisfy all the required conditions,and then press “CONTINUE”

Note:You will be required to drive the vehicle above 40km/h on a straight road with no other vehicle ahead.

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-6

Drive the vehicle until the percentage reaches 100%.

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-7

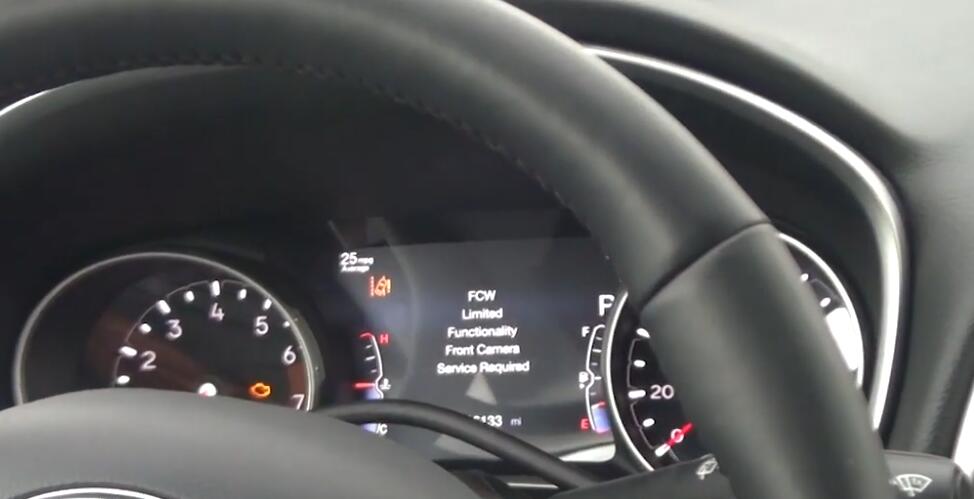

FCW Warning light will be displayed on the dashboard

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-8

FCW OFF button is turned ON

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-10

In progress

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-11

When it reaches 100%,you will be required to stop the vehicle and cycle the ignition off then to run position.And press “CONTINUE”

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-11

FFCM Calibration Completed

How-Use-G-Scan3-Calibrate-FFCM-for-Jeep-RenegadeCompass-2017-12

More projects of JEEP,please refer to:Jeep Trouble Repair
