How to Use XPROG Programmer Reset BMW FRM3

In this instruction,car-auto-repair will show you guide on how to use XPROG programmer to reset BMW FRM3.And for more FRM topic,please check here:BMW FRM Projects

How to Use XPROG Programmer Reset BMW FRM3 (1)



XPROG Programmer Reset BMW FRM3 Procedures:

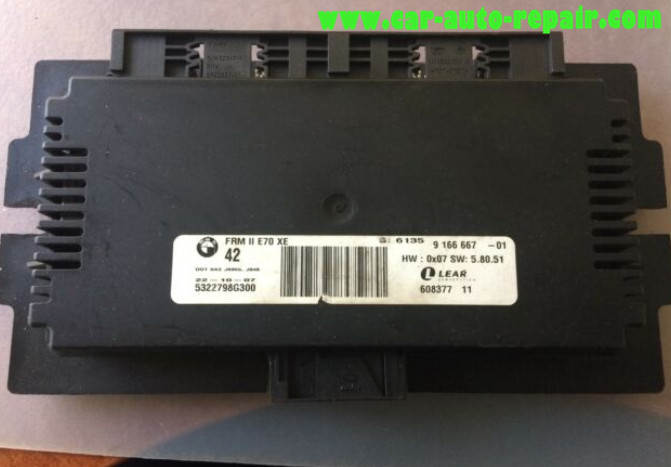

Remove BMW FRM module from vehicle,then disassemble cover.

Open the diagram connection

How to Use XPROG Programmer Reset BMW FRM3 (2)

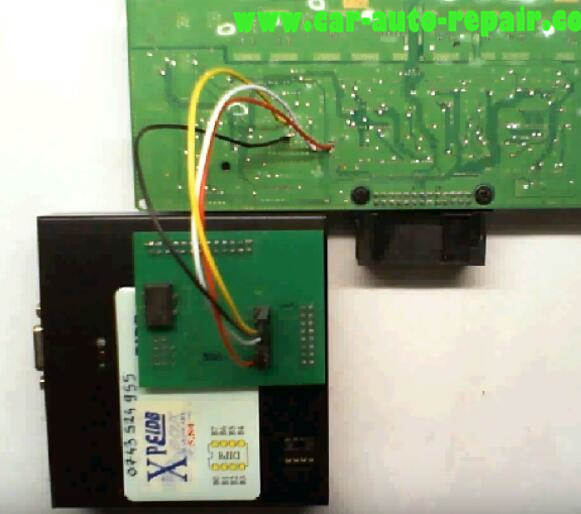

And follow above diagram to weld 3M25J adapter on FRM PCB

How to Use XPROG Programmer Reset BMW FRM3 (3)

Connect XPROG programmer to PC and run XPROG software

How to Use XPROG Programmer Reset BMW FRM3 (4)

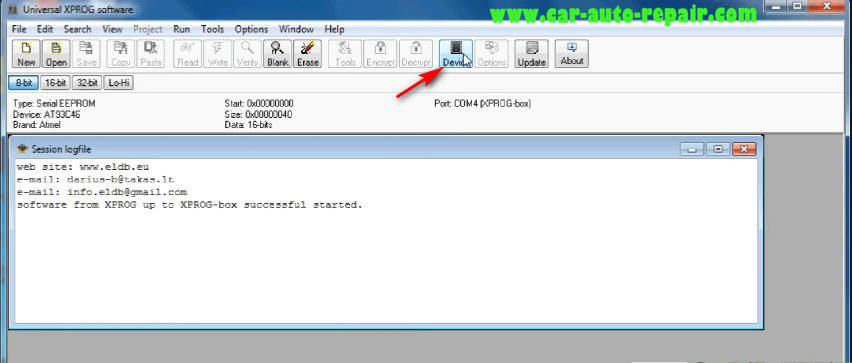

Then click “Device” button on the toolbar

How to Use XPROG Programmer Reset BMW FRM3 (5)

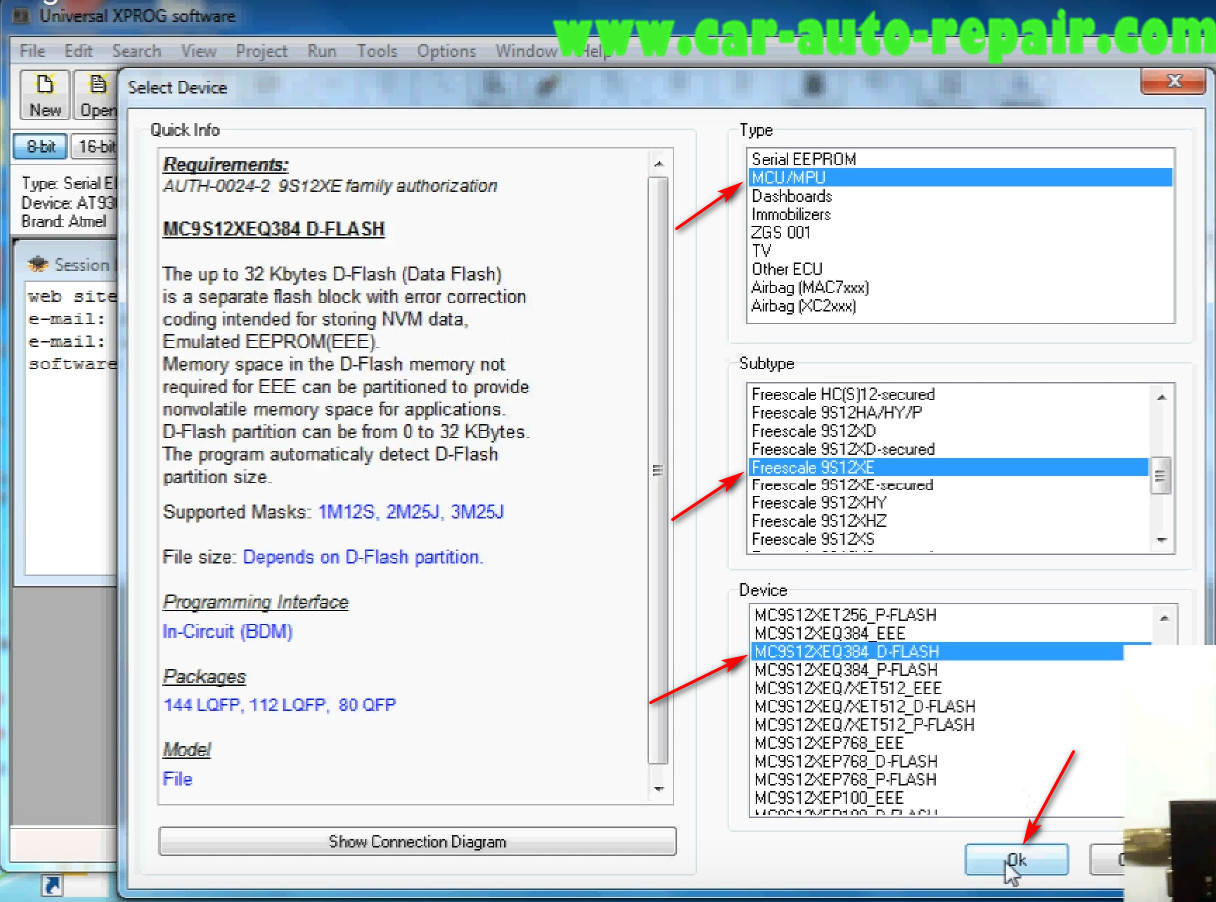

Select “MCU/MPU”–>”Freescale 9S12XE”–>”MC9S12XEQ384_D-FLASH”

How to Use XPROG Programmer Reset BMW FRM3 (6)

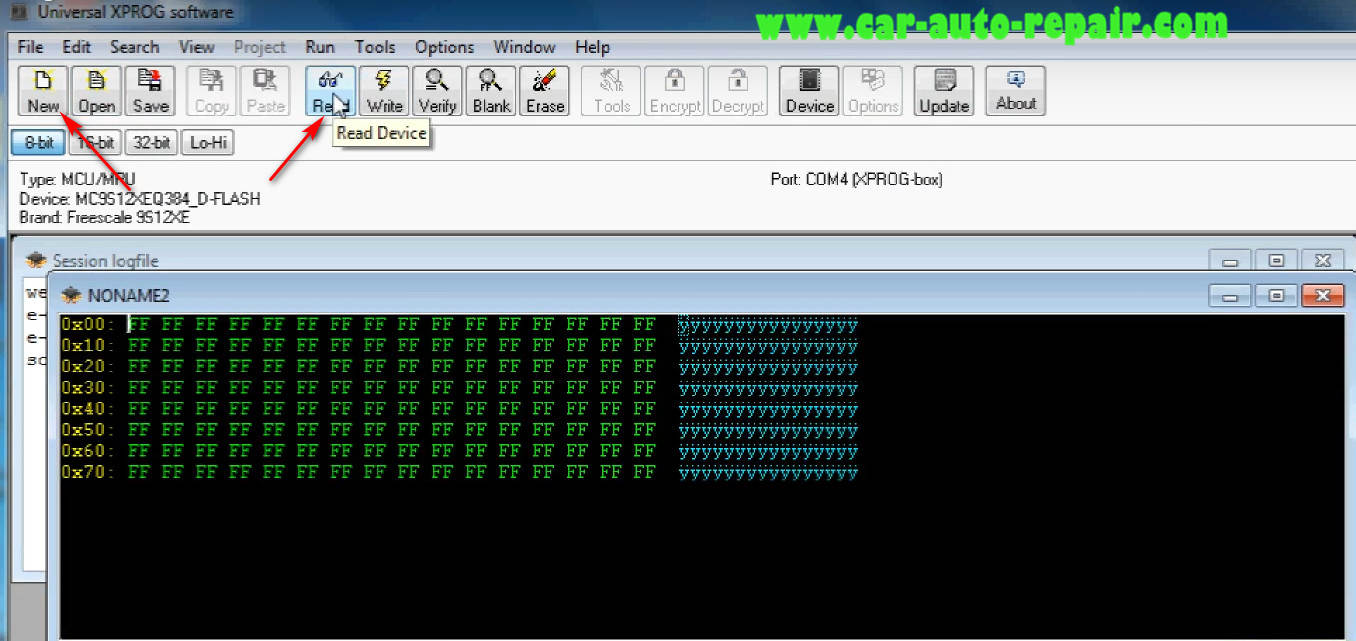

Select “New”–>”Read Device”

How to Use XPROG Programmer Reset BMW FRM3 (7)

After reading procedure completing,click “Save” button to save the data file on your PC

How to Use XPROG Programmer Reset BMW FRM3 (9)

Now close XPROG software,and run “dflash to eee” software

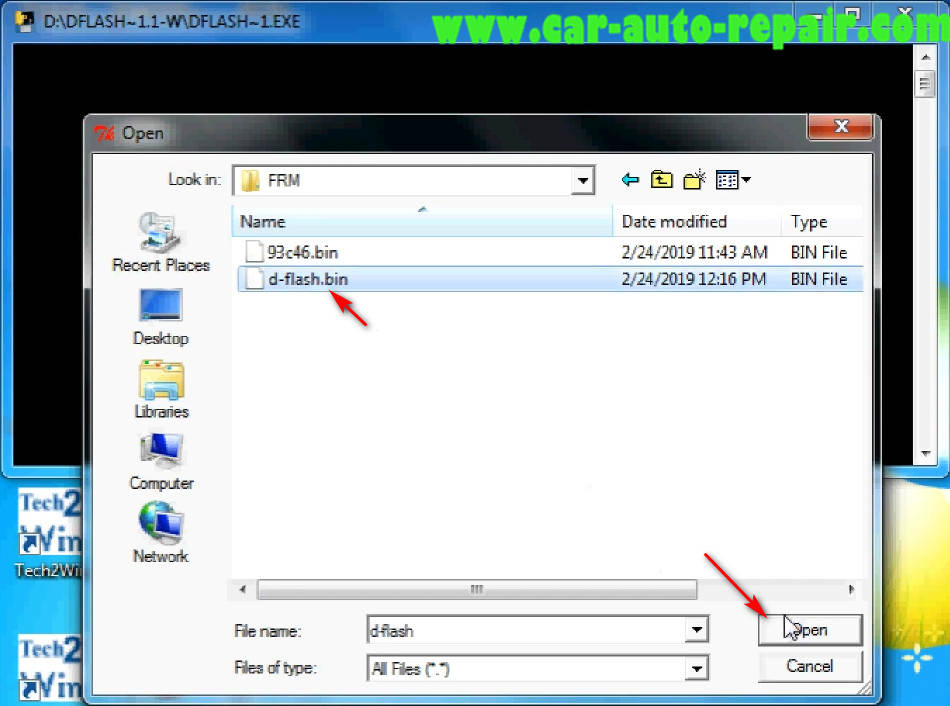

And then open the data file you save just now

How to Use XPROG Programmer Reset BMW FRM3 (9)

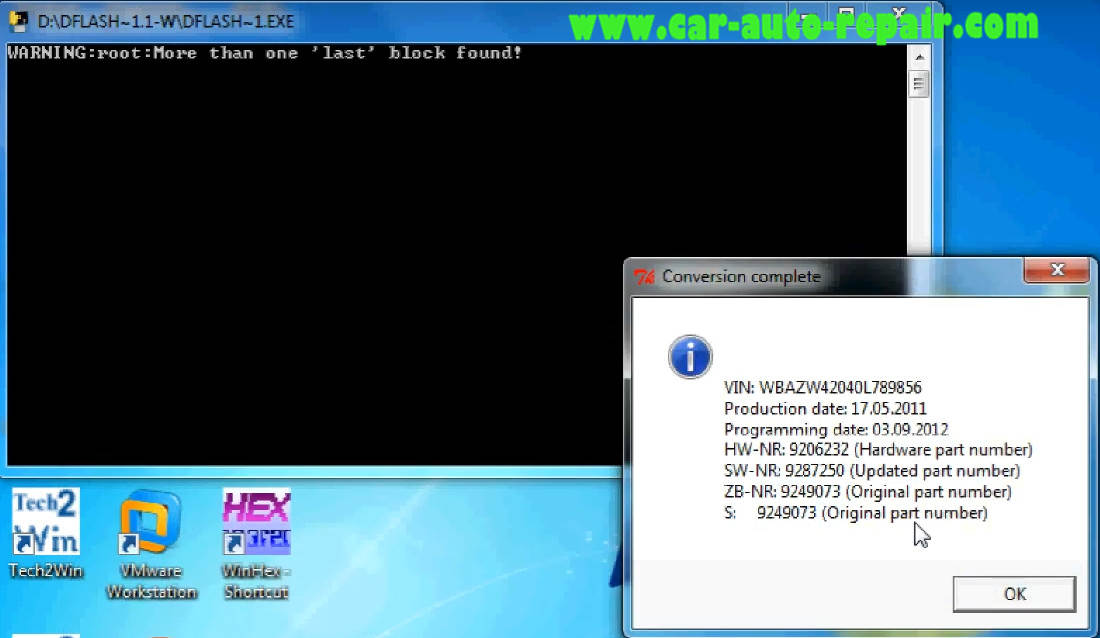

Now conversion complete,it will show below information

How to Use XPROG Programmer Reset BMW FRM3 (10)

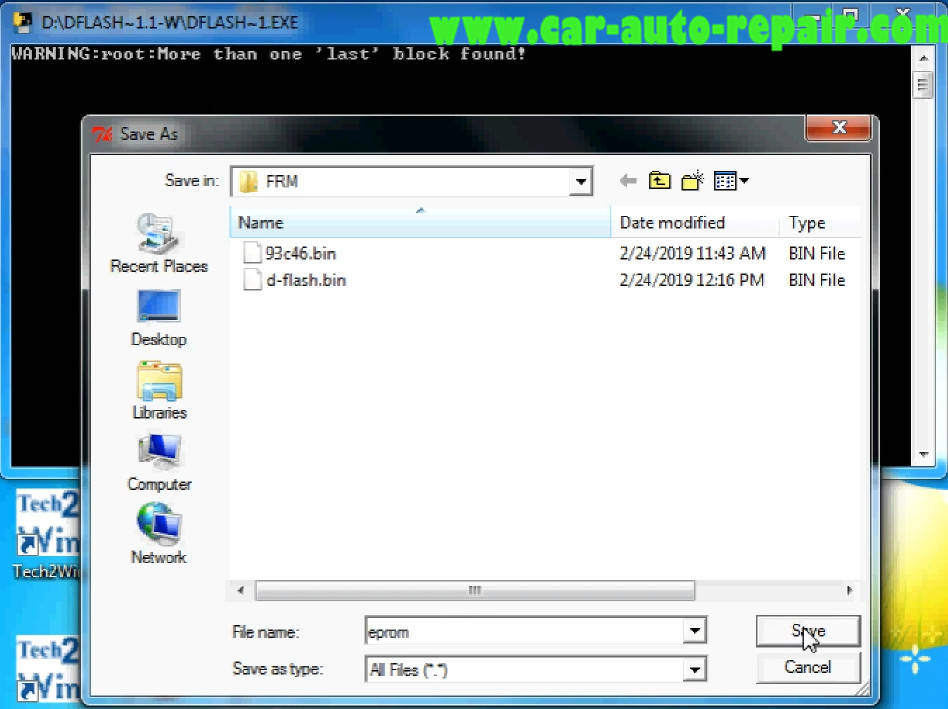

The “dflash_to_eee” file will prompt you to save the new data file,here name it as “eprom”

How to Use XPROG Programmer Reset BMW FRM3 (11)

Now run XPROG software again

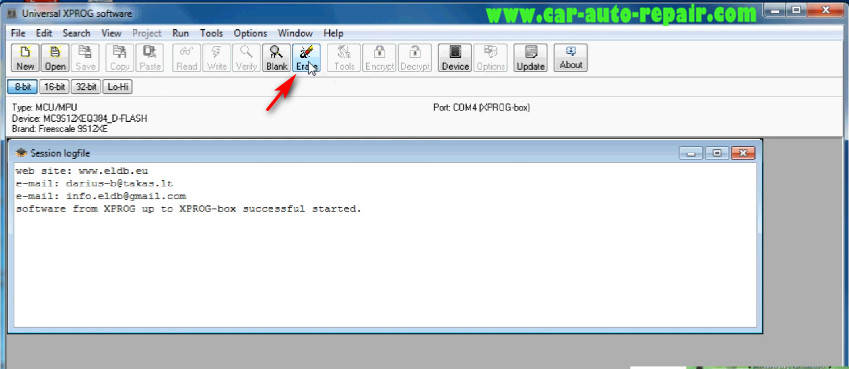

Select “Erase” button

How to Use XPROG Programmer Reset BMW FRM3 (12)

XPROG will start erasing device

How to Use XPROG Programmer Reset BMW FRM3 (13)

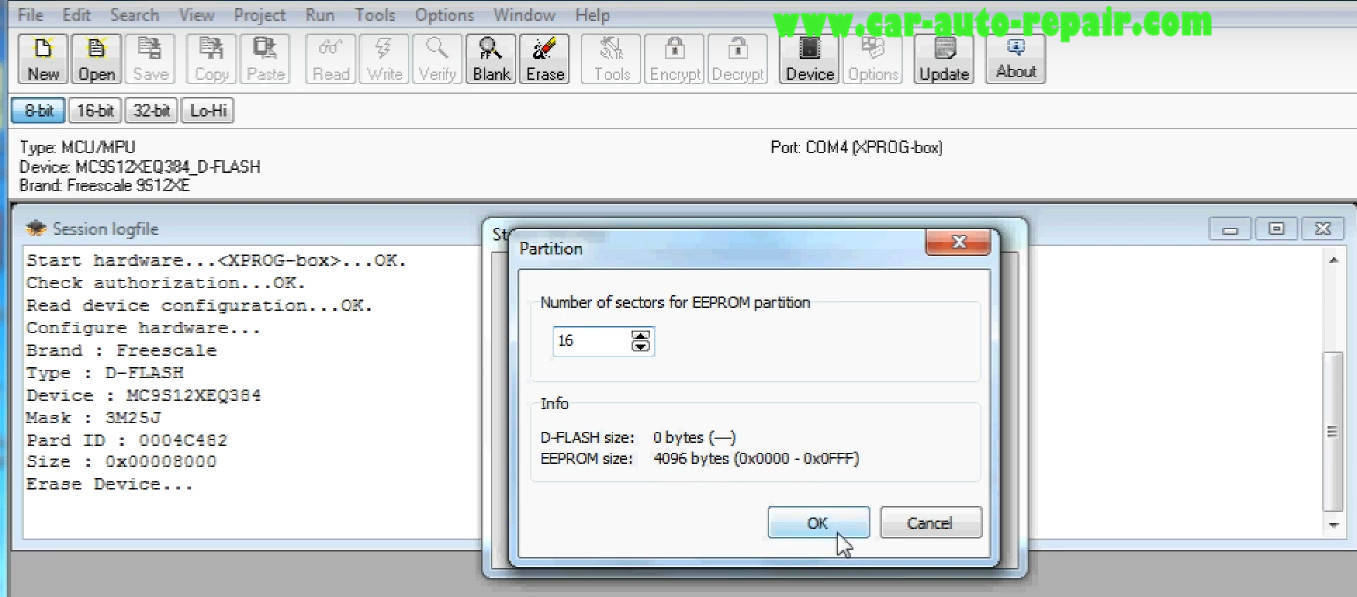

After then,it will ask you to set number of sectors for EEPROM partition

We will set value to 16,then click “OK”

How to Use XPROG Programmer Reset BMW FRM3 (14)

After proceed,select “MCU/MPU”–>”Freescale 9S12XE”–>”MC9S12XEQ384_EEE”

How to Use XPROG Programmer Reset BMW FRM3 (16)

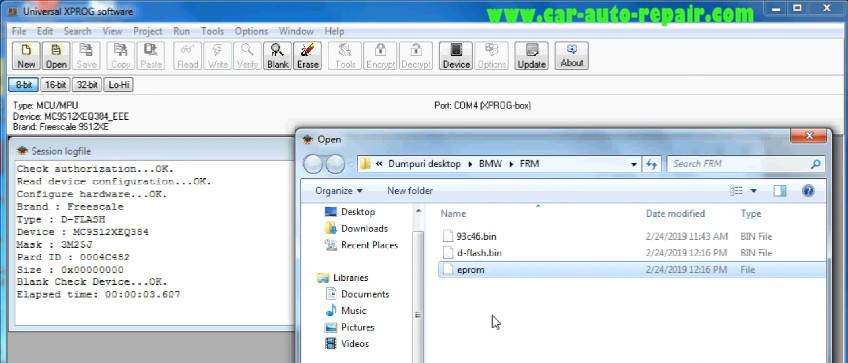

Click “Open” button to load the eprom(save just now)

How to Use XPROG Programmer Reset BMW FRM3 (16)

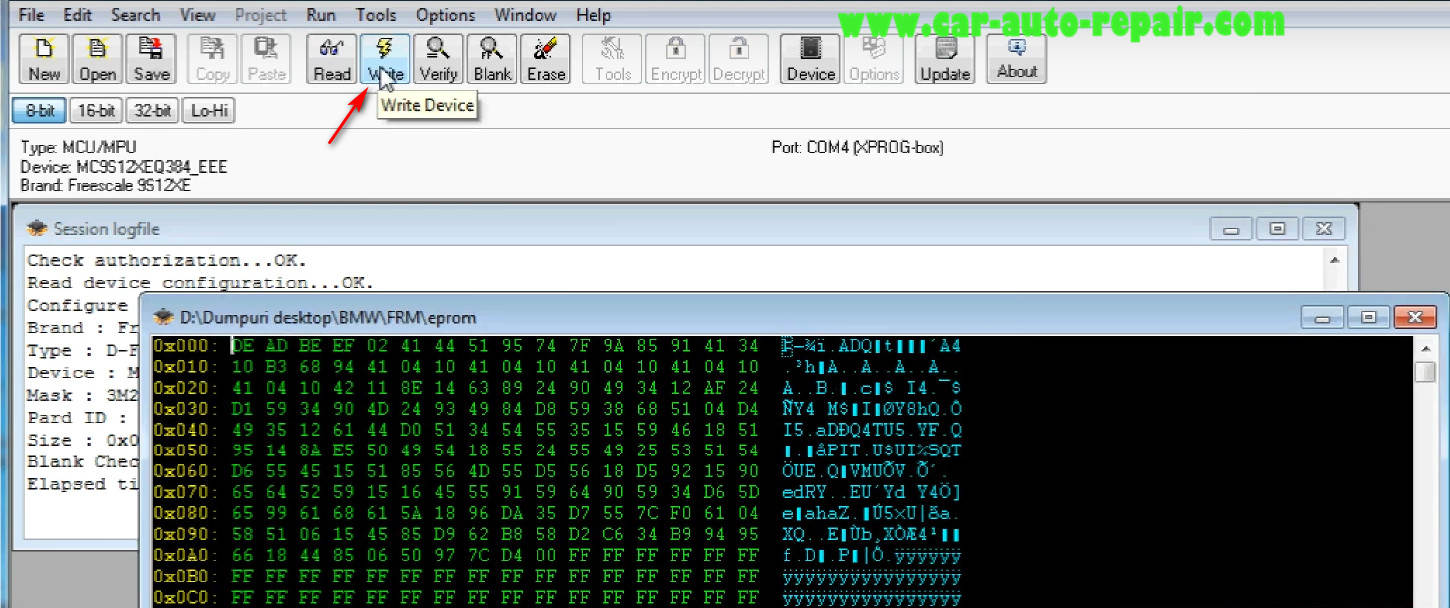

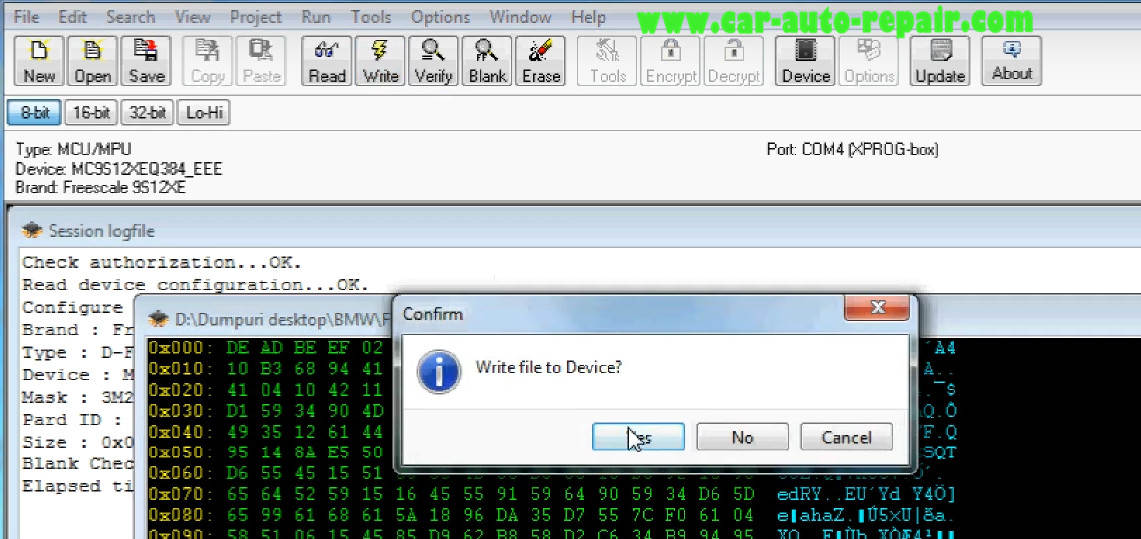

Click “Write” button

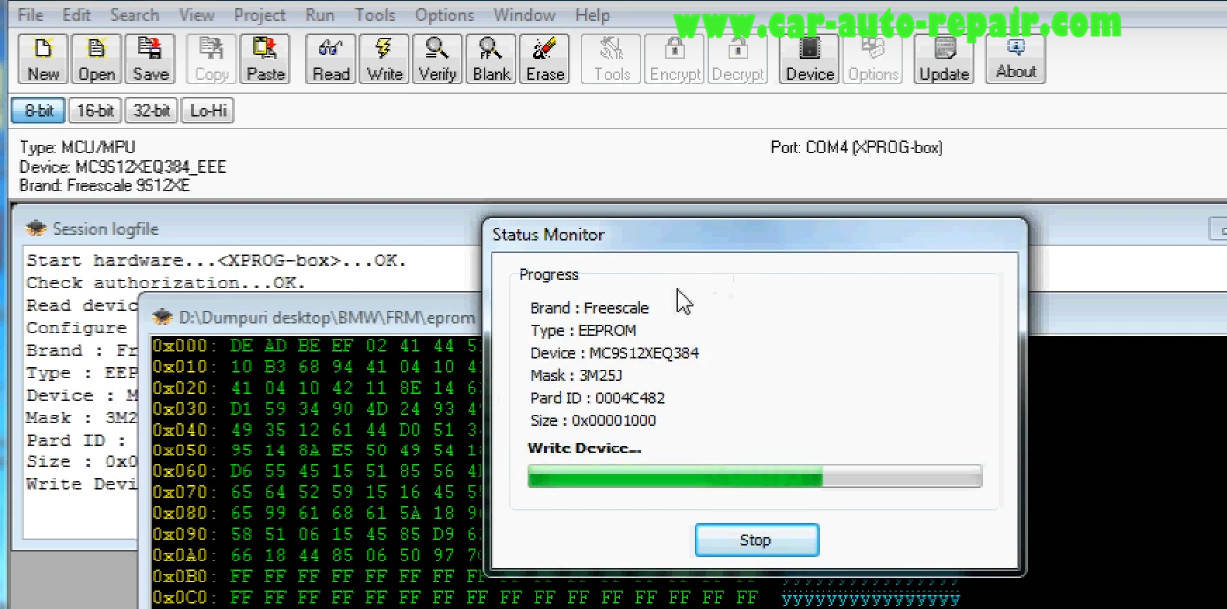

How to Use XPROG Programmer Reset BMW FRM3 (17) How to Use XPROG Programmer Reset BMW FRM3 (18) How to Use XPROG Programmer Reset BMW FRM3 (19)



After writing proceed complete
