How to Use Volvo PTT to Program Radio

Topic:This guide show how to use Volvo Premium Tech Tool PTT to program radio.



Related Content:

2024 Volvo  TechTool PTT 2.8.241 APCI 0.7.1.0/2.7.116 All Version Free Download

Volvo Diagnostic Kit (88890300)

Volvo VOCOM 88890300 Diagnostic Kit



Volvo PTT Program Radio Guide:

Launch Volvo PTT software,and login in the user ID.

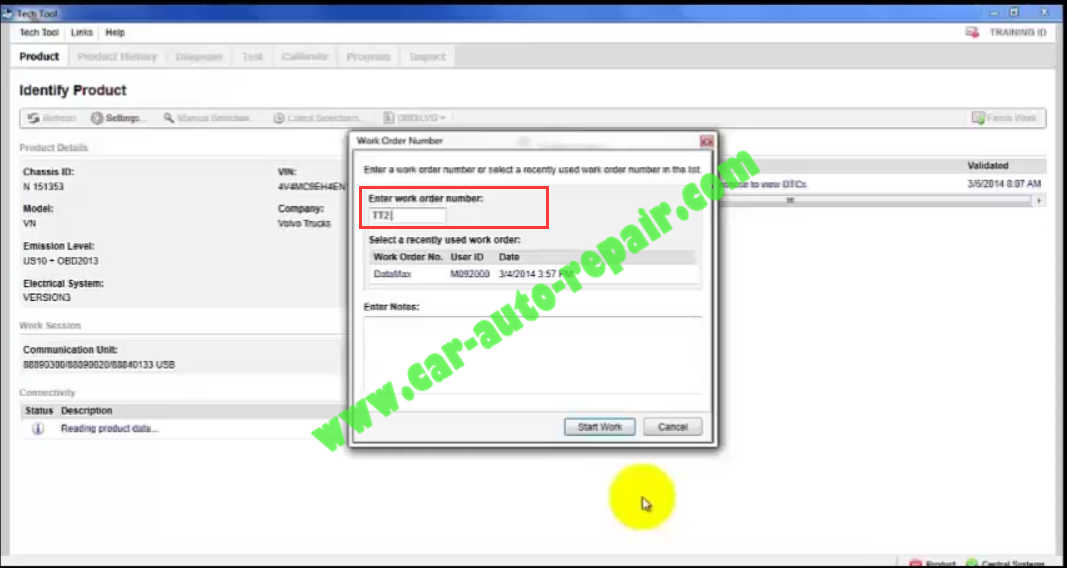

After the connecting has built between PTT and vehicle,the software will display the vehicle information as below,then enter the work order number and click “start work“ button.

How to Use Volvo PTT to Program Radio (1)

Select the “Program” tag at Menu bar on top navigation.

Then the system will perform preparations automatically,include:

Reading user information

Read product information

Checking operation support.This may take several minutes.

…Click “Continue”

How to Use Volvo PTT to Program Radio (2)

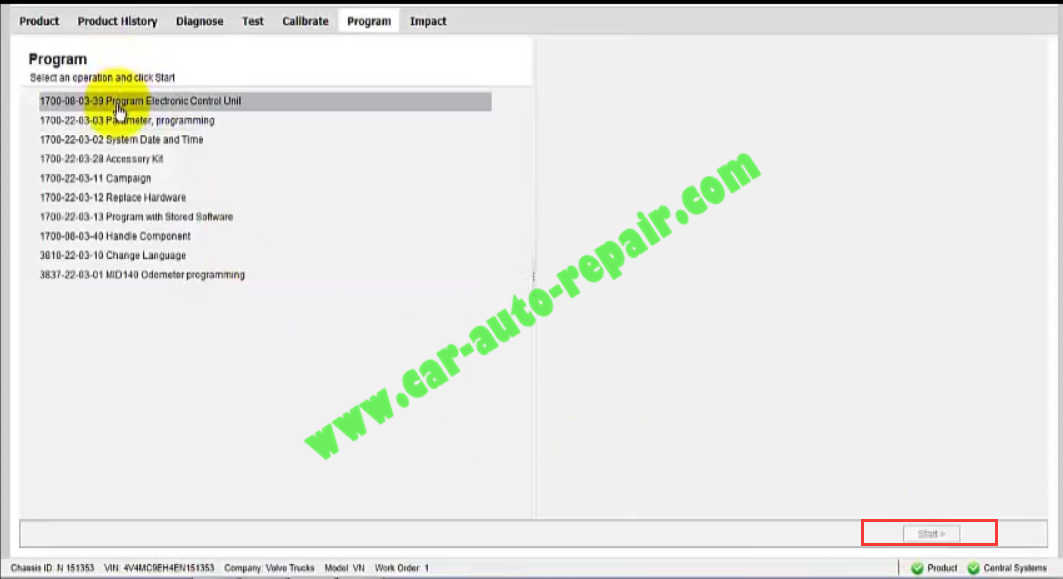

Select an operation and click start.

Here select “Program Electronic Control Unit”

How to Use Volvo PTT to Program Radio (3)

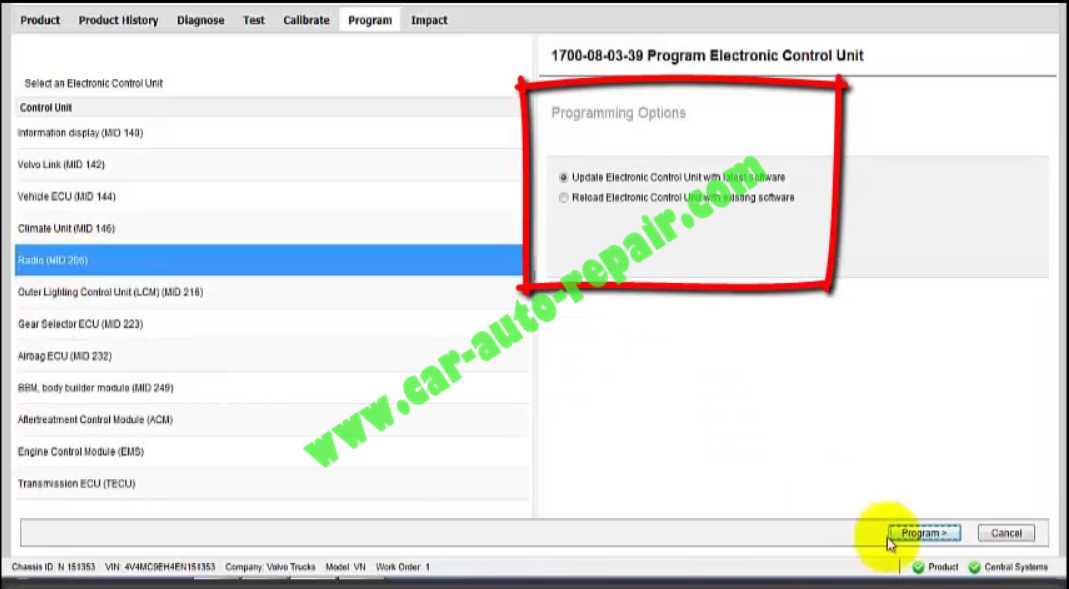

Select “Radio(MID 206)”,and at right filed you check the “Update Electronic Control Unit with latest softwae”,then click “Program”

Then the Volvo PTT will check the programming conditions:

Battery voltage above 10 V

Parking brake applied

Ignition key in “ON” position Engine not running

Click “Continue”

How to Use Volvo PTT to Program Radio (5)

Now,waiting for the programming completed,the progress included:

Reading out transferable parameters from selected Electronic Unit

Retrieving software part numbers

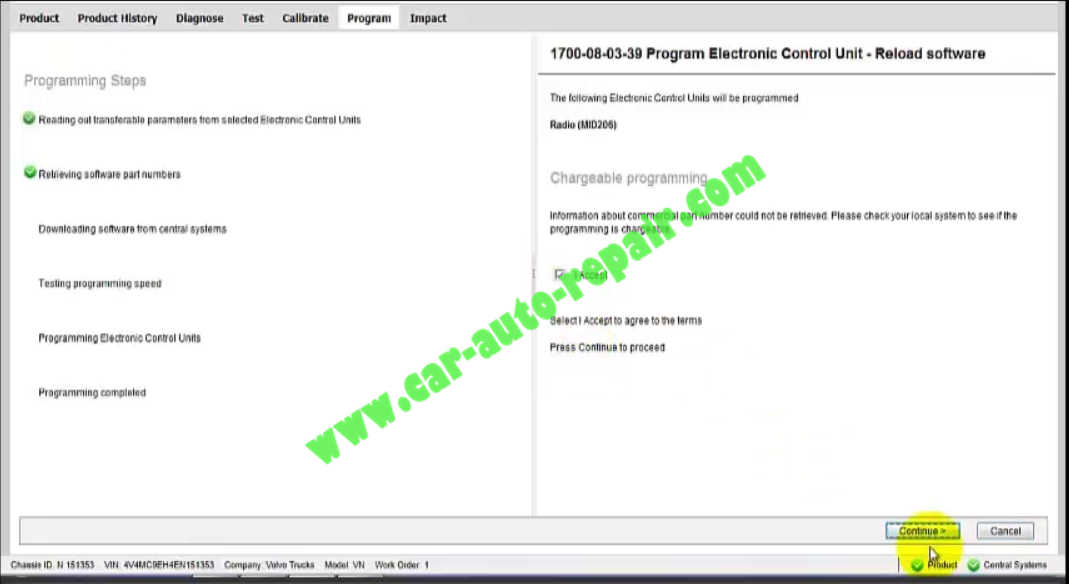

During the progress,when it comes to “Downloading software from central system”,you need to select “Agree”,then select “Continue”

How to Use Volvo PTT to Program Radio (6)

Downloading software from central system

Testing programming speed

Turn the ignition key to OFF position

Wait 10 seconds

Turn the ignition key to On position

How to Use Volvo PTT to Program Radio (7)

Programming Electronic Control Unit

Programming completed

After progress completed,click “Exit”

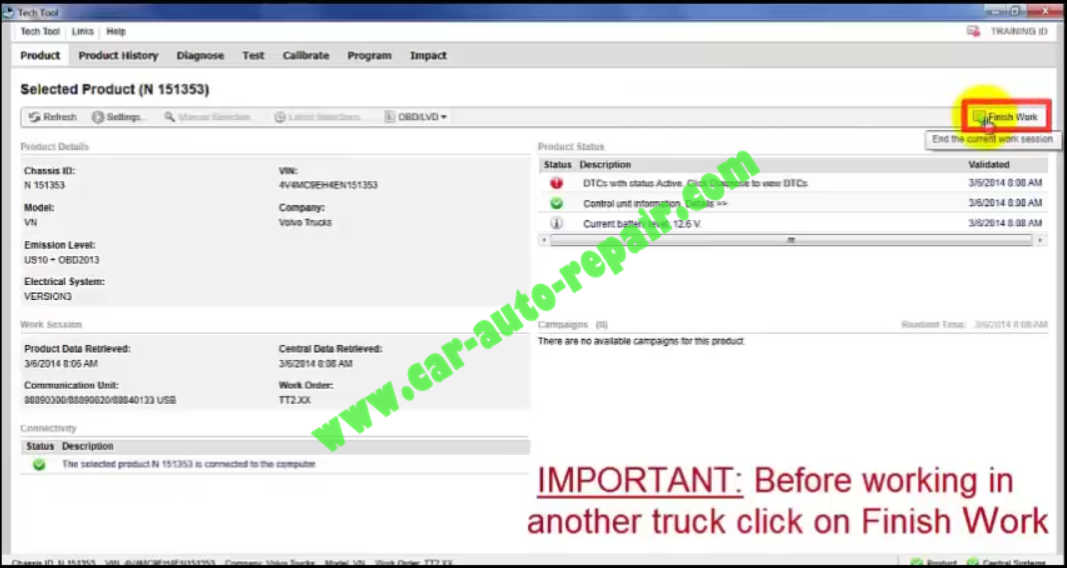

IMPORTANT:Before working in another truck click on Finish Work

How to Use Volvo PTT to Program Radio (8)
