How to Use HINO DX3 CAN250K Diagnosis Function

This instruction show you guide on how to use HINO DX3 CAN250K diagnosis function.It is use to diagnose CAN250K compatible vehicle.



Related Content:

Nexiq USB2 Diagnostic Adapter

2024.01 HINO Diagnostic Explorer DX3/DX2 Diagnostic Software Free Download

HINO Trucks EPC Electronic Parts Catalog 2018 2016 Free Download



Notice:Online only

If the vehicle’s onboard equipment information is saved on the server,the information can be read out.



Procedures:

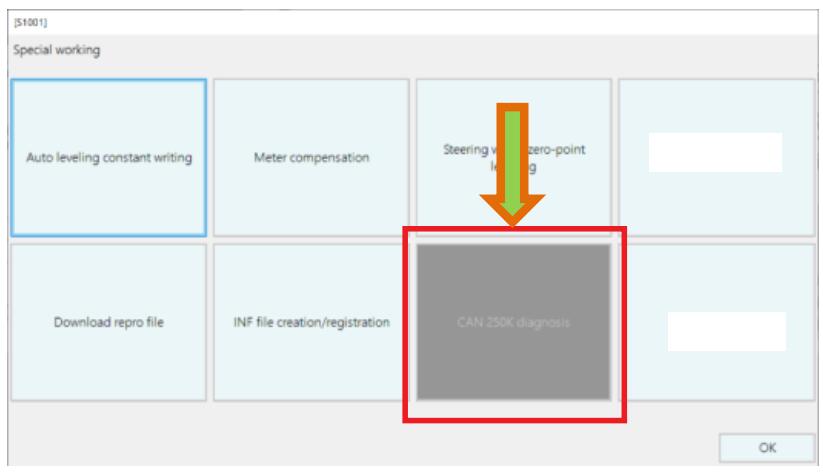

1,Select Special working from the Home screen and select CAN250K diagnosis.

How-to-Use-HINO-DX3-CAN250K-Diagnosis-Function-1

2.The VIN Input screen is displayed. Enter the VIN and click or
press the [OK] button.

How-to-Use-HINO-DX3-CAN250K-Diagnosis-Function-2

3.The Diagnosis target selection screen is displayed. Select Diagnosis target and click the [OK] button.

How-to-Use-HINO-DX3-CAN250K-Diagnosis-Function-3

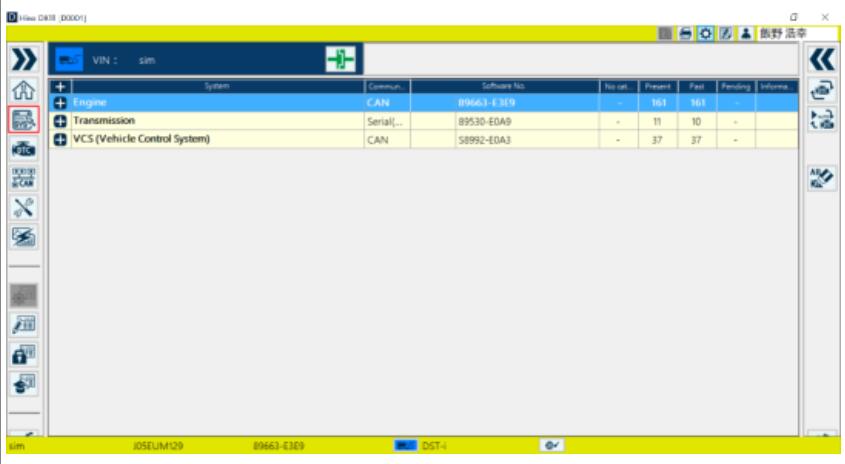

4.The screen transits to the System selection screen.

How-to-Use-HINO-DX3-CAN250K-Diagnosis-Function-4
