How to Remove Front Air Vent&Trim panel frame for Mercedes-Benz E-Class W212

This instruction will show you guide on how to remove front air vent&trim panel and repair it for Mercedes-Benz E-Class W212.



Steps:

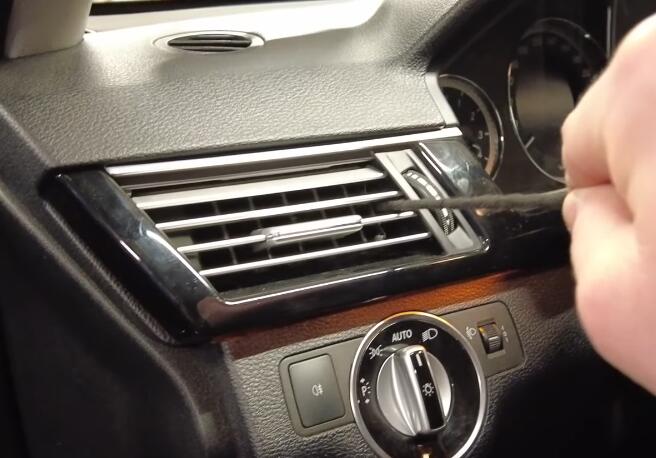

Use a home made pulling hooks pull out front air vent

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-1

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-2

Pulling hook hole on both side

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-3

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-4

Disconnect wires

Only replacing the broken part. Because the spare part smelt of smoke and was bit scratchy. Usually the whole vent house unit is replaced.

Use TORX T20 to unscrew bolts

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-5

Use a plastic tool to unlock clips

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-6

Disassemble trim panel frame

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-7

Install new one

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-8

Reinstall everything back, be careful plastic clip here.

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-9

Replacement is finished.

How-to-Remove-Front-Air-VentTrim-panel-frame-for-Mercedes-Benz-E-Class-W212-10
