Bendix EC-60/EC-80 Steering Angle Test & Calibration by JPRO

This instruction show you guide on how to do steering angle test and calibration for Bendix EC-60 advanced braking system and Bendix EC-80 ESP/ESP+ braking systems.



Related Contents:

JPRO Noregon Commercial Fleet Diagnostics 2023 2021 Free Download

Noregon JPRO DLA+ 2.0 Adapter





This test allows for verification of steering angle sensor functionality and provides recalibration ability if necessary.
1 Select the Battery Voltage Test and press Enter or the Start button.
2 The test dialog will be displayed.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (1)

3 The Steering Angle Test tab guides the user through the diagnostic steps for ensuring proper steering angle alignment.
Select the Graph tab to view a graph of the monitored steering angle.
Select Calibration to run the recalibration procedure which relearns the current steering angle position as 0 degrees.

4 To begin the Steering Angle Test, select the Next button. Step 1 of the procedure provides instructions to verify straight ahead position of the steer axle wheels compared to the steering wheel. The green area on the steering angle number line shows the acceptable target range.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (2)

5 Select the Next button to continue.
6 Step 2 requires turning the steering wheel ¼ turn clockwise to the position indicated by the graphic. Compare the steering angle to the acceptable range which is also noted by the green target area on the number line.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (3)

7 Click the Next button to continue. Noregon JPRO DLA+ 2.0 Adapter Kit

8 Step 3 requires turning the steering wheel ½ turn counterclockwise to the position indicated by the graphic.Compare the steering angle to the acceptable range which is also noted by the green target area on the number line.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (4)

9 Selecting Rerun will return to step 1 of the Steering Angle Test.
10 To perform Steering Angle Calibration, select the Calibration tab. Click Next to begin the calibration test.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (5)

11 Test instructions are displayed which must be followed to ensure successful calibration. Any faults not related to
the steering angle sensor must be resolved before attempting calibration. The steer axle wheels must also be positioned straight ahead with the steering wheel centered. Click Next.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (6)

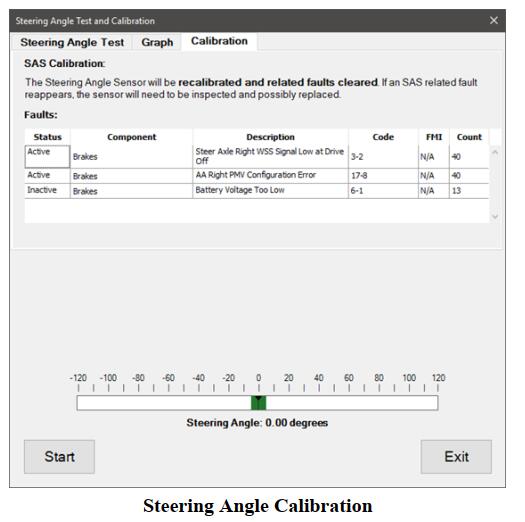

12 The SAS Calibration screen provides a fault grid that will only display braking system related faults. Click the Start button to perform the calibration.

Bendix EC-60EC-80 Steering Angle Test & Calibration by JPRO (7)

13 When the test is completed a Calibration Successful message will be displayed. Click OK to dismiss this message.
14 When done, press the Exit button to return to the test selection dialog.
