How to Use PCMflash Read & Write EEPROM/Flash Date EDC17CP14 on Bench

June 5, 2021 auto ECU Chip Tuning 0

This post show you guide on how to use PCMflash programmer to read & write EDC17CP14 and EDC17C46.

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-1



Related Contents:

PCMflash Read Bosch EDC17C45 EEPROM & Flash Data without Opening



Procedures:

Build connection between PCMflash programmer and EDC17CP14.

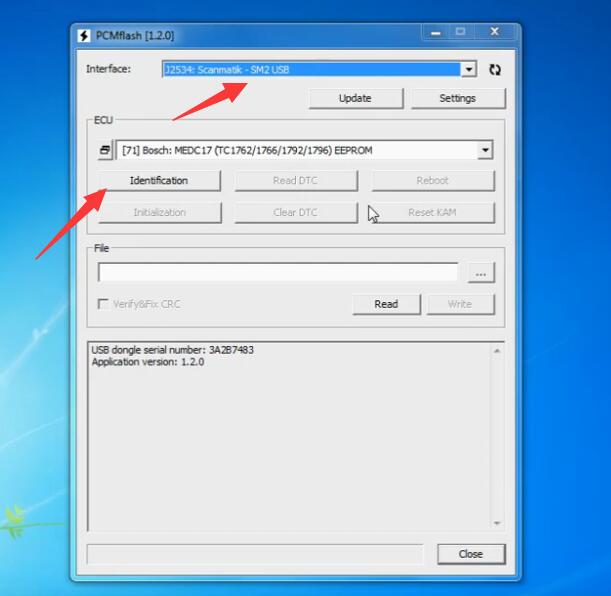

Run PCMflash software,select you interface and select “Bosch:MEDC17”

Then click “Identification”

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-2

It will ask you “Would you like to use automatic power control(L-Line)”

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-3

Click “Read”

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-4

Wait reading processing

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-5

Completed successfully

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-6

Save data on your PC

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-7



Read Flash Data:

Select “Bosch MEDC17(TC1762/1766/1792/1796) FLASH”,click “Read” button

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-8

Wait process..

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-9

Save data

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-10



For writing data

Click “Browser” button to select file

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-11 PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-12



Then click “Write” button

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-13

Completely successfully

PCMflash-Read-Write-EEPROMFlash-Date-EDC17CP14-on-Bench-14
