Volkswagen DSG TCM Flashing by ODIS-Engineering

This post show you guide on how to use ODIS-Engineering to do module flashing/update for Volkswagen DSG/TCM module.

Note:Try it at your own risk,please be aware flashing any module is risky, especially doing a DSG module this guide is not designed to spoon feed anyone and requires a certain amount of computer and diagnostic knowledge to achieve.



If your part number is different or you are not confident that you have the correct file to flash STOP!



Preparations:

Newest ODIS-E Engineering 12.1.1 & 9.0.4 Free Download



Procedures:

First step you need to check what version of your DSG software running,here you can check it by VCDS log.

Volkswagen-DSG-TCM-Flashing-by-ODIS-Engineering-1

Run your ODIS-Engineering software on your PC,once program has loaded go into Admin and uncheck “Active Filtering using EXPECTED-IDENTS” and “Activation Version Control”

Volkswagen-DSG-TCM-Flashing-by-ODIS-Engineering-2

Now go back to diagnostic and ensure VW36X is selected and proceed to Diagnostic Entrance

Volkswagen-DSG-TCM-Flashing-by-ODIS-Engineering-3

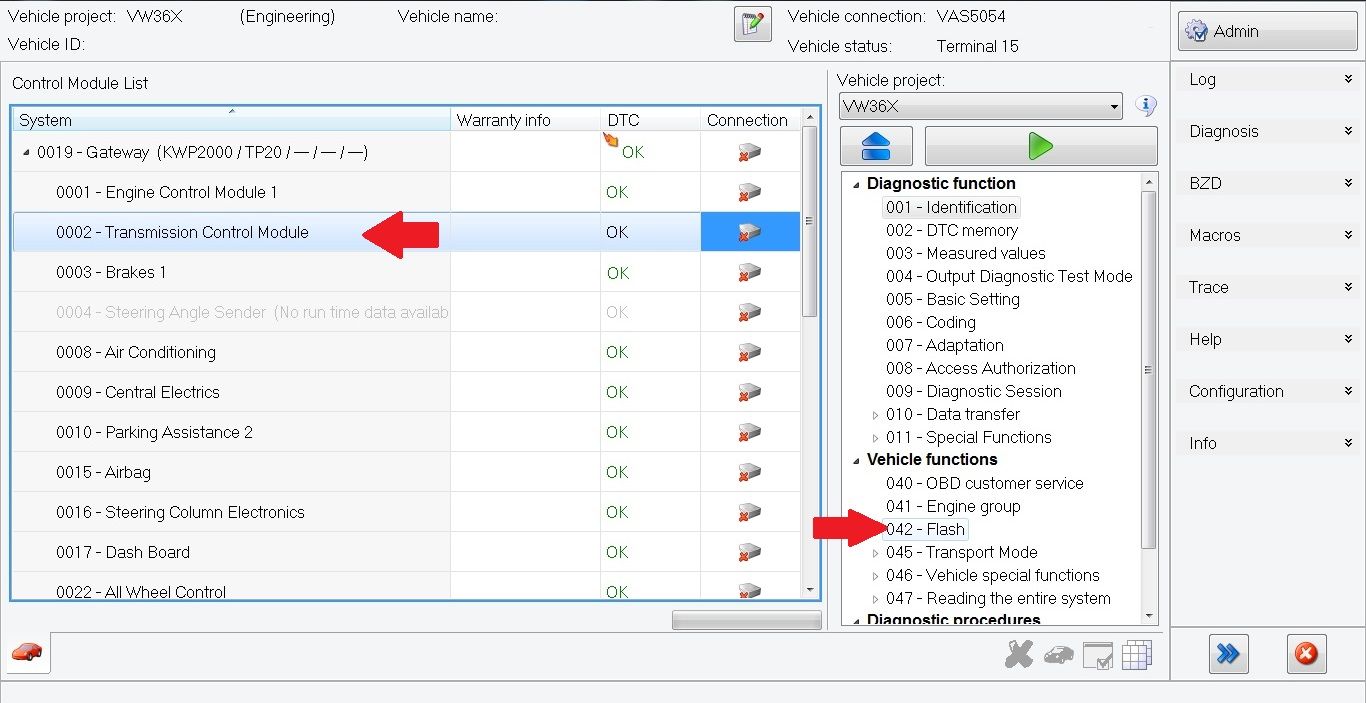

Select the DSG module then double click 042 – Flash

Volkswagen-DSG-TCM-Flashing-by-ODIS-Engineering-4

One the next screen ensure the DSG module is still selected, then hit Local File Flash and select the file from your flashdata to flash

Volkswagen-DSG-TCM-Flashing-by-ODIS-Engineering-5

On the enxt screen just make sure you have loaded the correct file and hit Start Flashing, there will be a few dialogs pop up and I don’t have screen shots of these but if you have got this far it will be easy enough for you to understand clicks ok or next

Volkswagen-DSG-TCM-Flashing-by-ODIS-Engineering-6

After about 6-8 minutes you will be greeting with a message saying would you like to clear all DTC’s I personally prefer to click no at this point and do that side of it in VCDS but if you want to clear them it is not an issue.
