Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011

This is a step-by-step guide on how to use Launch X431 device to perform diesel particulate filter static regeneration for Ford Fiesta Diesel 2011.And I will introduce the operation with text and pics firstly.If you want the video guide,please check the video at end of article.



More articles about topic on DPF and Launch X431:

Diesel Particulate Filter Clean/Removal/Regeneration

Launch X431 Test cases



Procedures:

Connect your Launch X431 device(V/PRO/PRO 3) to vehicle.

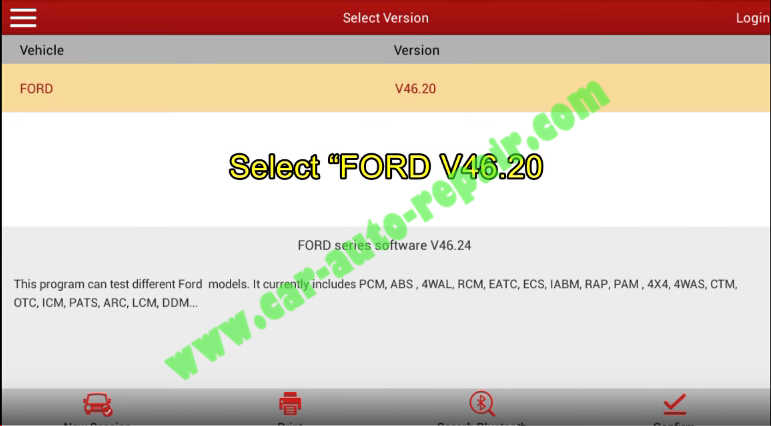

Enter the menu to select “FORD”,then tap “Confirm”

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (1)

Select “Automatically Search”

“The the program will show the vehicle information as below

     VIN=WF01-14C204-HA***

     Vehicle=Fiesta

     Capacity=1.6L

     Engine Type=Duratorq-Turbo Diesel Common Rail Injection StgV

     Vehicle code=AV21-14C204HA”

Please check the vehicle specification,select “OK”

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (2)

Select”Fuel Type=Diesel”

Select “System Selection”

Select “PCM (Powertrain Control Module)”

Then Launch X431 show the system information as below:

    Module:PCM

    Type:Standard Equipment Module

    Module Information:0008B55D

    Vehicle Incode:000039A7

Select “OK”

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (3)

Select “Special Function”

Select “PCM Service Function”

It show a massage:

Caution:This function will change the status of vehicle

Select “OK”

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (4)

Select “Diesel Particulate Filter Static Regeneration”

Prompt:Carry out this procedure to regenerate the diesel particulate filter.

Tap “OK” to continue

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (5)

Then Launch X431 will show you the operation:

Turn ignition to the “ON” position,then tap “OK” to continue

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (6)

System will be reading fault codes

Turn the ignition to the “Off” position

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (7)

The pop-up a massage as below:

During this procedure,the engine speed will be increased for an extended period of time

This procedure is carried out while the vehicle is stationary

This procedure can take up to 25 minutes to complete.

The exhaust gas at the tailpipe can reach temperatures of approximately 500 degree static regeneration in the workshop.

Make sure the exhaust extraction system is capable of operating at high temperatures and gass flow rate for an extended period of time.

Use a portable fan for additional engine coding.If possible,static regeneration outside of the workshop.

Make sure there is at least 1 metre[3.3 ft] Clearance behind the tailpipe.

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (8)

Tap “OK” button to continue

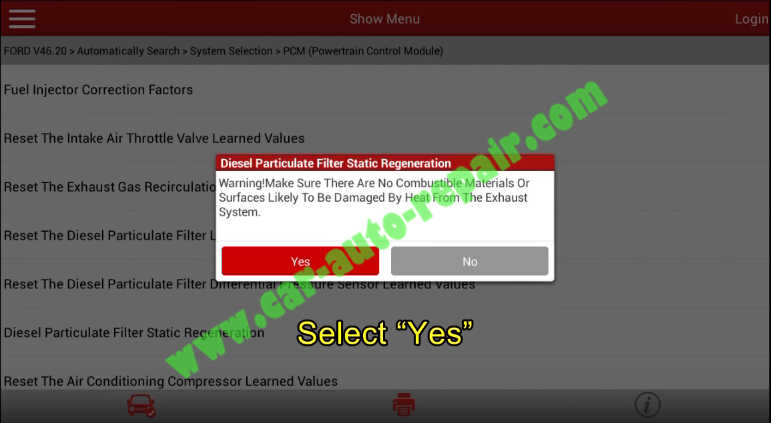

Warning massage:

Make sure there are no combustible materials or surfaces likely to be damaged by heat from the exhaust system.

Then select “Yes” to continue

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (9)

Turn ignition to the “ON” position,then tap “OK” to continue

Start the engine,the system will be inspecting the temperature of Engine coolant.

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (10)

The temperature of engine coolant must beyond 65 degree.

1Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (11)

Do not press the accelerator,brake or clutch pedal during this procedure.

Press the OK to start the static regeneration procedures.

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (12)

Then test will take about 2500s,select “Yes” to continue

Launch X431 prompt you to turn the ignition to the “Off” position

Then the diesel particulate filter static regeneration successfully.

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 (13)

Launch X431 Perform DPF Static Regeneration for Ford Fiesta 2011 Video Guide
