How to Use HINO DX3 Simulation Function

HINO DX3 Simulation functions is new feature for HINO DX3,which make your work easy and improve your skills.Here car-auto-repair.com show you guide on how to use it.



Related Content:

JPRO DLA+ 2.0 Adapter /Nexiq USB2 Diagnostic Adapter

2024.01 HINO Diagnostic Explorer DX3/DX2 Diagnostic Software Free Download

HINO Trucks EPC Electronic Parts Catalog 2018 2016 Free Download



Procedures:

1.Select ON in Simulation mode, enter the user ID and password; then press the [Login] button.

How-to-Use-HINO-DX3-Simulation-Function-1

2.The DX III home screen appears.

[Reference]
• During Simulation mode, “sim” is displayed at the bottom left of the home screen.
• Functions that are grayed out cannot be used during Simulation mode.

How-to-Use-HINO-DX3-Simulation-Function-2

3.Click or press the [Connect] button

How-to-Use-HINO-DX3-Simulation-Function-3

4.Since the Vehicle Selection Method screen is displayed,select the method for obtaining vehicle information. Press the [Vehicle Classification] button.
[Reference]
• If you enter a VIN for which the on-board device information is automatically uploaded to GSPS, you can perform the simulation with the on-board device information applied.

How-to-Use-HINO-DX3-Simulation-Function-4

5.Select the vehicle classification and Area; select the software number of each device; then press the [OK] button.

How-to-Use-HINO-DX3-Simulation-Function-5

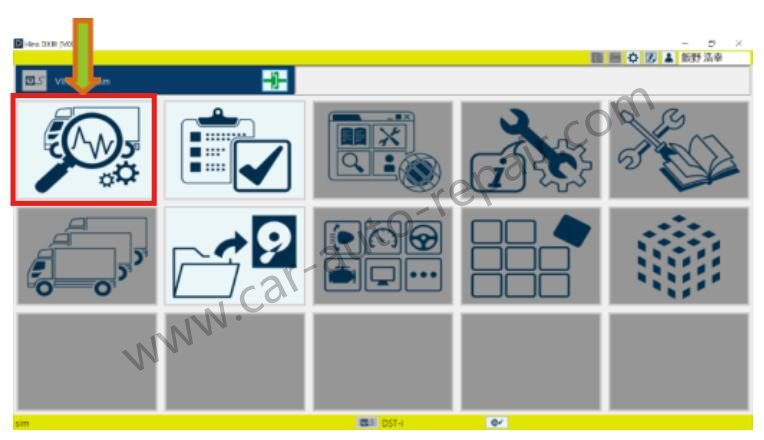

Click or press the [Diagnosis/Customization] button.

How-to-Use-HINO-DX3-Simulation-Function-6

7.Reading DTCs starts.
[Reference]
• While the DTCs are being read, a message stating, “the vehicle information is being read out,” is displayed.

How-to-Use-HINO-DX3-Simulation-Function-7

8.The System Selection screen is displayed. Each function can be simulated.
[Reference]
• Subsequent operations are the same as in normal mode.
• Operation during the Simulation mode is not recorded in the history.

How-to-Use-HINO-DX3-Simulation-Function-8
