How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU

This guide show you the procedures on how to use FLEX ECU tool to clone BMW Bosch MDG1 ECU.More ecu projects,please check here:ECU Chip Tuning/programming



Procedures:

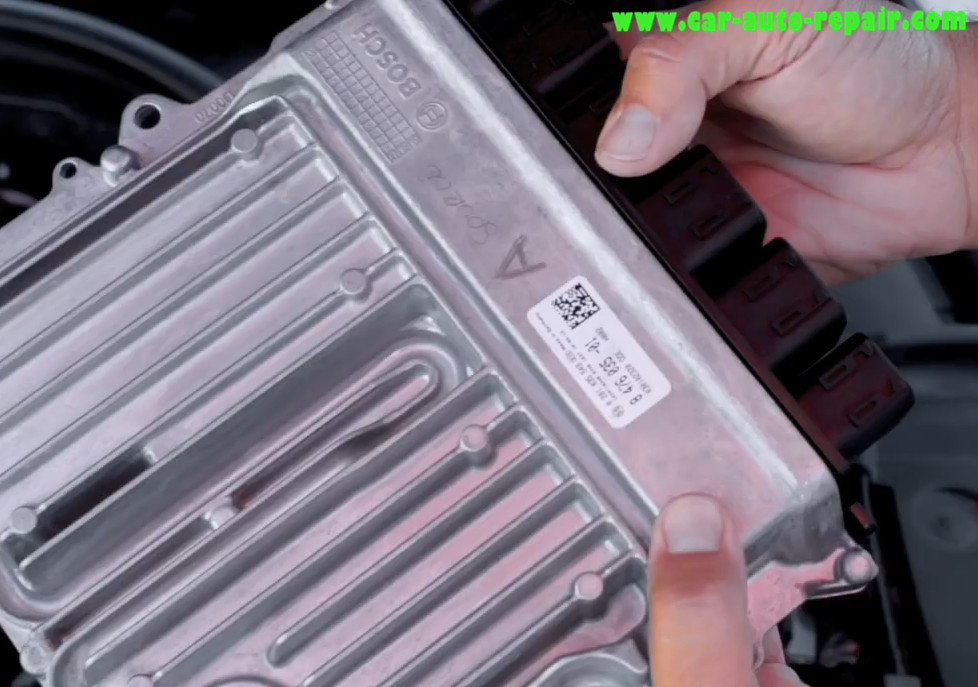

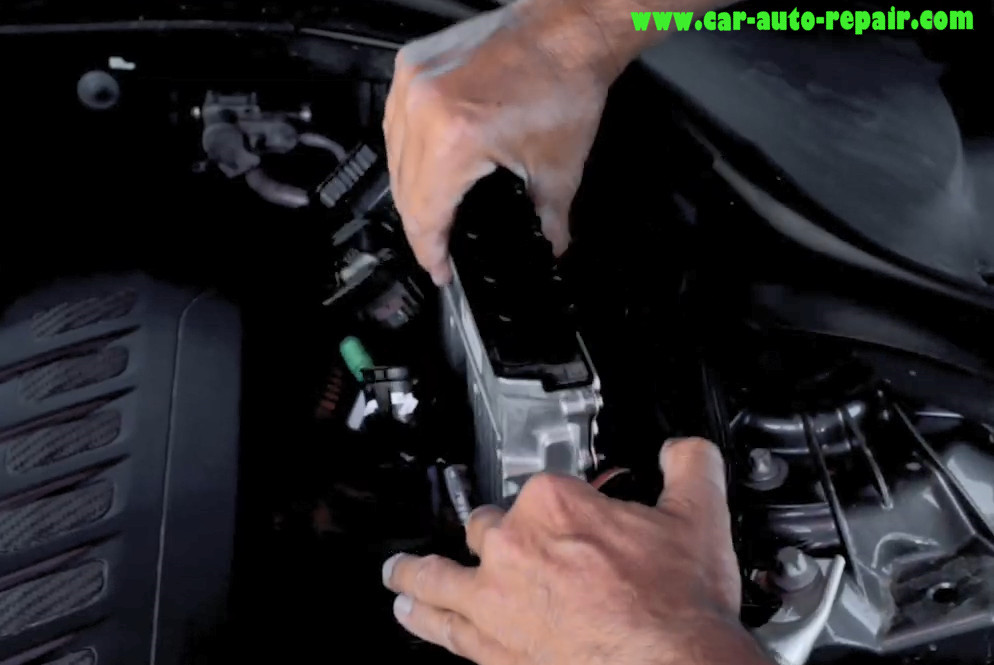

Remove BMW MDG1 ECU from vehicle

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (1) How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (2)

Open FLEX software

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (7)

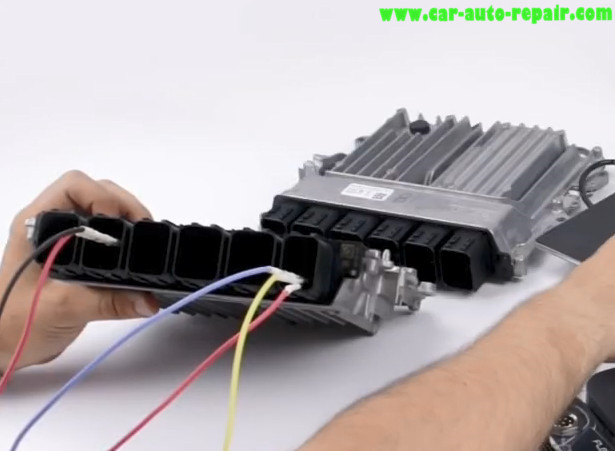

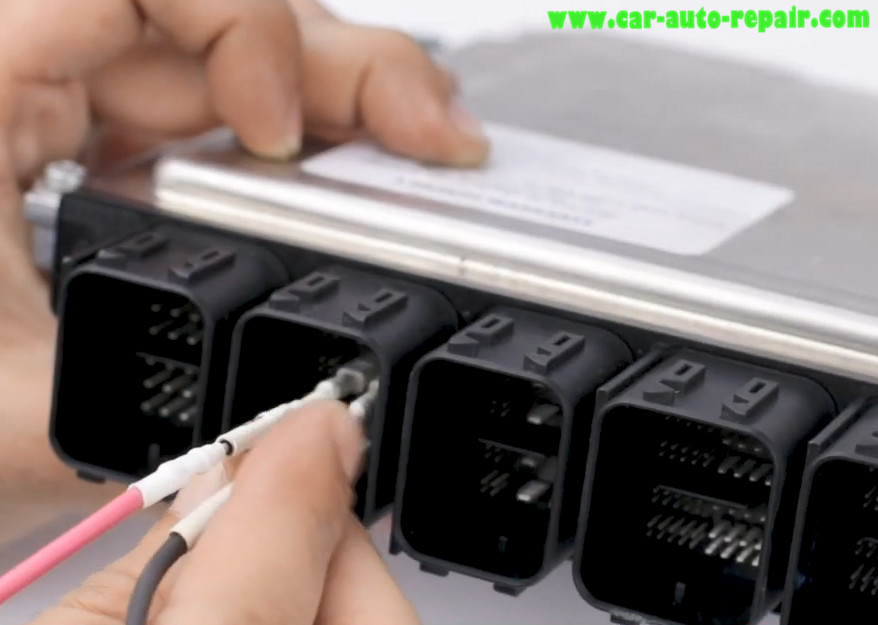

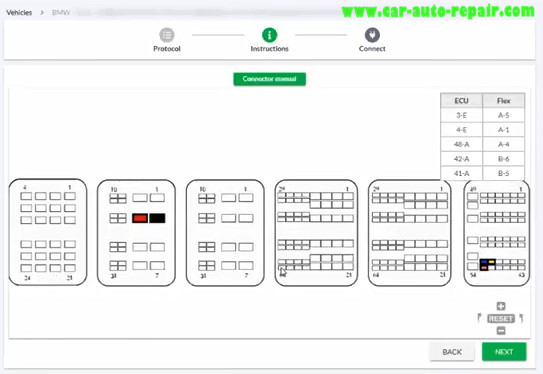

According to the diagram to build connection between FLEX ECU programmer and old BMW Bosch MDG1 ECU

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (4) How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (5) How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (6)

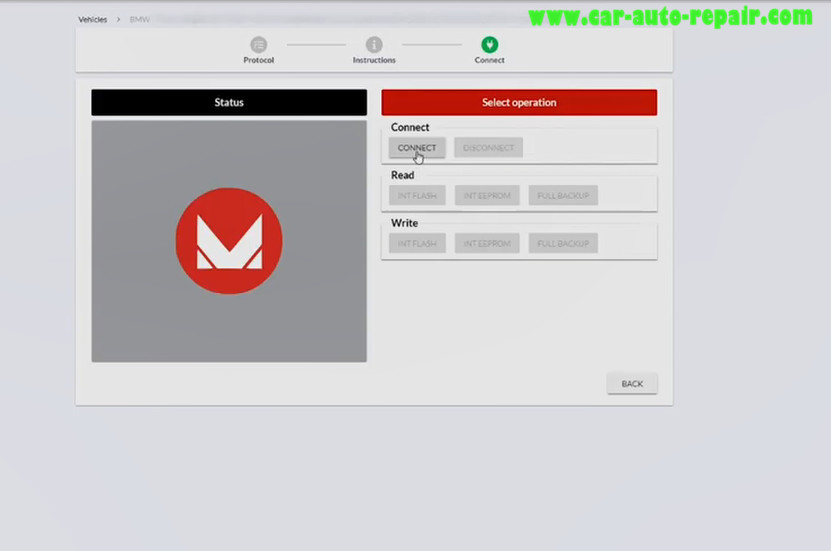

Click “Connect” button

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (7)

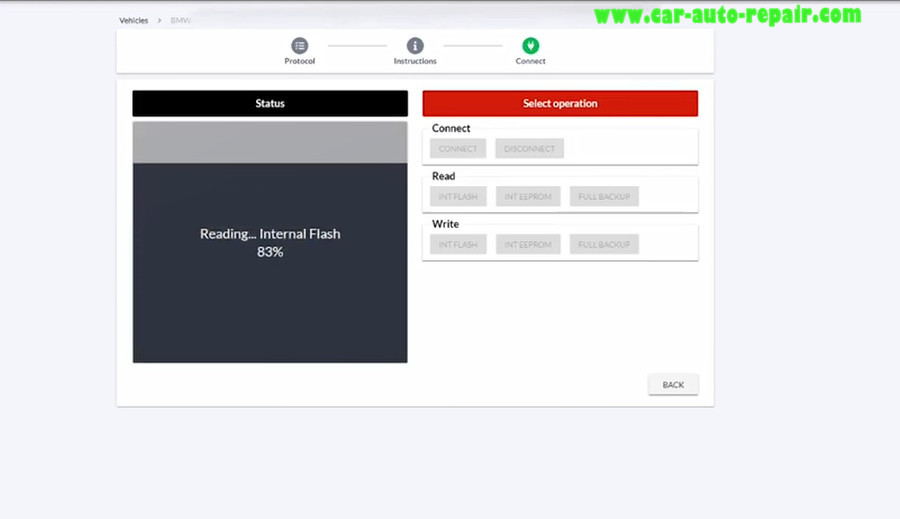

Then FLEX ECU programmer reading the BMW Bosch MDG1 ECU data

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (8)

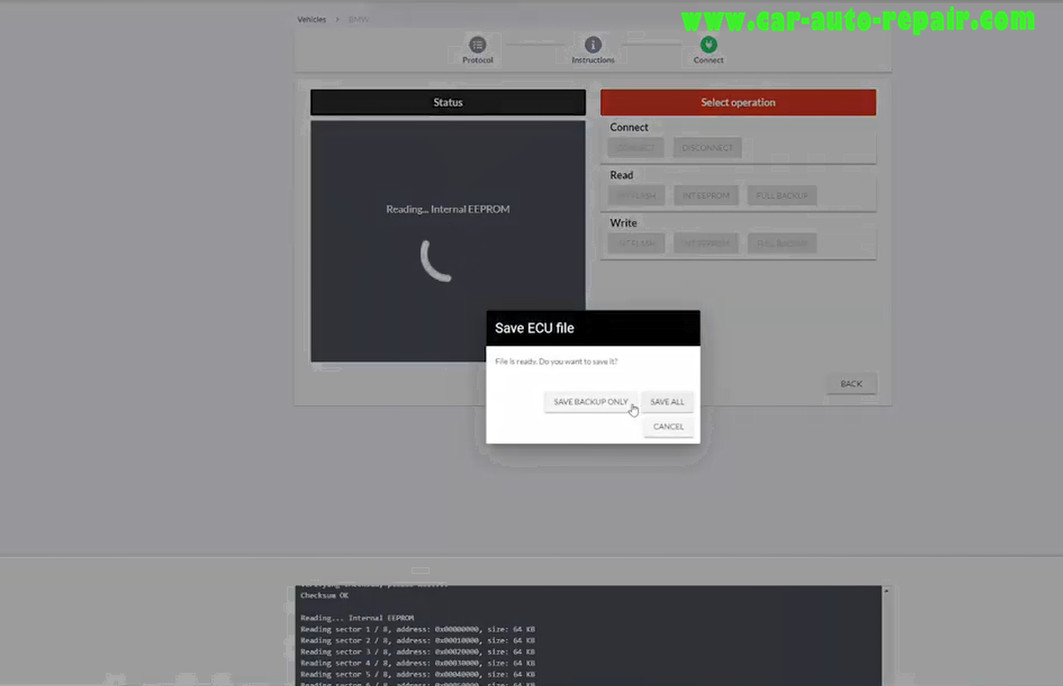

Save the BMW Bosch MDG1 ECU data on your PC

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (9)

Now disconnect old BMW Bosch ECU,and according the diagram to build connection between new BMW ECU and FLEX ECU programmer

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (10)

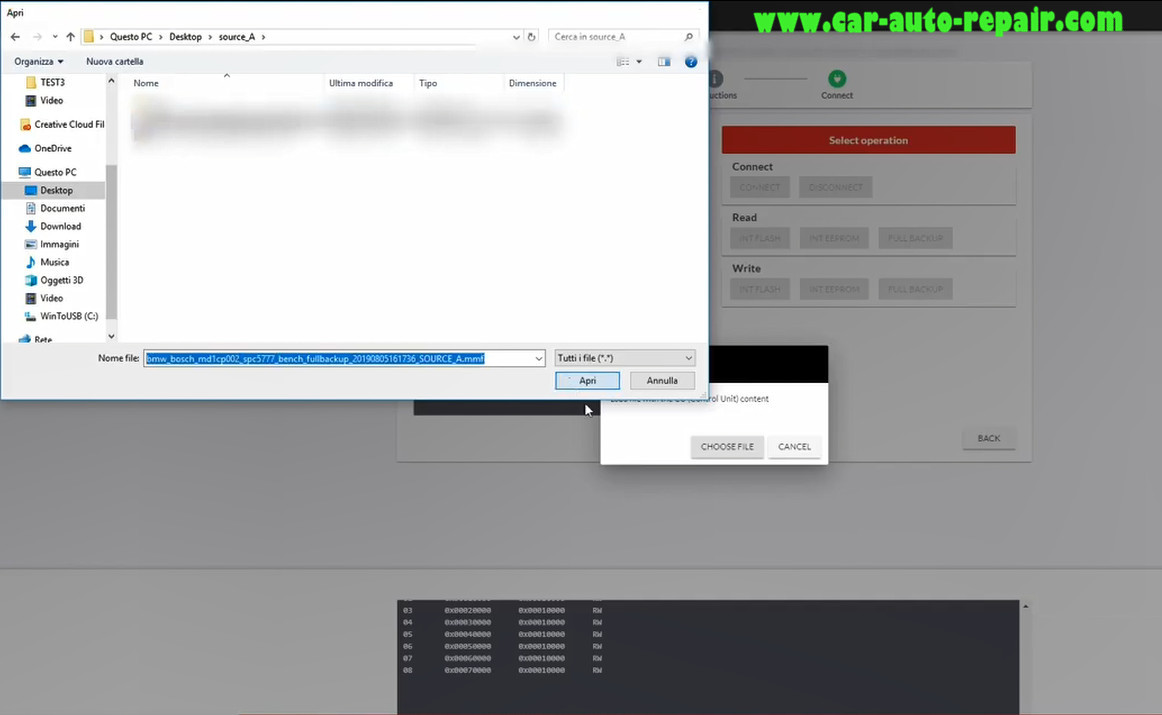

And then,upload the the ECU data files you save just now from old one.

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (11)

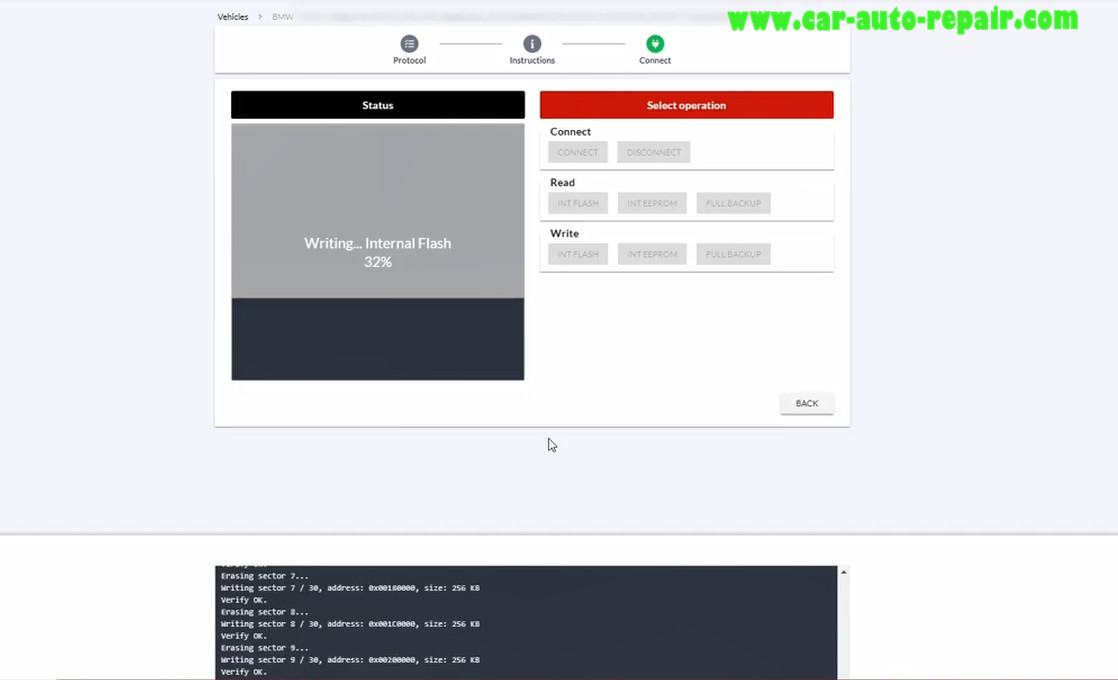

Writing…Internal Flash,please wait

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (12)

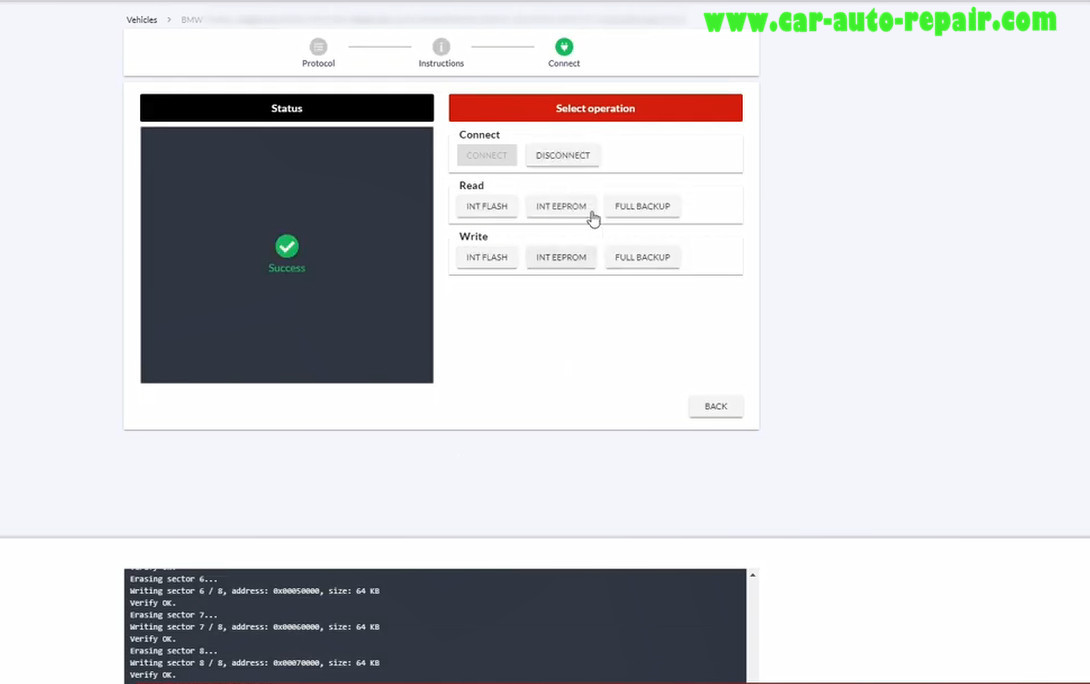

Success

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (13)

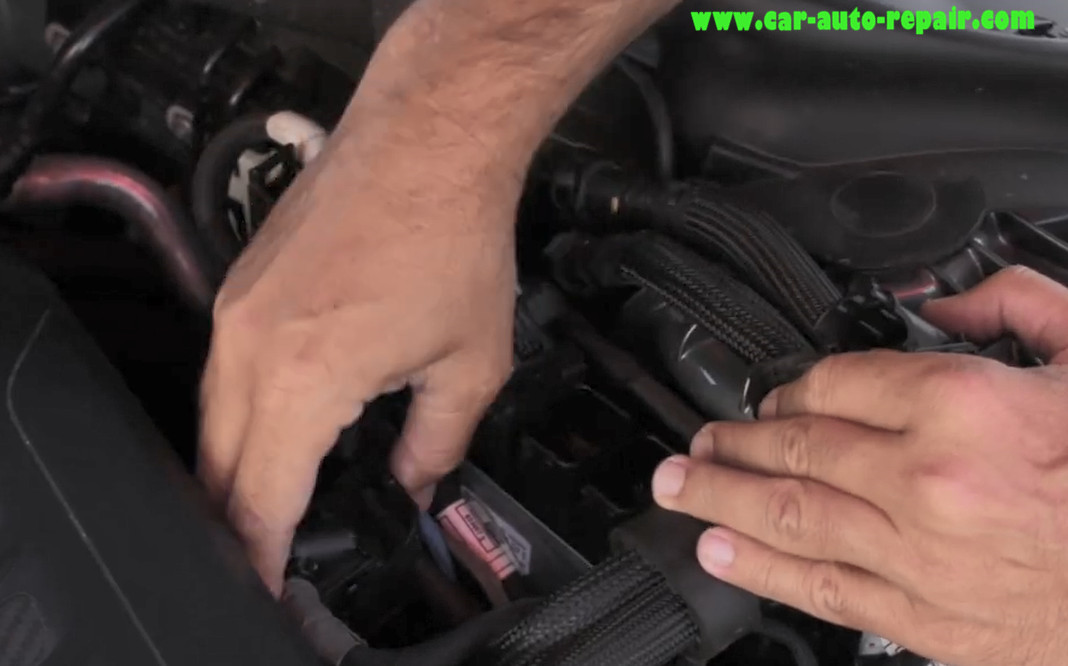

Disconnect and install the new BMW Bosch ECU on your vehicle

How to Use FLEX Programmer to Clone BMW Bosch MDG1 ECU (14)

Done!
