How to Use Carprog Programming Keys for Toyota

Carprog support car immobilizer system.And this article show a guide on how to use carprog program keys for Toyota vehicle.



Carprog Support Immobilizer Immobilizer Models:

Toyota Model Year Transponder Type
4 Runner 1993-2003,

2003-

TEX

TEX/CR

Aristo 1998- TEX
Auris TEX
Avalon 1998-2003

2003-

TEX

TEX/CR

Avensis 1998-1999

2000-2003

2003-

TEX

TEX/CR

TEX/CR

Aygo 2005 TEX/CR
Camry 1997-2003

2003-

TEX

TEX/CR

Carina 1996- PHI

PHI

TEX

Celica 1996-1999

2000-

PHI

TEX

Celsior 1998- TEX
Colorada 1997 TEX
Corolla 1996-1999

1999-2002

1999-2002

1999-2002

2002-

2002-

TEX

TEX

TEX

TEX

TEX/CR

TEX/CR

Echo 1999- TEX
Estima(J) 1997- PHI
Gaia(J) 1999- TEX
Hiace 1997- TEX
Highlander 2001-2003

2004-

TEX

TEX/CR

Hilux(J) 1999- TEX
Ipsum(J) 1999- TEX
Landcruiser,100 1996-2000 TEX/CR
Landcruiser,100 2000-2003

2003-

TEX

TEX/CR

Matrix 2004- TEX/CR
MR2 1997- TEX
Paseo 1997- PHI
Picnic 1996- TEX
Plaz(J) 1999- TEX
Prado 1996- TEX
Previa 1997-

2003-

PHI

TEX/CR

Prius 2001-2003

2003-

TEX

TEX/CR

Progress NC300 1998- TEX
RAV4 1996-2004

2005-

TEX

TEX/CR

Sienna 1999-2003

2004-

TEX

TEX/CR

Scion 2004- TEX/CR
Solara 1999-2003

2004-

TEX

TEX/CR

Starlet 1997- PHI
Tacoma TEX
Tagago 2003- TEX/CR
Tundra TEX
Yaris 1999-2002

1999-2002

2003-

TEX

TEX

TEX/CR

Sequoia 2001-2003

2003-

TEX

TEX/CR



Carprog Related Contents:

Carprog Software Free Download

Carprog Software Installation Guide

Caprog Clone





Older Toyota immobiliser system with separated immo box and Texas transponder (4D by Silca). Immobiliser box are located near to ignition key. Usually this is black or brown box marked “immobilizer” or “134.2 kHz”.

How to Use Carprog Programming Keys for Toyota How to Use Carprog Programming Keys for Toyota (2)a



Remove immobiliser ECU from the car and open it. Find 93CL66 EEPROM in DIP package. Use A5 or A4 adapter and follow CarProg instruction to program transponder key. Short quartz resonator for in-circuit EEPROM programming or remove 93C66 from immobiliser board.



Toyota immobiliser system with transponder antenna and AMP unit on the ignition key and motor ECU. Used in 1999 – 2003 Toyota/Lexus cars.

How to Use Carprog Programming Keys for Toyota (3) How to Use Carprog Programming Keys for Toyota (4)



Transponder information is stored in motor ECU. Remove motor ECU from the car, open it and find 93C56 EEPROM marked IC900.

Use A6 or A4 adapter and follow CarProg instruction to program transponder key. Remove 93C56 from ECU board, in-circuit programming is not stable.

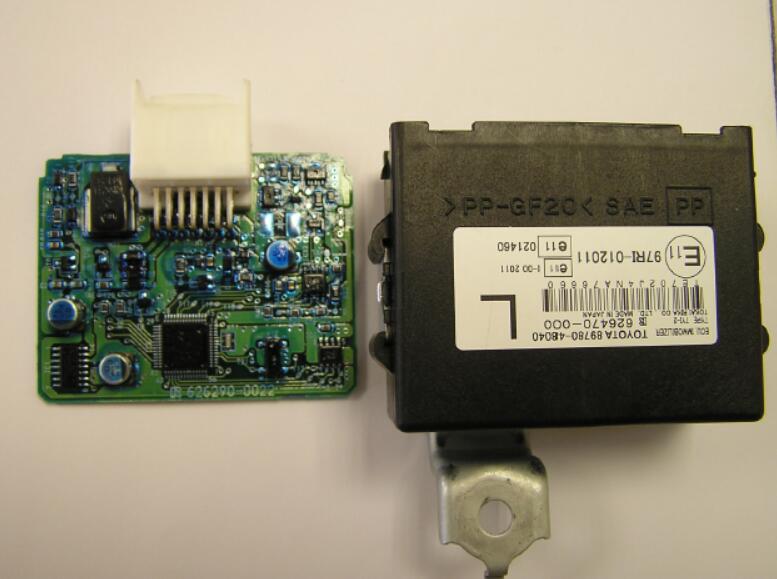

Toyota cars with Texas Crypto transponder (4D by Silca). Transponder key is stored in separated immobiliser unit marked “ECU IMMOBILIZER”. Remove immobiliser ECU from the car, open it and find 93LC66 SMD EEPROM.

How to Use Carprog Programming Keys for Toyota (5) How to Use Carprog Programming Keys for Toyota (5)



Use only original factory key. With Silca 4D transponder car will not start. Use A6 or A4 adapter and follow CarProg instruction to program transponder key.Short quartz resonator for in-circuit EEPROM programming or remove 93C66 from immobilizer board.



European Toyota immobiliser system used in small engines ECU like Yaris or Corolla.Remove motor ECU (made by Bosch) from car and open it. Find 25040 or 25020 EEPROM in SMD package.

Use A6 or A4 adapter and follow CarProg instruction to program transponder key. Short quartz resonator for in-circuit EEPROM programming or remove EEPROM from ECU board.

How to Use Carprog Programming Keys for Toyota (7) How to Use Carprog Programming Keys for Toyota (8) How to Use Carprog Programming Keys for Toyota (9)





European Toyota immobiliser system used from 2003 in small engines ECU like Yaris or Corolla. Used key is Texas 4C transponder.

How to Use Carprog Programming Keys for Toyota (9)

Remove motor ECU (made by Bosch) from car and open it. Find 95080 or 25080 EEPROM in SMD package.Use A6 or A4 adapter and follow CarProg instruction to program transponder key. Short quartz resonator for in-circuit EEPROM programming or remove EEPROM from ECU board.



European Toyota immobiliser system used in small engines ECU like 1.4 VVT Corolla.Remove motor ECU (made by Bosch) from car and open it. Find 24C02 EEPROM in SMD package.Use A6 or A4 adapter and follow CarProg instruction to program transponder key.

How to Use Carprog Programming Keys for Toyota (11)

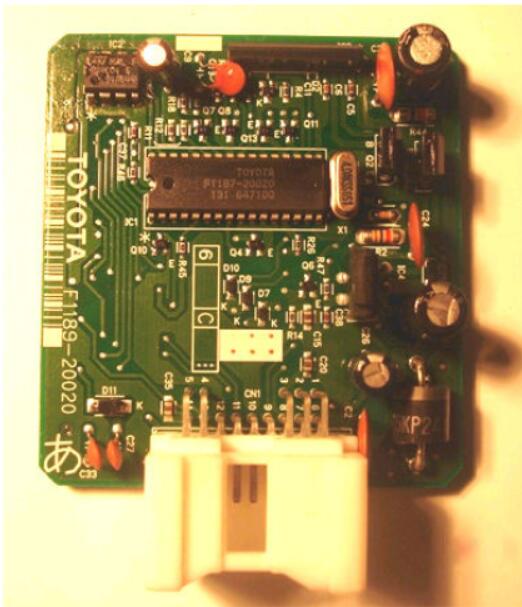

Older Toyota immobiliser system with separated immo box and Philips PCF7931 transponder. Immobiliser box are located under dash panel. Usually this is brown box marked “immobilizer” or “125 kHz”.

How to Use Carprog Programming Keys for Toyota (12) How to Use Carprog Programming Keys for Toyota (13)



Remove immobiliser ECU from the car and open it. Find 24C04 EEPROM in DIP package. Use A5 or A4 adapter and follow CarProg instruction to program transponder key. Short quartz resonator for in-circuit EEPROM programming or remove 24C04 from immobiliser board.

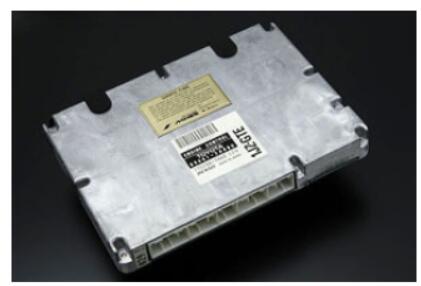

Toyota immobiliser system with transponder antenna and AMP unit on the ignition key and motor ECU. Used in 2001 – 2003 Toyota/Lexus cars.

How to Use Carprog Programming Keys for Toyota (14)

Transponder information is stored in motor ECU. Remove motor ECU from the car, open it and find 93C56 EEPROM marked IC601.Use A6 or A4 adapter and follow CarProg instruction to program transponder key. Remove 93C56 from immobiliser board.



Toyota Avensis or Corolla immobiliser system with transponder antenna and AMP unit (on the ignition key lock) and motor ECU. Transponder 4C. Are two very similar immobilizer types – with Texas transponder and with Texas Crypto transponder. Different is only processor inside immobiliser:

Texas 4C: (immobiliser unit: 89730-05010) – works only this system!

Texas Crypto with “Valeo” mark on the blade (immobiliser unit: 89780-02010; Key blank: 89785-02050, key with remote: 89070-05020)

How to Use Carprog Programming Keys for Toyota (15) How to Use Carprog Programming Keys for Toyota (16) How to Use Carprog Programming Keys for Toyota (17)



Use A9 adapter, connect like in picture ( pull up pins 1, 2 and 15 and connect white, blue, green, yellow, orange, black and red wires) and follow CarProg instruction to program transponder key.
