Here is the instruction show you guide on how to replace fuel tank breather filter element for Liebherr R9600 excavator.
Related Contents:
2026 LIEBHERR LiDIA Diagnostic Software
Make sure that the following preconditions are met:
The machine is safely parked on firm and level ground.
The Diesel engine is stopped.
Procedures:

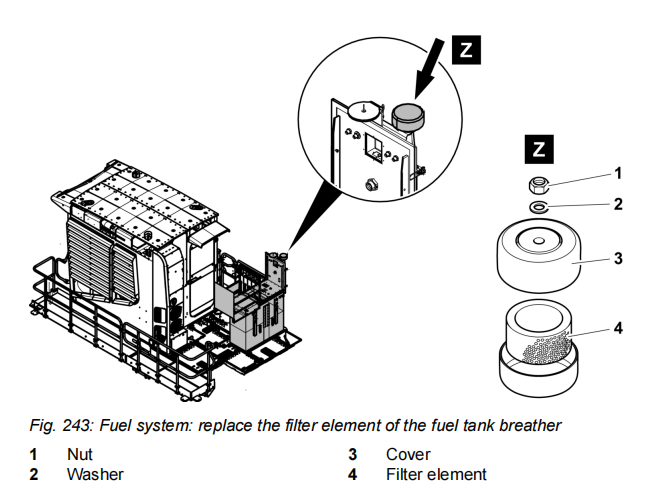

Remove the nut 1.
Remove the washer 2.
Remove the cover 3.
Remove the used filter element 4 and discard it.
Install the new filter element 4.
Install the cover 3 again.
Install the washer 2 again.
Install the nut 1 again.
