How to Decode Audi Concert AUZ2Z3 GRUNDIG Radio 24LC16

Here is a instruction on how to decode Audi Concert AUZ2Z3 GRUNDIG radio,the radio safe code is saved in 24LC16 EEPROM.

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-1

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-2

Preparations:

NYO 4.0 Calculator 2015 2017 Full Free Download

EEPROM Programmer (here TNM Universal programmer in the example)



Procedures:

Remove Audi Concert AUZ2Z3 radio,and disassemble to locate 24LC16 eeprom chip

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-3 How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-4



Remove 24LC16 eeprom and install it on TNM programmer

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-5

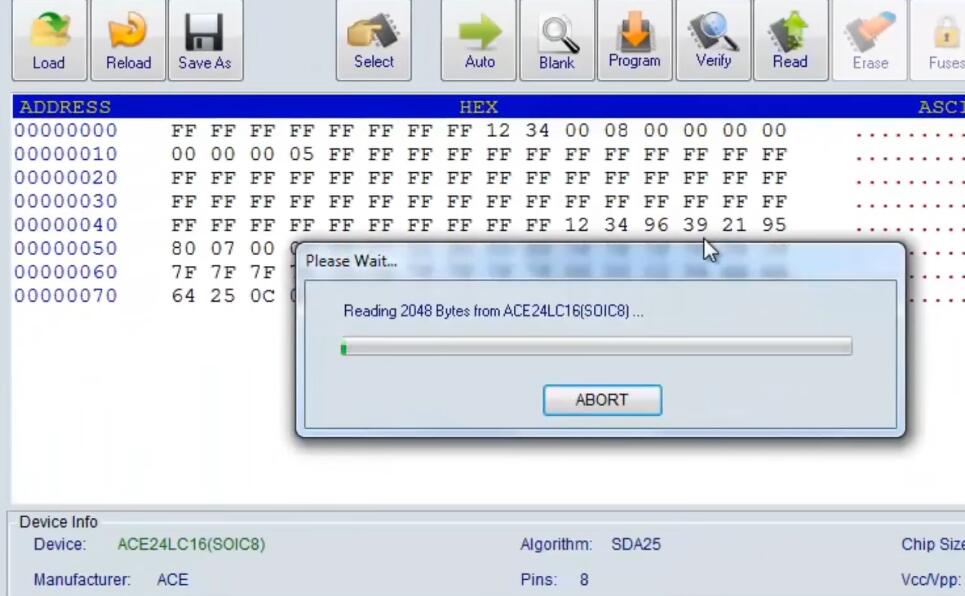

Read out 24LC16 eeprom bin data dump file,save it(here named it with audi 24lc16.bin) on your PC (recommend you to save it on D:\ drive,please do not save it on C:\ drive)

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-6

Run NYO4 Radio software

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-7

Select “Carradio”–>”GRUNDIG”–>”OEM”–>”AUDI”

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-8 How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-9 How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-10



Select “Audi Concert-4B0 035 186G-AUZ2Z3”

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-11 How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-12



Now select the bin file you saved just now “audi 24lc16.bin” on F:\ drive (not on C:\ drive)

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-13

Now it show you with the password “1582”

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-14

And click “Audi Concert-4B0 035 186G-AUZ2Z3” item and select “Comments” option to get detail

Enter code with key’s RDS+SCAN,after code with key’s 1-4 and confirm code with RDS+SCAN

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-15

Press RDS+SCAN

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-16

Enter code “1582”,then confirm with keys “RDS+SCAN”

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-17

Code 1582 is ok

How-to-Decode-Audi-Concert-AUZ2Z3-GRUNDIG-Radio-24LC16-18
