G-scan2 Initialize Adaptive Values for Citroen C3 2017

This function resets all adaptive values in an engine and it needs to be performed when sensor related repair or part replacement is done to an engine.



Procedures:

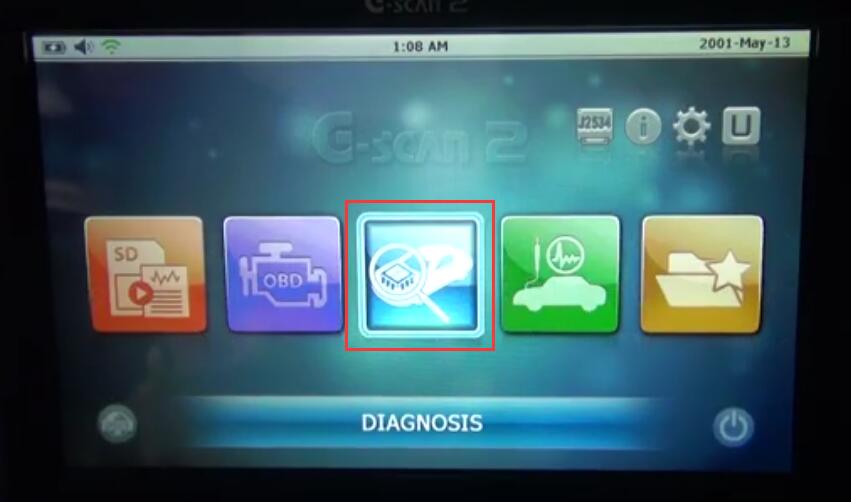

Connect G-scan2 to vehicle by OBD port,enter menu to select “DIAGNOSIS”

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (1)

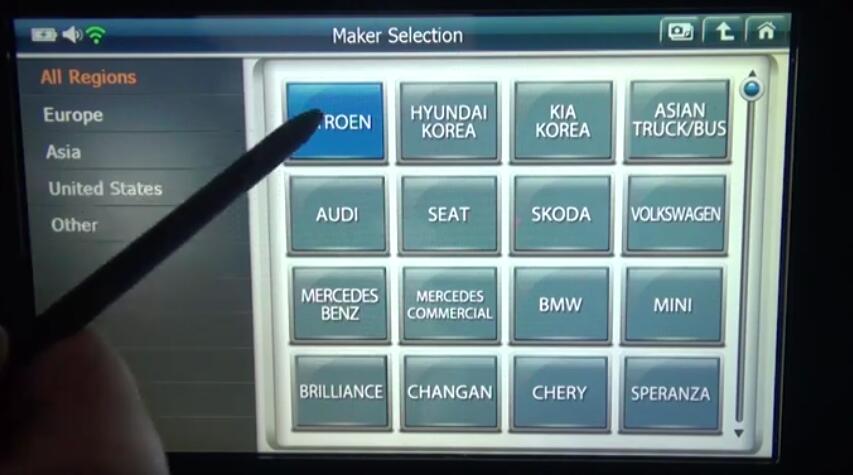

Select “CITROEN”

Note:Automatic selection is added in 2019 January update.

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (2)

Select “C3(A51)(2013-)”3

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (3)

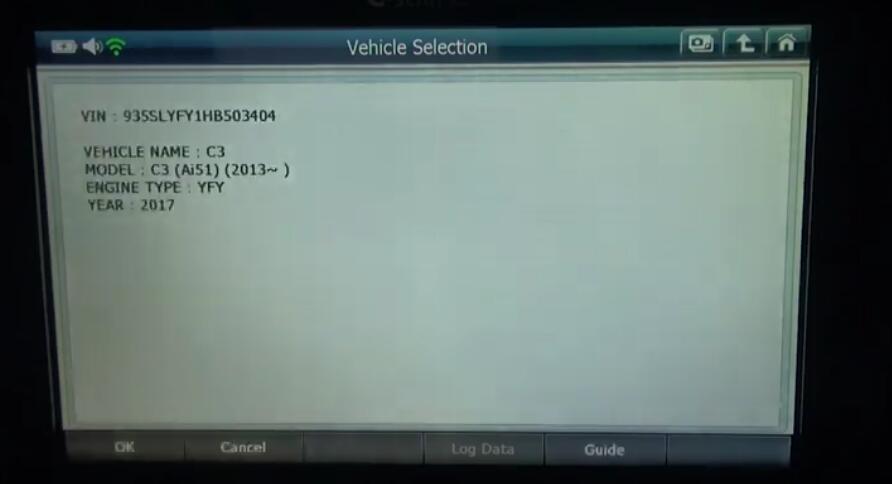

It show the vehicle information:VIN,MODEL,ENGINE and YEAR

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (4)

Select “Special Function”

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (5)

Select [Initialization of the autoadaptive values]

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (6)

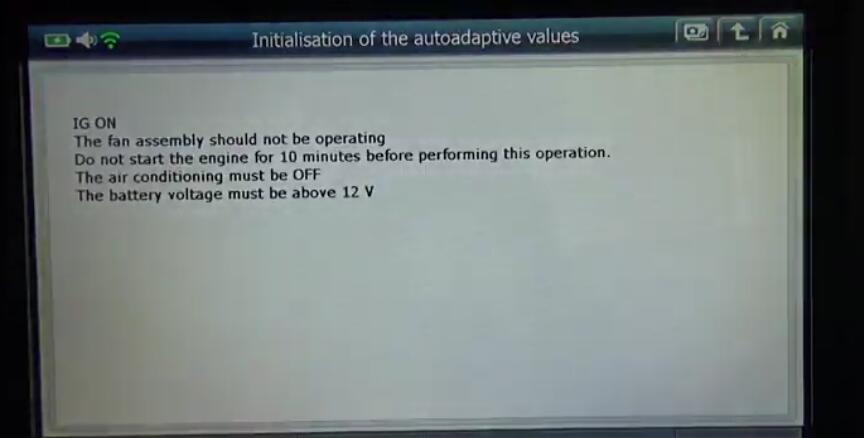

Make sure to meet the precondition described in the beginning of calibration:

IG ON

The fan assembly should not be operating

Do not start the engine for 10 minutes before performing this operation

The air conditioning must be OFF

The battery voltage must be above 12V

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (7)

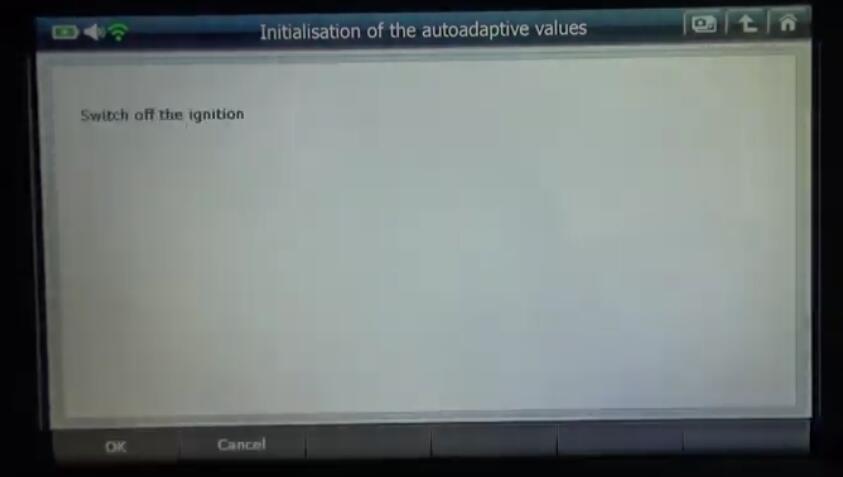

Switch off the ignition

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (8)

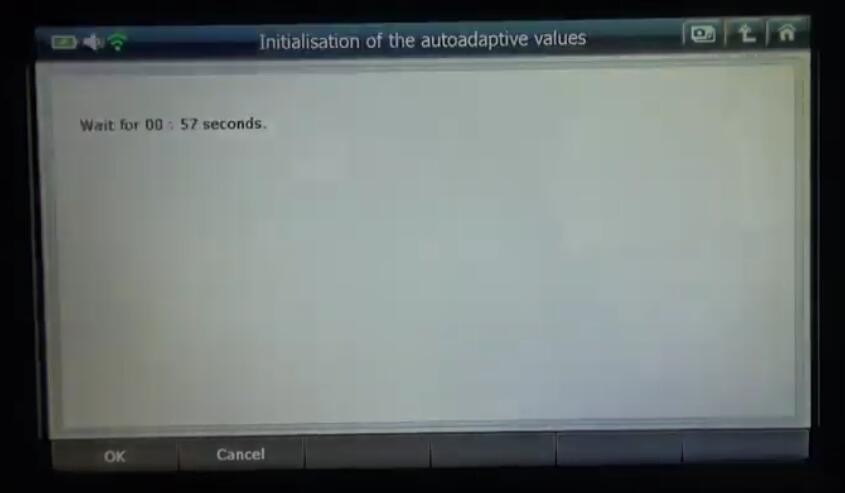

It will take about 1 minute to perform

Note:This part is edited for 5 times faster than original footage

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (9)

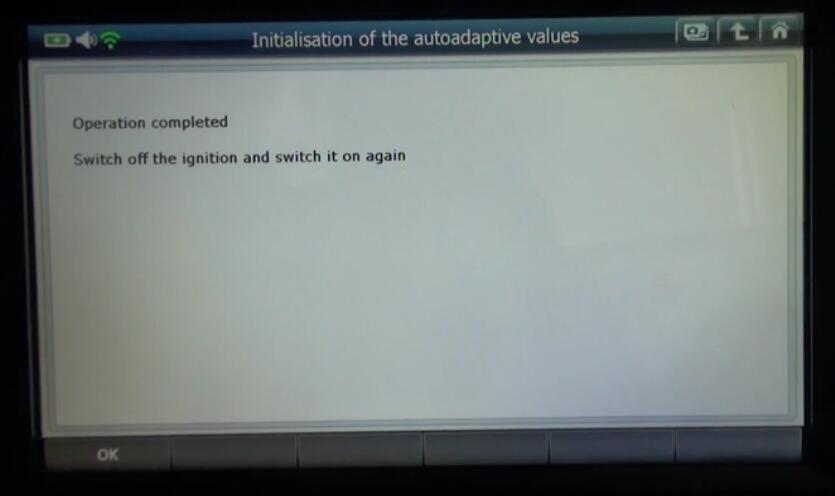

Operation completed

Switch off the ignition and switch it on again

G-scan2 Initialize Adaptive Values for Citroen C3 2017 (10)

Done!
