Bosch ECU EEPROM & Flash Data Backup & Restore by Launch X431

This instruction show you guide on how to use Launch X431 devices to backup and restore Bosch MED17.5.25 ECU data.



What You Need in This Guide:

LAUNCH X431 X-PROG3

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-1



Note:Please don’t charge the tablet when performing ECU data backup or restore,because charge may affect communication failed.And please make sure your Launch X431 pad have enough power.



Procedures:

Enter Launch X431 IMMO Pro menu to select “IMMO PROG”

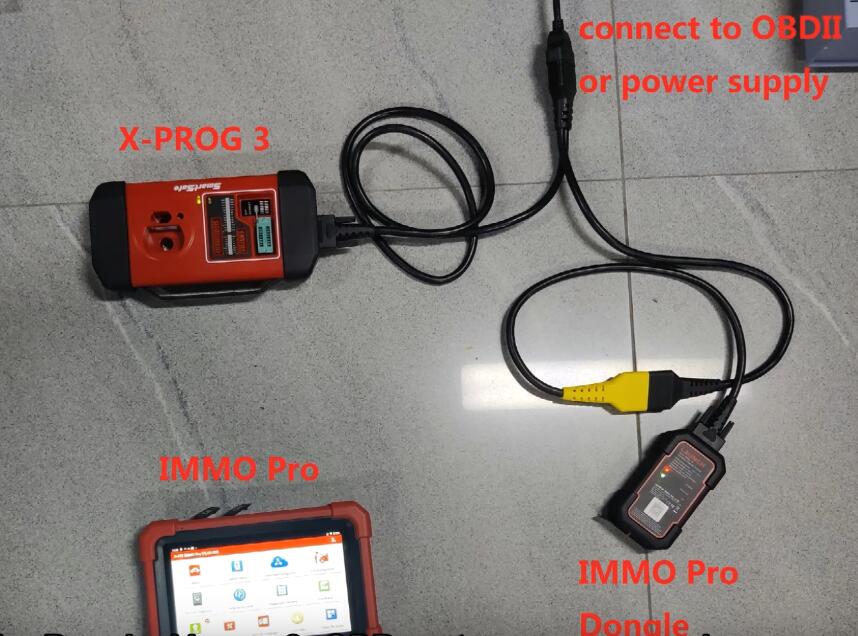

Connect the Dongle,X-PROG 3,OBD port or power supply

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-2

Press “OK” to continue

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-3

Select “Engine”–>”Bosch”–>”Search for ECU Model”

Input engine type information that marked on ECU:MED 17.5.25

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-4 Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-5

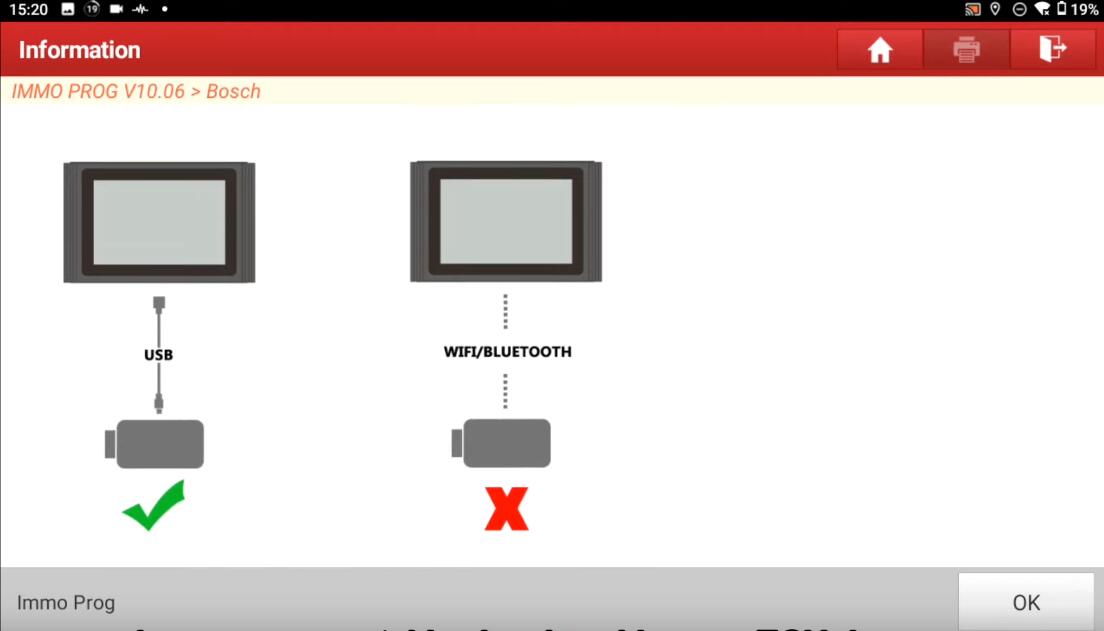

Recommend connect and communicate ECU by USB mode,because a unstable signal could cause ECU damage.

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-6

Turn on USB switch and connect by USB

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-7 Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-8



Go to “TC1782”–>”View Wiring Diagram”

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-9

Follow the diagram to use special cables to connect the ECU to X-PROG 3

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-10 Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-11

Back to Launch X431 PAD to select “Read Chip ID”

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-12

Chip ID reading successfully,it meaning connection build well

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-13

Choose backup EEPROM data

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-14

Reading EEPROM,progress

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-15

After reading successfully,input save file name

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-16

Data backup succeeded

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-17

After then just back to menu to select “Back Up FLASH Data”,the steps are same

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-18

And if you need restore,just press “Restore EEPROM Data”,and select the data file you want to restore.

Bosch-ECU-EEPROM-Flash-Data-Backup-Restore-by-Launch-X431-19

More test report about Launch X431 please check:Launch X431 Test report
